Hardware Views
Front View
The following view applies to SE408 series.
Table 4: Front View
No. Item
1 System LED panel
2 ETH port
3 LNK/ACT LED
4 Speed LED
SE408
1
1
2
2
3
3
4
4
10/100

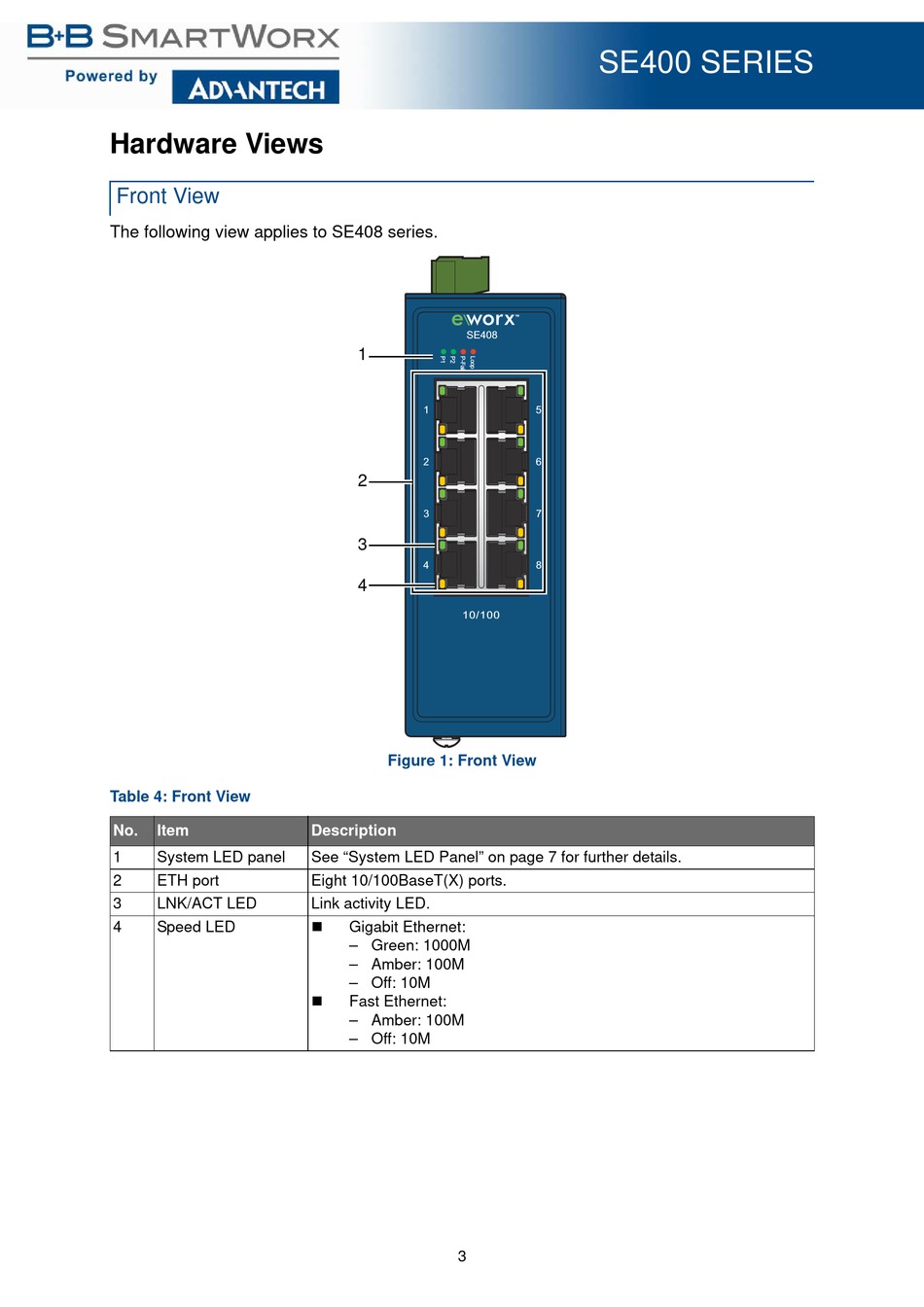

Figure 1: Front View
Description
See "System LED Panel" on page 7 for further details.
Eight 10/100BaseT(X) ports.
Link activity LED.

Gigabit Ethernet:
– Green: 1000M
– Amber: 100M
– Off: 10M

Fast Ethernet:
– Amber: 100M
– Off: 10M
3
SE400 SERIES
5
6
7
8
