Page 1: User Manual
ADAM-6521 Series Industrial Switches with 4 10/100 Mbps Ethernet Ports and 1 Fiber Port User Manual... - Page 2 No part of this man- ual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reli- able.
- Page 3 Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or...
- Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
-
Page 5: Table Of Contents
Contents Chapter 1 Overview ............2 Introduction ............... 2 Features ................3 Specifications ..............4 Ordering Information ............5 Chapter 2 Installation ............8 LED Indicators ..............8 Table 2.1:LED Indicator Legend ........8 Dimensions (units:mm) ........... 9 Figure 2.1:Bottom ............9 Figure 2.2:Top ............... - Page 6 ADAM-6521 Series User Manual...
- Page 7 Overview This chapter gives an overview of ADAM-6521 modules. Sections include: • Introduction • Features • Specifications • Ordering Information...
-
Page 8: Chapter 1 Overview

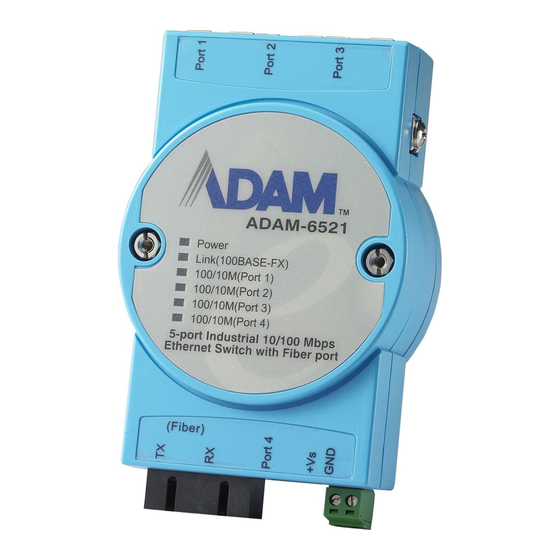

Chapter 1 Overview 1.1 Introduction The ADAM-6521 series consists of industrial-grade 10/100 Mbps Ether- net switches with fiber ports that make it possible to expand industrial networks fast and cost-effectively. In addition to four 10/100 Mbps Ether- net ports with RJ-45 connector, ADAM-6521 also provide one multi- mode fiber optic port, while ADAM-6521S provides one single-mode fiber optic port with a SC-type connector. -
Page 9: Features
Easy Troubleshooting There are 6 LED indicators supplied that aid troubleshooting for ADAM- 6521 modules. Each port has a pair of LEDs to indicate link status and port activity. This makes it easy to monitor collisions, link status, power failure and data reception for on-site diagnostics. 1.2 Features •... -
Page 10: Specifications
Dimensions (W x H x D) 70 x 112 x 27 mm Enclosure IP30, ABS+PC with solid mounting kits Mounting DIN 35 rail, stack, wall Protection ESD Protection 4,000 V (Ethernet) Surge Protection (EFT) 3000 V (Power) ADAM-6521 Series User Manual... -
Page 11: Ordering Information
Environment Operating Temperature -10~65°C (14~149°F), Stack : -10~60°C (14~140°F) Storage Temperature -20~80° C (-4~176°F) Operating Humidity 20 ~ 95% (non-condensing) Storage Humidity 0 ~ 95% (non-condensing) MTBF 1,150,000 hrs Certifications Safety UL 60950-1, CAN/CSA-C22.2 No.60950 U.S.A.: FCC Part 15 CISPR 22 EU: EN55011, EN55022 Class A, EN61000-3-2/3, EN55024 IEC61000-4-2/3/4/5/6/8/11... - Page 12 ADAM-6521 Series User Manual...
- Page 13 Installation In this chapter, you will be given an overview of the ADAM-6521 series hardware installation procedure. Sections include: • LED Indicators • Dimensions • Mounting the Module • Connections...
-
Page 14: Chapter 2 Installation
100/10M Green Connected to network (Ports 1 to 4) (Link) Green Flashing Networking is active (Link) Green Not connected to network (Link) Orange Link to 100 Mbps network (Speed) Orange Link to 10 Mbps network (Speed) ADAM-6521 Series User Manual... -
Page 15: Dimensions (Units:mm)
2.2 Dimensions (units:mm) Figure 2.1: Bottom Figure 2.2: Top Figure 2.3: Front Chapter 2... -
Page 16: Mounting The Module
ADAM-6521 modules can be attached to a wall using the included brack- ets. Each bracket comes with four screws; first attach the bracket to the bottom of the ADAM-6521 module. Next, screw the bracket to the wall. Figure 2.4: Wall Mounting ADAM-6521 Series User Manual... -
Page 17: Figure 2.5:Attaching Din Rail Bracket
DIN-rail Mounting You can mount ADAM-6521 modules on a standard 35 mm DIN-rail. First, use two screws to attach the DIN-rail bracket to the ADAM mod- ule. Because ADAM-6521 modules use special hex head slotted shoulder screws, the tops of the screws will be even with the front of the module. Snap the module onto the DIN-rail. -
Page 18: Connections
2km for multi-mode fiber, or 15km for single-mode fiber. Please use the dust cover that was shipped Note with your ADAM-6521 modules on the fiber-optic port if it is not being used. ADAM-6521 Series User Manual... -
Page 19: Power Connection
2.4.4 Power Connection You should take the following steps to connect ADAM-6521 modules to a power supply. Connect the power cable to a 2-pin connector. Connect the power cable to a power adapter. Figure 2.7: Power Wiring Chapter 2... - Page 20 ADAM-6521 Series User Manual...
