Description
The IS200 TX machine is an engraving machine.
It has a control panel with a L.C.D. screen connecting the software which is in the machine.
Files to be engraved are transferred from the computer to the machine by the intermediary of a cable which is
plugged into one of the two ports on the IS200 TX machine.
The actual engraving process is controlled by the spindle.
The object to be engraved is held in the vice (as standard) or by any other system recommended by
GRAVOGRAPH (consult your GRAVOGRAPH dealer for more information on systems available).
The IS200 TX machine has a maximum engraving surface area of 225x80 mm.

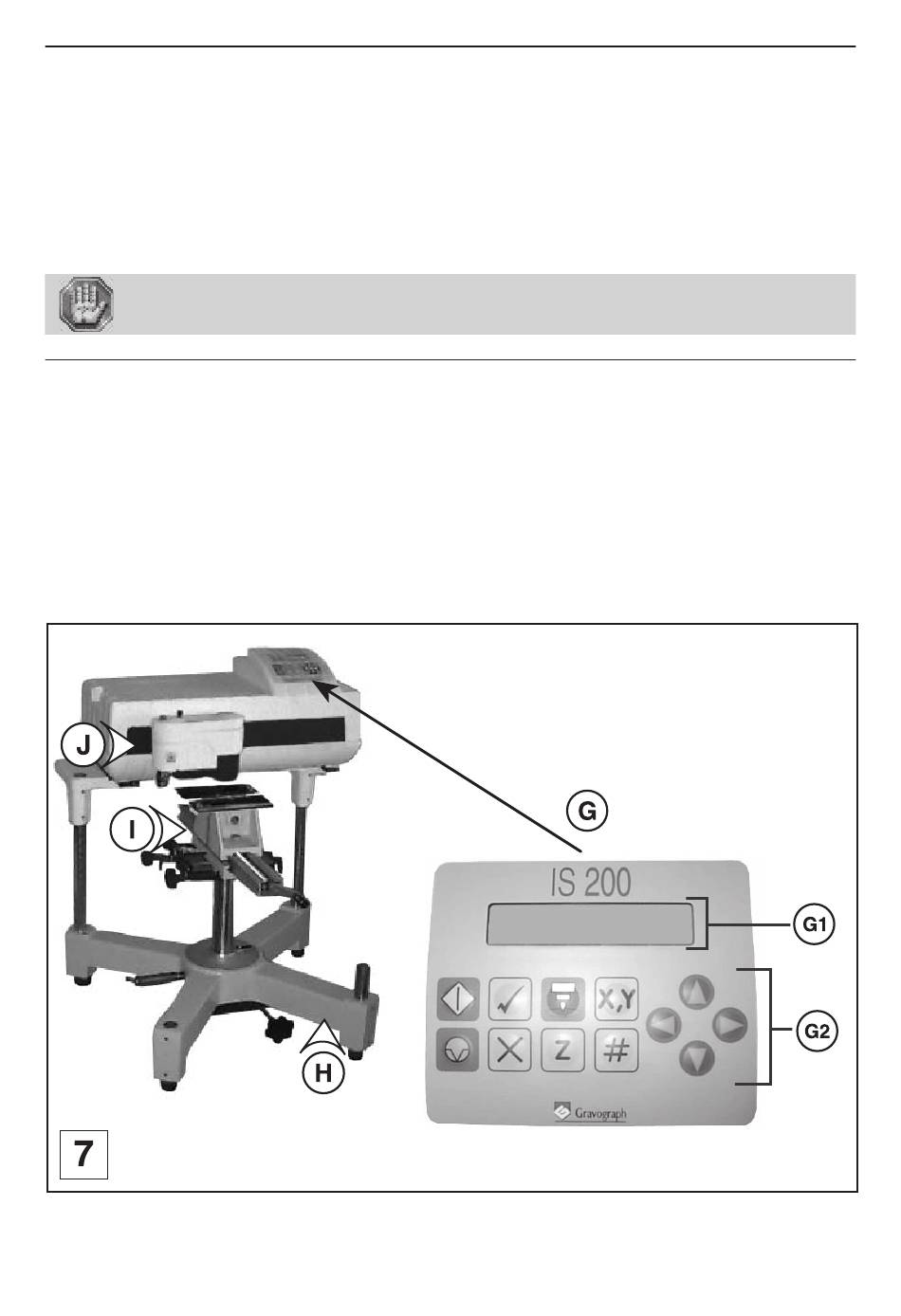

Front view of the machine
(pict 7)
G. Control panel
G1. L.C.D. screen
G2. 12-key control keyboard
H. TX base
I. TX vice with pair of jaws
J. Tool holder
First contact
IS200 TX machine . 9
