Installing

Physical installation and electrical installation (connections) must only be carried
out by an approved GRAVOGRAPH technician.
Before carrying out the following operations, make sure the machine is switched
off and unplugged, switch (M) to position 0.

Physical installation advice

• Put the Gravograph machine onto a stable flat, clean surface with mini. sizes of 510x470 mm.

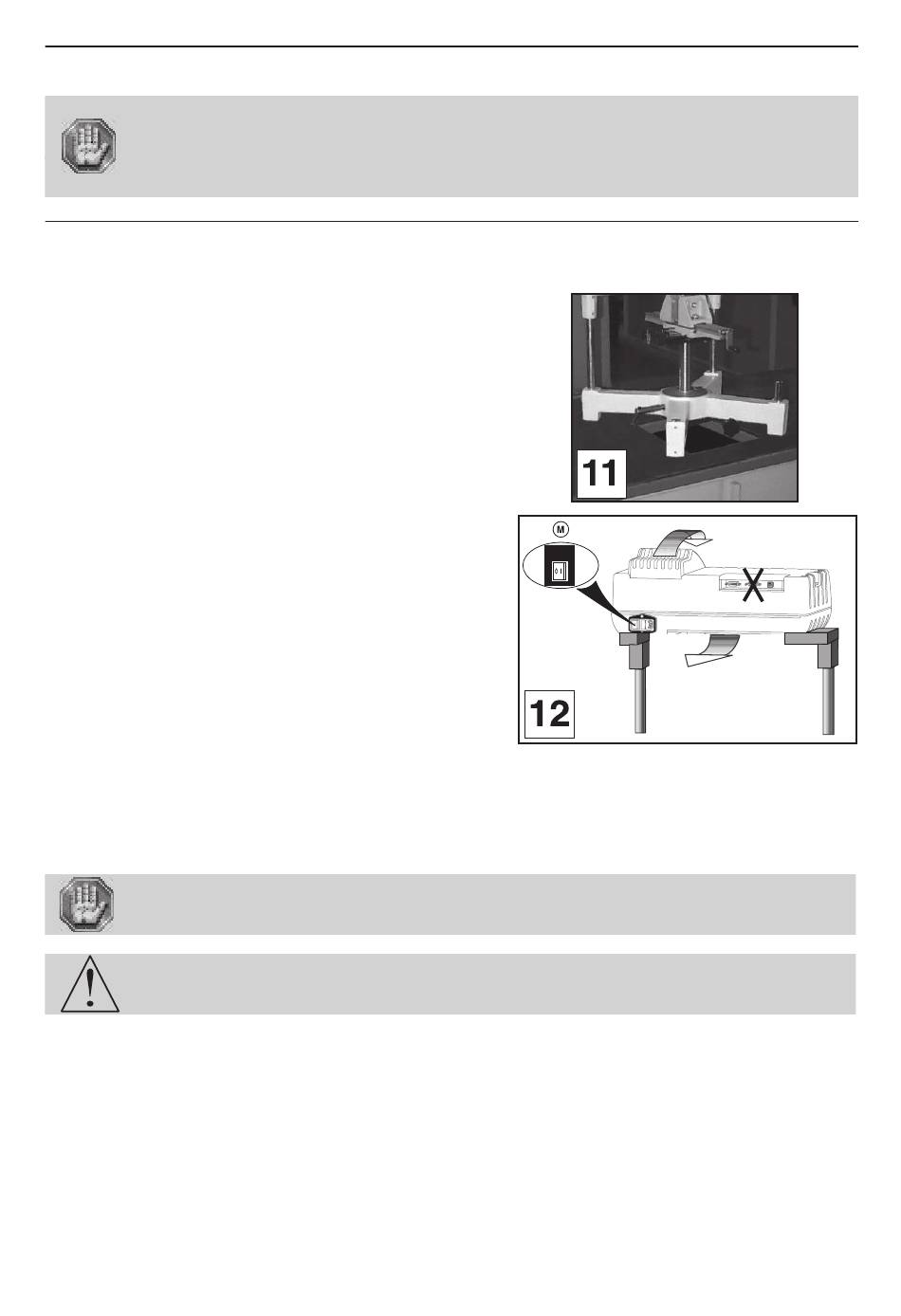

If you do not have the tubular TXL stand (optional
accessory) this plan should have a hole (photo 11)
enabling you to insert the protective housing for the
vice column (mounting instruction on the next page).
Make sure the back of the machine is well-ventilated,
do not put it too close to anything (wall, other machines
etc). (diagram 12).
• Normal lighting is sufficient to use the machine.
• Clear the work surface so that you can
- easily and quickly access all external parts of the machine,
- quickly access, in case of necessity, the stop switch ON/OFF (M) at the rear of the machine,
- make sure that all moving parts of the machine have enough room to move freely,
- avoid any accidental unplugging of the cables.
The machine's power supply cable being used as a sectionning device, it must
be easily accessible and the wall plug must be installed near the machine and
must also be easily accessible.
The connectors screws must be very tight to avoid accidental disconnection of
the cables while the machine is turned on as this could permanently damage the
electronic cards.
• Protect Gravograph equipment against:
- Moisture (rain, snow, condensation...),
- Heat (direct sunlight, heating...),
- Brusque temperature changes,
- Dust (exhaust pipe),
- Liquid splashes, spillages,
- Vibrations,
- Electric or electronic radiation.
First contact
IS200 TX machine . 13
