Positioning the TX vice

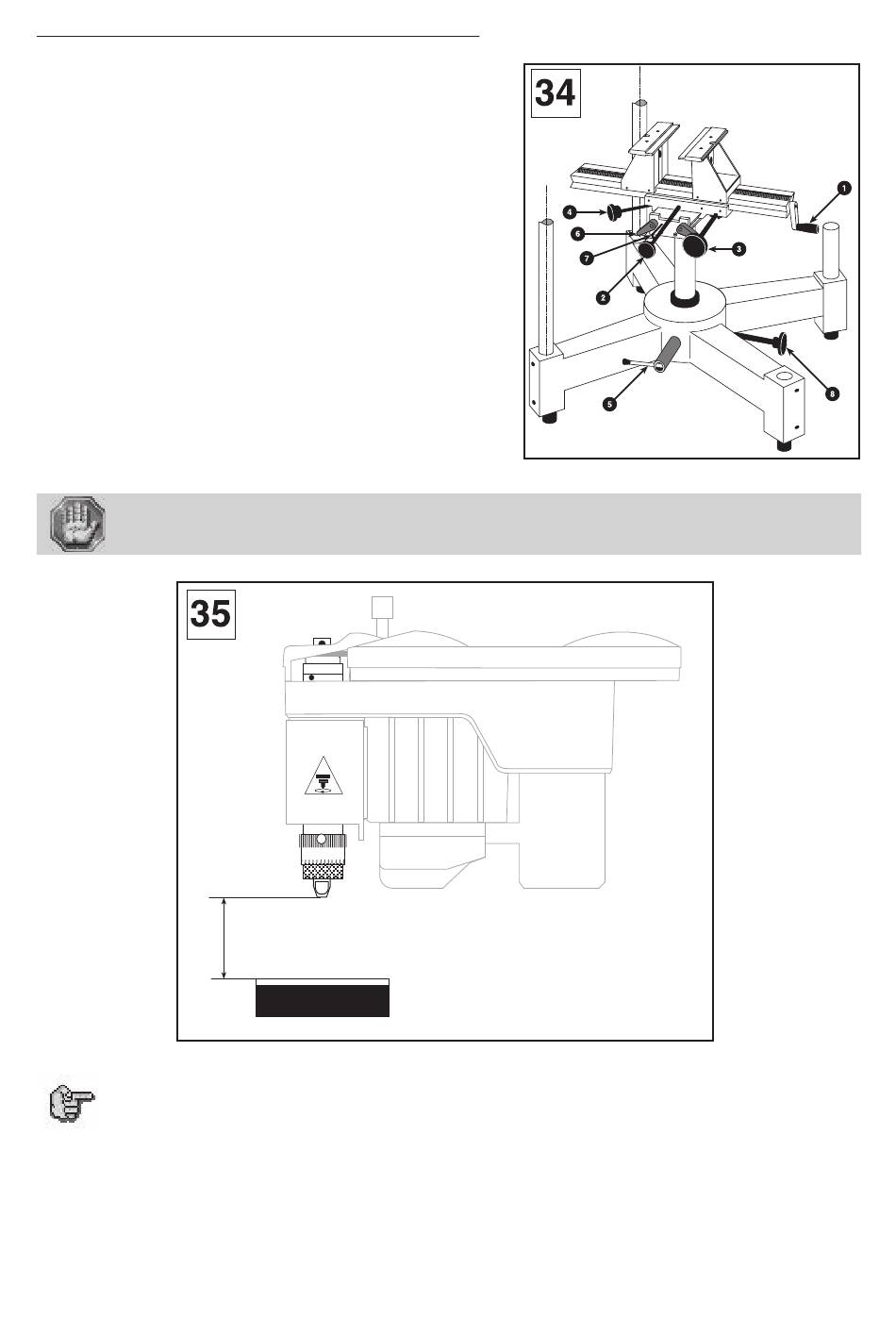

The vice is movable in all directions (diagram 34) :
Open - close :
Front - back :
Left - right :
Rotation :
Slent :
Up - down :
For our simple plate (diagram 35) :
8. Lift the plate up to less the 10 mm below the spindle with the button (8) after having loosened
the screw (5).
9. Using the screw (5) tighten well so that the vice remains in position during engraving.
First contact
Turn the handle (1).
Unscrew the button (2) and turn
the button (3).
Unscrew the button (4) and push
the vice.
Loosen the screw (5).
Unscrew the 4 bolts (6) and take
out the pin (7).
Loosen the screw (5) and turn the
button (8).
Always place the vice so that the object to be engraved is no more than 10 mm
below the IS200 TX spindle (diagram 35).
5 0 2
10 mm
maxi.
Objects to be engraved can either be held in the vice or in the jigs adapted to
the shape of the object.
IS200 TX machine . 25
