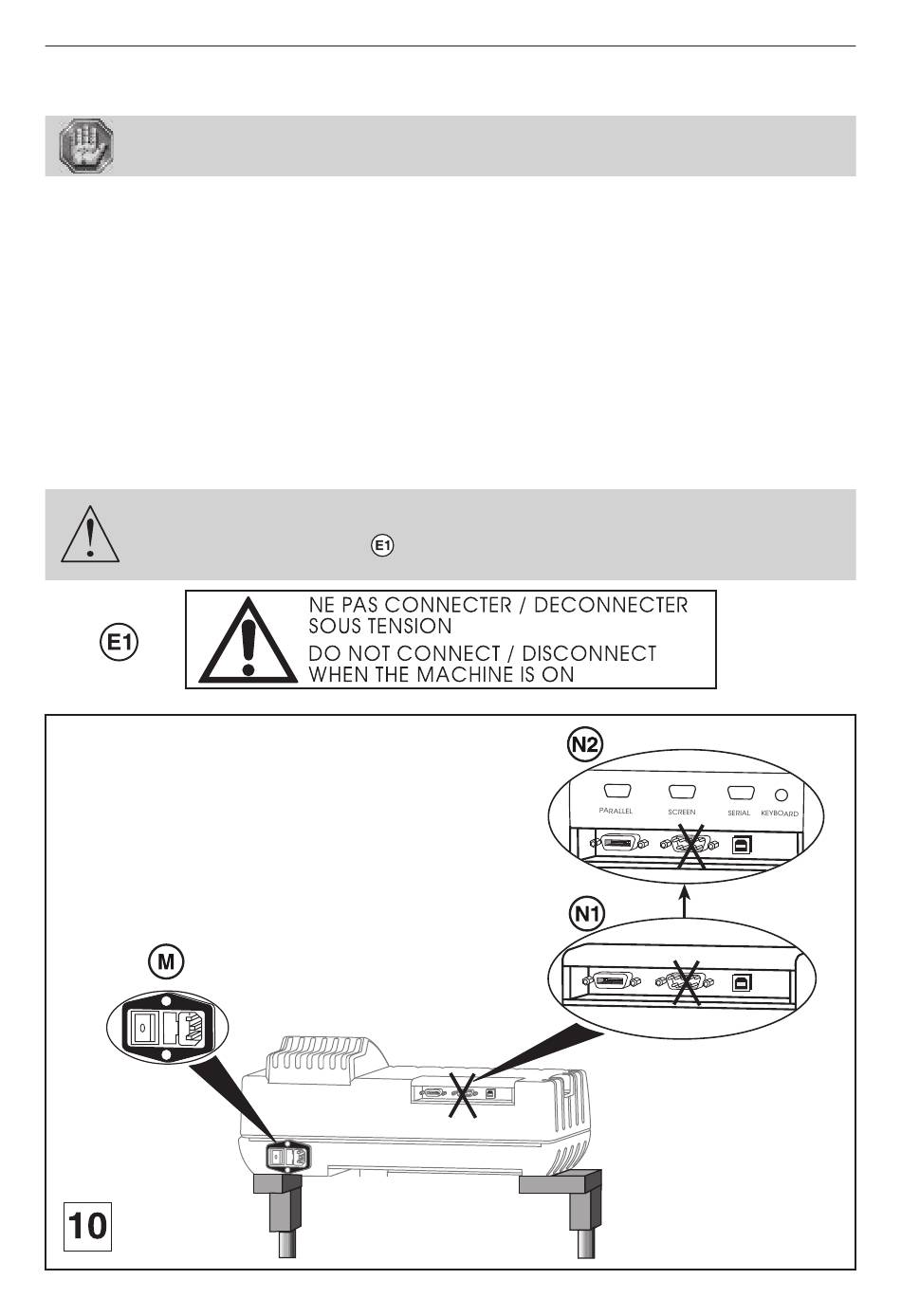

Rear view of the machine

(pict 10)
Each connection responds to one of the following security levels :
- Dangerous voltage.
- Very low security level.
M. Switch used as an immediate stop
- Switch I/0 (ON/OFF) used as an immediate stop
- Fuse drawer
- Plug - Dangerous voltage
N. Connection socket
N1 : Lid closed
N2 : Lid open :
- PARALLEL : Parallel port - Very low security level
- SCREEN : Do not use
- SERIAL : USB port - Very low security level
- KEYBOARD : Keyboard port - (not available) -
The machine must always be switched off before connecting or disconnecting a
cable, the cylinder attachment and the pen attachment (optional accessories),
as indicated on label
machine :
IS200 TX machine . 12
displayed on the back of the electronic box and of the
First contact
