Vice

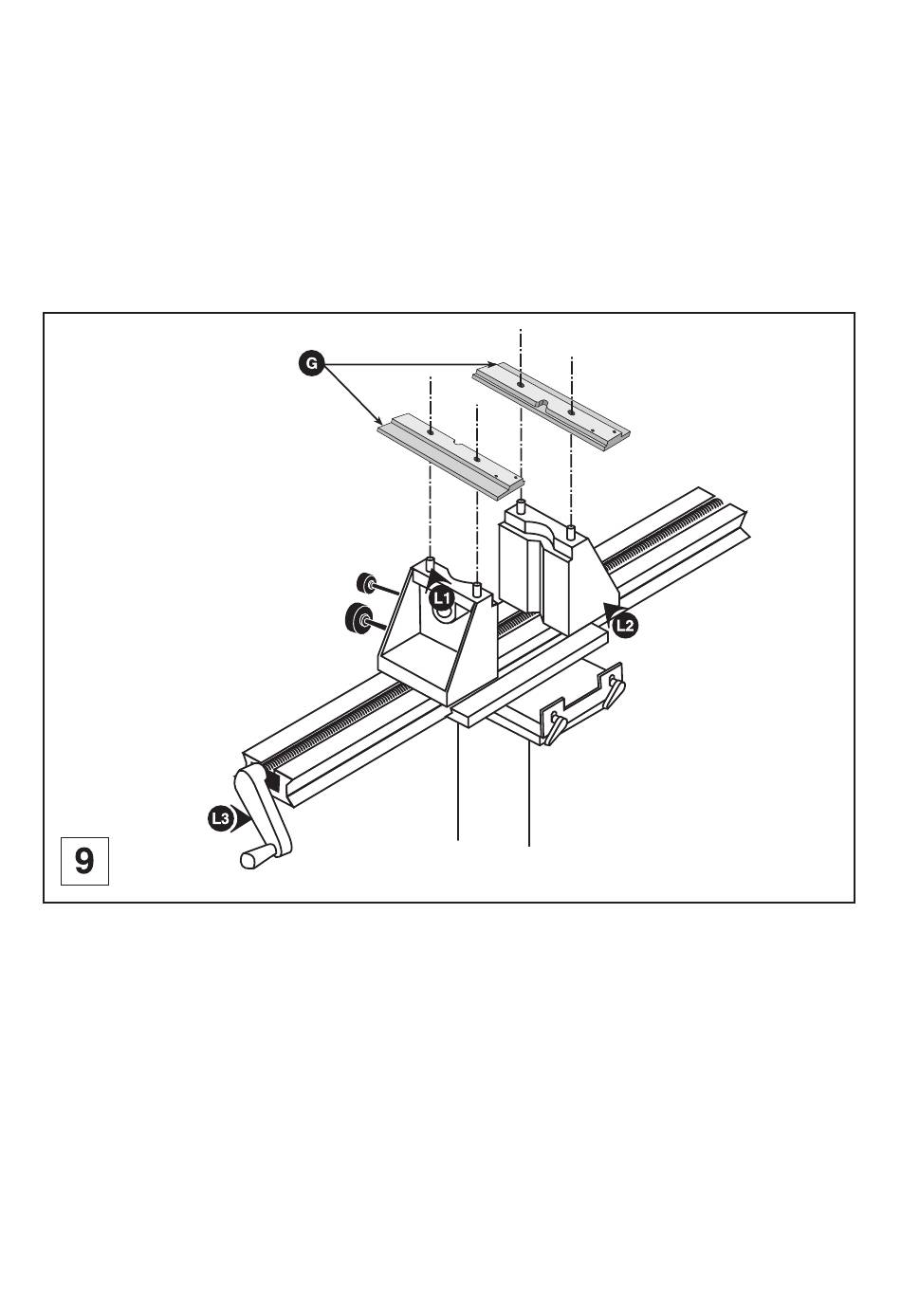

The vice holds the material to be engraved (pict 9).
The IS200 TX machine is supplied with a pair of jigs (G) which should be mounted onto the vice.
1.
Open the jaws (L2) by turning the tightening knob (L3) anti-clockwise.
Open them far enough so as to mount the jaws easily.
2.
Push the jigs (G) firmly onto the pins (L1) of the jaws (L2).
First contact
IS200 TX machine . 11
