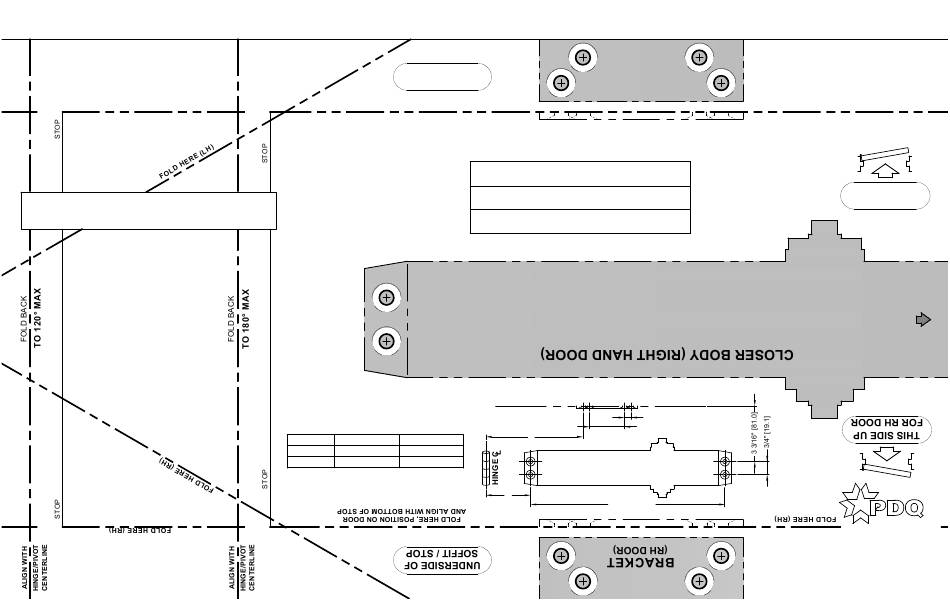

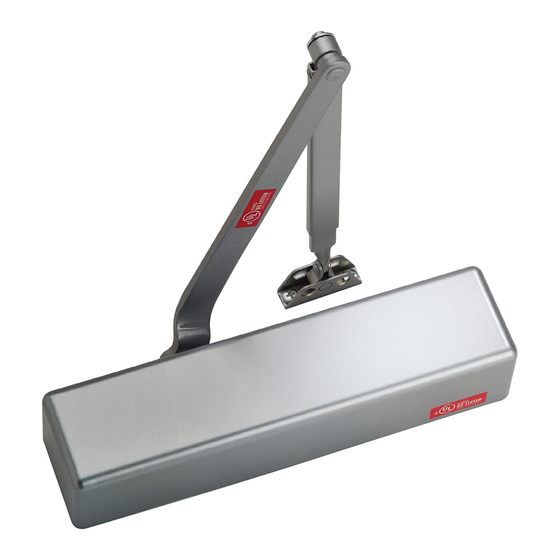

5100 DOOR CLOSER INSTRUCTION SHEET

PARALLEL ARM INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

FOLD HERE (LH)
FOLD AT HINGE/PIVOT
CENTERLINE FOR THE
REQUIRED OPENING ANGLE .
UNDERSIDE OF
SOFFIT / STOP
FOLD HERE, POSITION ON DOOR
AND ALIGN WITH BOTTOM OF STOP
OPENING
DIM A
DIM B
TO 120°
6-1/8" [155.6]
9-1/8" [231.8]
TO 180°
2-9/16" [65.1]
5-9/16" [141.3]
BRACKET
(LH DOOR)

MACHINE SCREWS:

USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4.0] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL
CLOSER BODY (LEFT HAND DOOR)
3/8" [9.5]
2" [50.8]
B
A
11 1/8" [282.6]
INSTRUCTION: 519353
REV. 2
FOLD HERE (LH)
SWEEP/ LATCH VALVES
THIS END OF CLOSER BODY
BOTTOM OF STOP
09-06-19
THIS SIDE UP
FOR LH DOOR
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
