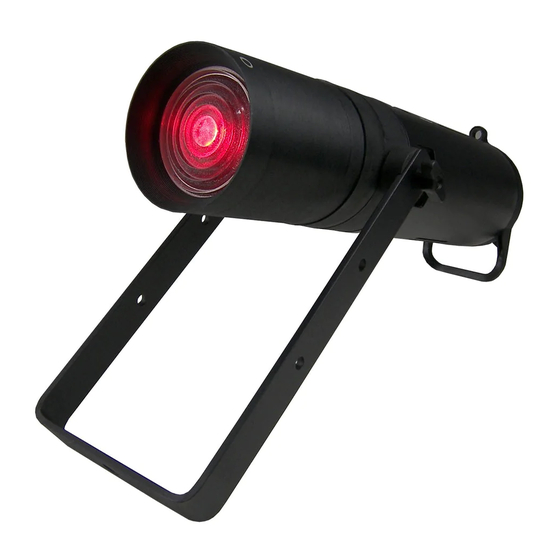

ZP200LE
200 W LED Fresnel/Profile Spot - Light Engine
USER MANUAL
For your safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: S109.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting ZP200LE
Summary of Contents for Event Lighting ZP200LE

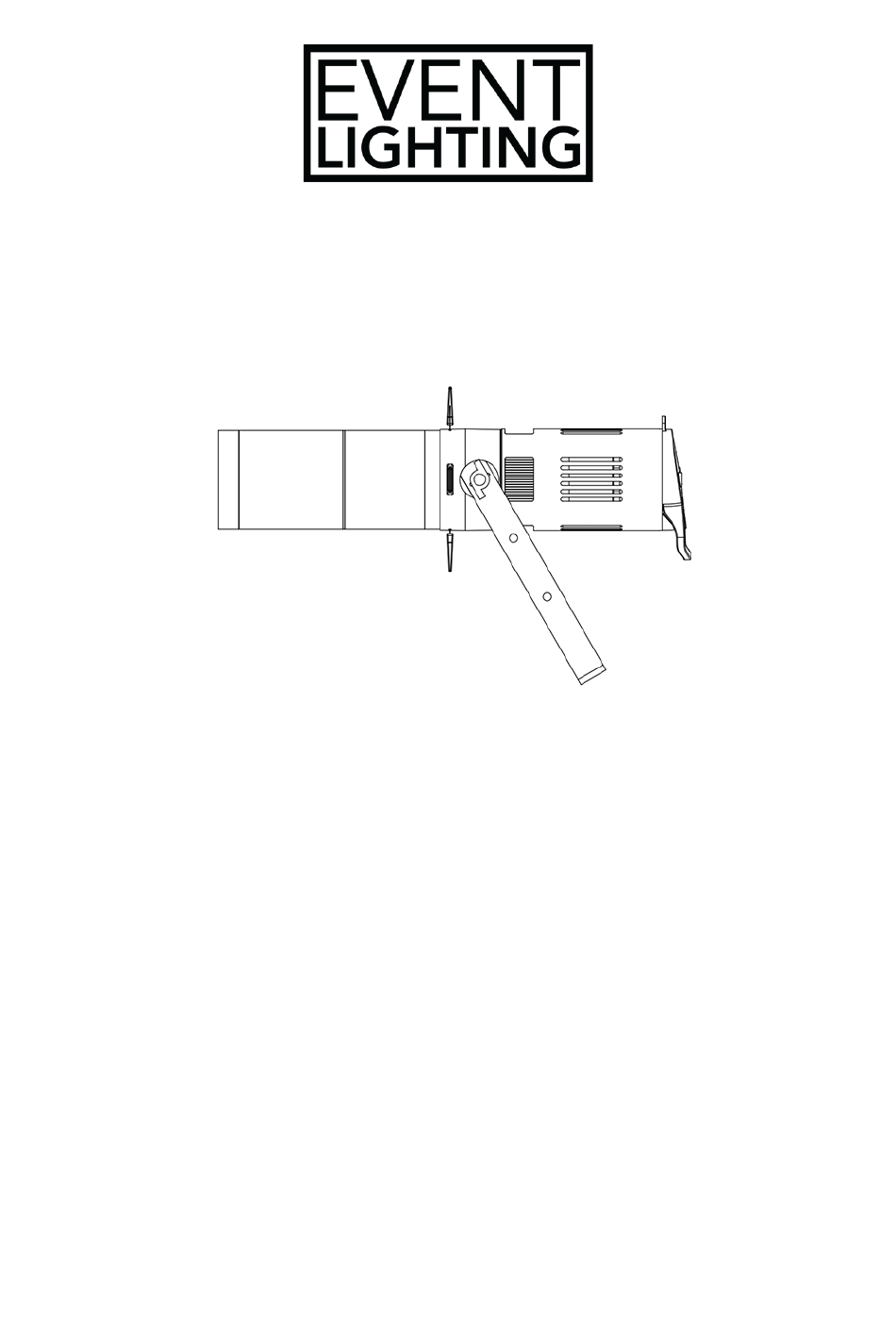

- Page 1 For your safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au Safety Instructions Warning • Do not open this device, there are no user serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit’s housing may become hot during and after operation. •...
- Page 3 www.event-lighting.com.au Dimensions Lux Chart...
- Page 4 www.event-lighting.com.au Control Board Operation 1 – Menu: Move up one level. 2 – Up: Move up one item. 3 – Down: Move down one item. 4 – Enter: Move down one level/confirm selection. Menu Level 1 Level 2 Value Information DMX address 1-512 Set DMX address...
- Page 5 www.event-lighting.com.au Refer to the DMX Chart below for more information on each mode. Set Manual Control Manual Control allows you to set Dimmer, Dimmer Fine and Strobe values through the control panel. Select “Dimmer” then press Enter. Select “DIM” for Dimmer, “D_F” for Dimmer Fine, or “STO” for Strobe, then press Enter. Use Up and Down to set the desired value.
- Page 6 Housing Materials: Aluminium, matte black finish • Cooling: Sensor Thermostat Controlled Variable Speed Fan • Net Weight: LED Engine 9 kg Profile Lens: 1.9 kg Fresnel Lens: 0.9 kg Cyc Lens: 0.4 kg Warranty Please refer to your local dealer or contact Event Lighting.
