G200C01FC-GAT

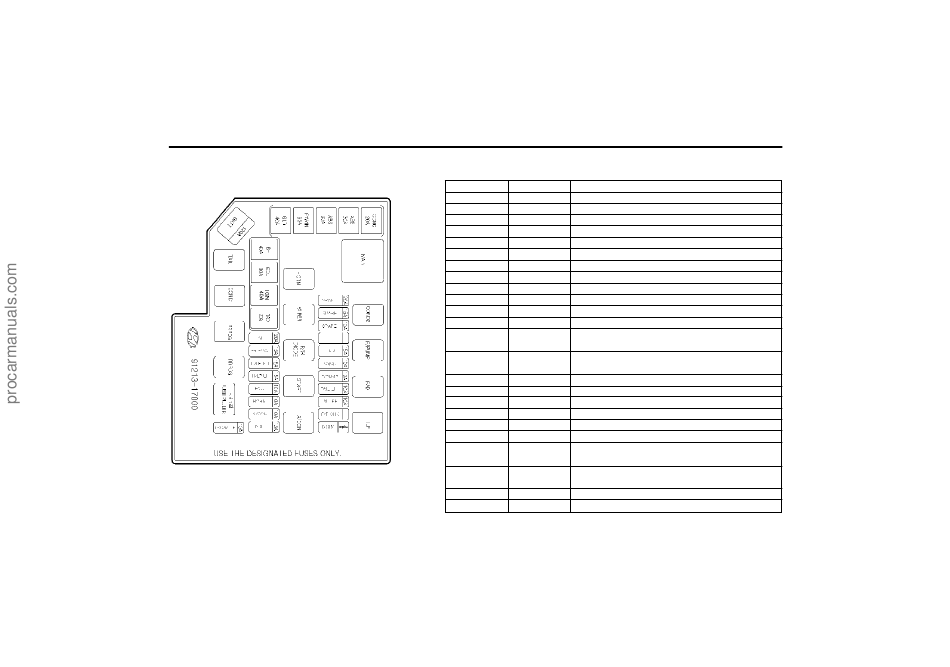

FUSE PANEL DESCRIPTION
Engine Compartment (GASOLINE)
NOTE:
Not all fuse panel descriptions in this manual may be applicable
to your vehicle. It is accurate at the time of printing. When you
inspect the fuse box on your vehicle, refer to the fuse box label.
OWNER MAINTENANCE
DESCRIPTION FUSE RATING PROTECTED COMPONENTS
ALT 120A Generator
B+ 40A (A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse
ECU 30A Generator, Engine control relay, ECM
RAD 20A Radiator fan relay
IGN 40A Start relay, Ignition switch
BLR 40A Blower relay
P/WIN 30A Power window relay
COND 20A Condenser fan relay #1
ABS 30A ABS control module, ABS bleeding connector
ABS 30A ABS control module, ABS bleeding connector
F/PUMP 10A Fuel pump relay
INJ 15A Injector, lgnition coil
MAP sensor, Oxygen sensor, CP sensor,
SNSR 10A
Knock sensor, Throttle position sensor
Audio, Room lamp, Overhead console lamp,
ROOM LP 10A
lnstrument cluster
DRL 15A DRL control module
Horn relay
HORN 10A
A/CON 10A A/C relay
FR FOG 15A Front fog lamp relay
ECU 10A ECM, TCM
LP 20A Tail lamp relay
Left rear combi lamp, Left position lamp,
TAIL LH 10A
HFC4004
Left License lamp
Right rear combi lamp, Right position lamp,
TAIL RH 10A
Right License lamp
H/LP LH 15A Left head lamp
Right head lamp, (H/LP IND) Fuse
H/LP RH 15A
6-23
