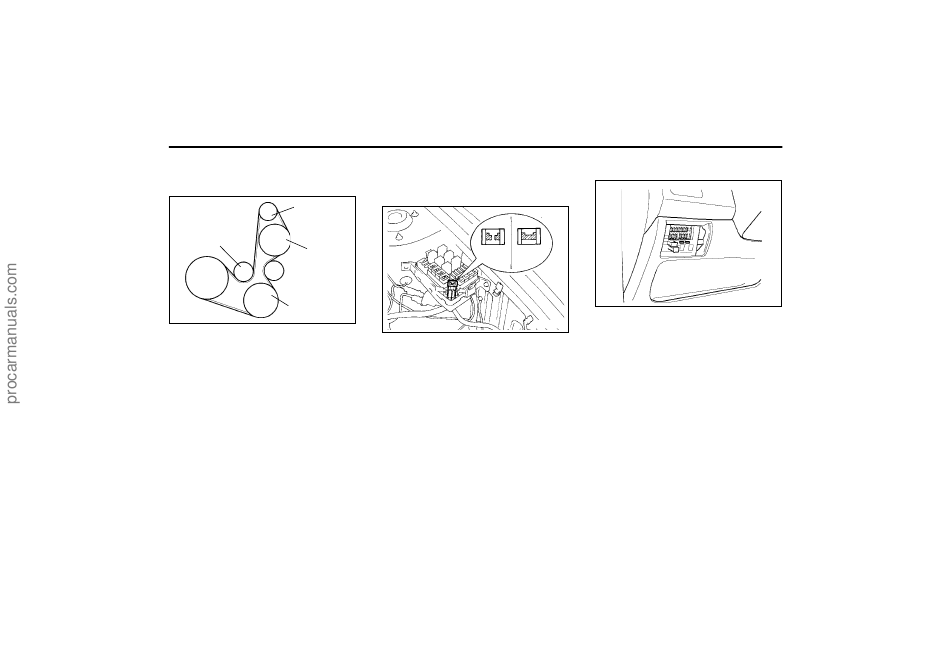

CHECKING DRIVE BELTS
(Diesel Engine)
Alternator
Alternator Power
steering
pump
A/C comp.
G190B01O
At the scheduled maintenance inspection, belts
should be examined for cracks, wear, fraying or
other evidence of deterioration and replaced if
necessary.
Belt routing should also be checked to be sure
there is no interference between the belts and
other parts of the engine.
DO-IT-YOURSELF MAINTENANCE
G200A01A-AAT
CHECKING AND REPLACING
FUSES
Replacing a Fusible Link
Bad Good
AS60310A
A fusible link will melt if the electrical circuits
from the battery are ever overloaded, thus pre-
venting damage to the entire wiring harness.
(This could be caused by a short in the system
drawing too much current.) If this ever happens,
have a Hyundai dealer determine the cause,
repair the system and replace the fusible link.
The fusible links are located in a fuse box for
easy inspection.
CAUTION:
When replacing a fusible link, never use
anything but a new fusible link with the
same or lower amperage rating. Never use a
piece of wire or a higher-rated fusible link.
This could result in serious damage and
create a fire hazard.
G200B01E-AAT
Replacing Accessory Fuse
HFC4010
The fuse box for the lights and other electrical
accessories will be found in the backside of multi
box located in the left side of driver. Inside the box
you will find a list showing the circuits protected
by each fuse.
If any of your car's lights or other electrical
accessories stop working, a blown fuse could
be the reason. If the fuse has burned out, you
will see that the metal strip inside the fuse has
burned through. If you suspect a blown fuse,
follow this procedure:
1. Turn off the ignition and all other switches.
2. Open the fuse box and examine each fuse.
Remove each fuse by pulling it toward you
(a small "fuse puller" tool is contained in the
fuse box to simplify this operation).
3. Be sure to check all other fuses even if you
find one that appears to have burned out.
