Hyundai Matrix 2003 Owner's Manual page 150

G140D01S-GAT

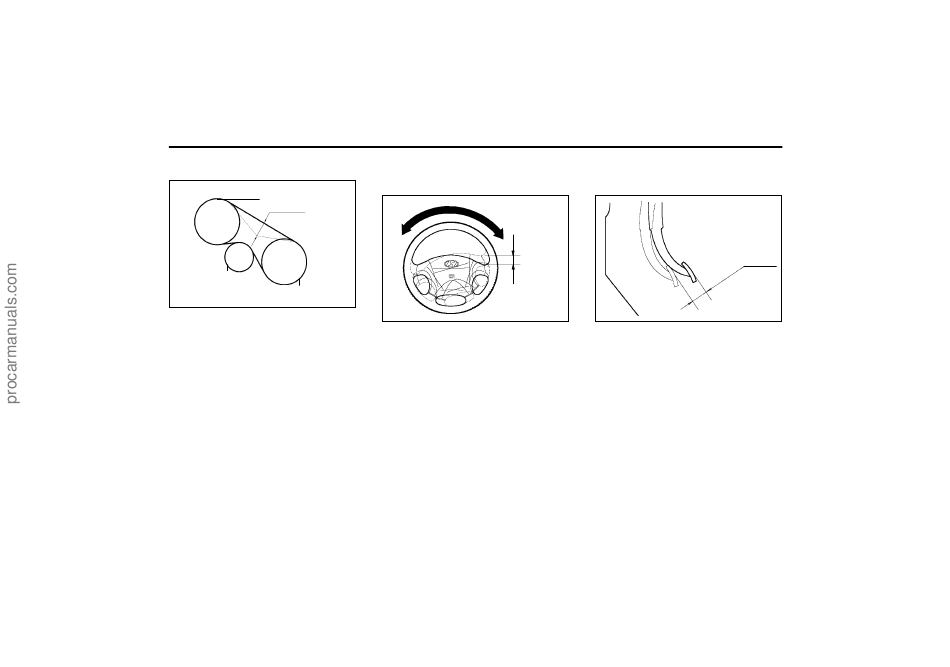

Checking the Compressor Drive Belt
A/C
8mm(0.315 in.)
TENSION PULLEY
CRANK PULLEY
G140D01A
When the air conditioning is being used regular-
ly, the compressor drive belt tension should be
checked at least once a month.
To check the drive belt tension, press down on
the belt halfway between the engine crankshaft
and compressor pulleys. Pressing with your
finger, you should not be able to deflect this belt
anymore than 8.0 mm. If you have the instru-
ments to check it with a force of 98N (22 lb.),
the deflection should be approx. 8.0 mm (0.315
in.). If the belt is too loose, have it adjusted by
your Hyundai dealer.
DO-IT-YOURSELF MAINTENANCE
G150A01A-GAT
CHECKING STEERING WHEEL
FREEPLAY
30 mm
(1.18 in.)
G150A01FC
To check the steering wheel freeplay, stop the
car with the wheels pointed straight ahead and
gently move the steering wheel back and forth.
Use very light finger pressure and be sensitive
to changes in resistance that mark the limits of
the freeplay. If the freeplay is greater than
specified, have it inspected by your Hyundai
dealer and adjusted or repaired if necessary.
G160A01A-GAT
CHECKING CLUTCH PEDAL
FREE-PLAY
6 ~ 13 mm
(0.24 ~ 0.51 in.)
G160A01E
With the engine off, press lightly on the clutch
pedal until you feel a change in resistance. This
is the clutch pedal freeplay. The freeplay should
be within the limits specified in the illustration. If
it is not, have it inspected by your Hyundai
dealer and adjusted or repaired if necessary.
6-17
