Physical Description

Refer to the figures below and on the following page. The unit is housed
in a black metal enclosure with labeling and controls on the front surface.
The bottom edges of the cover/faceplate extend to form two flanges with
screw slots for convenient mounting on any flat surface. Interface
connectors are mounted on opposite ends of the unit. The two 4-pin
RJ-11 connectors on the "top" end, labeled 1 and 2, provide connection
to two shade motor controller circuits. A 4-pin male Cresnet network port
on the "bottom" end, labeled 24 Y Z G, provides operating power and
communications to/from the unit.
NOTE: Power for the shade motor is independent of the Cresnet system.

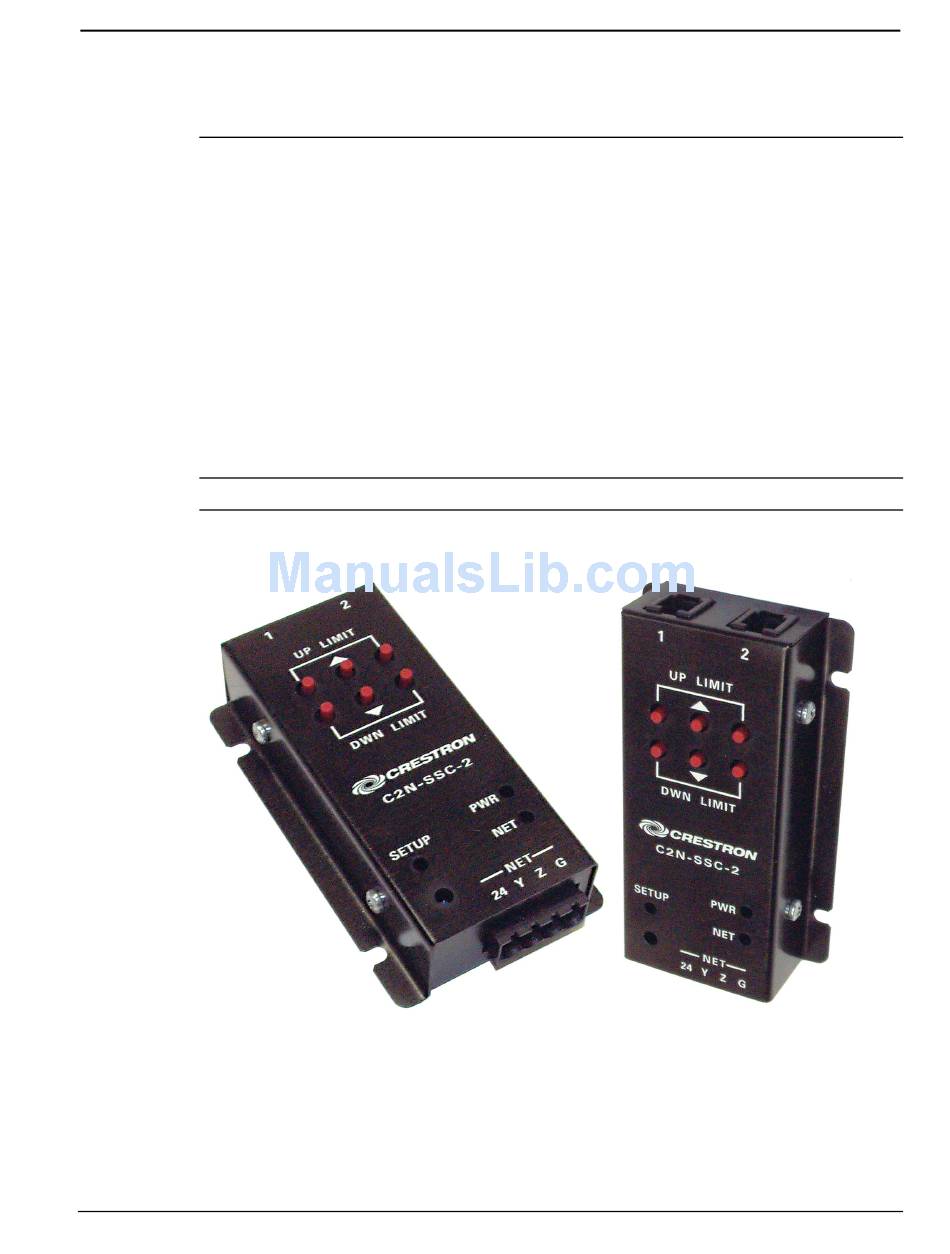

Physical Views
