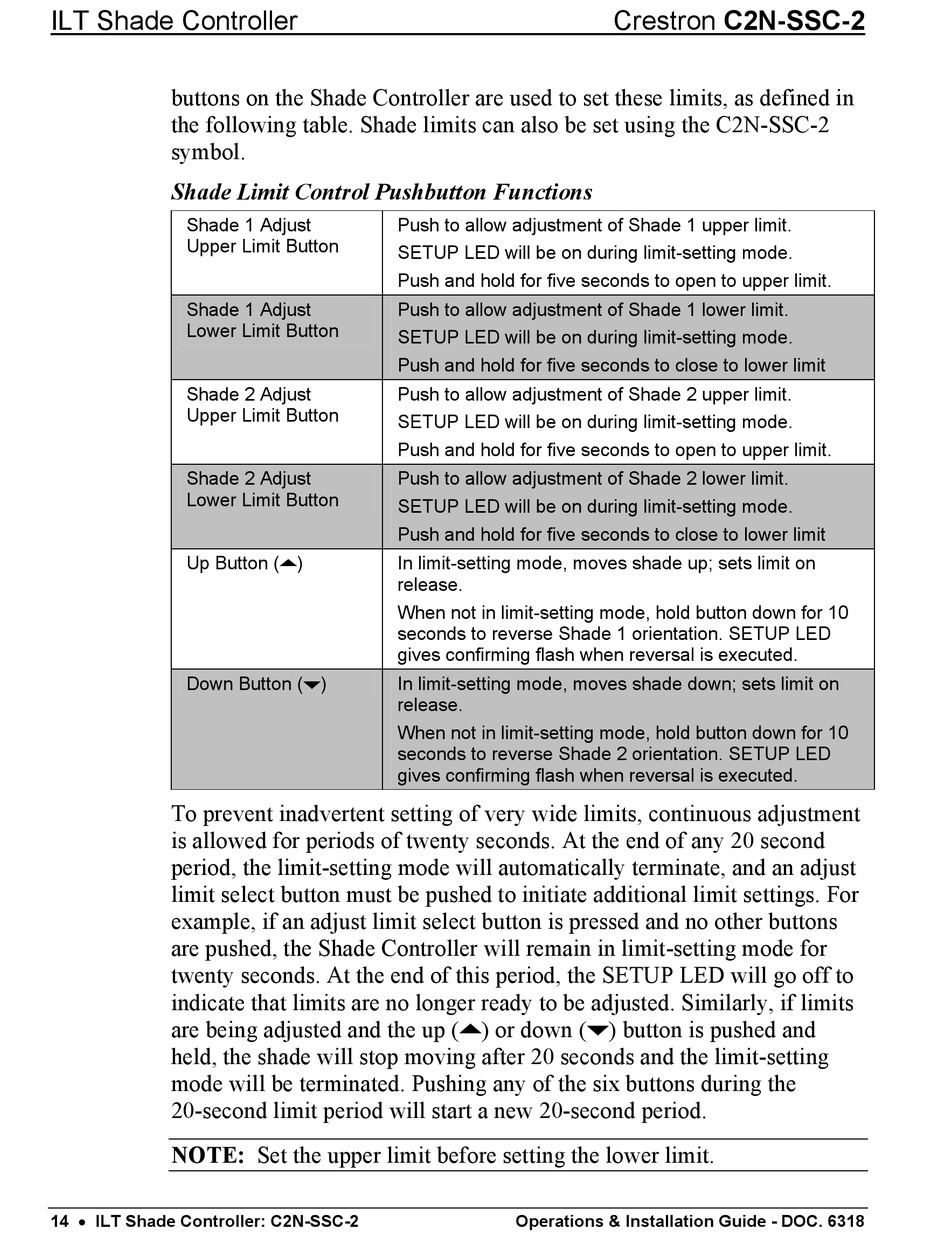

Crestron C2N-SSC-2 Operations & Installation Manual page 18

ILT Shade Controller
buttons on the Shade Controller are used to set these limits, as defined in
the following table. Shade limits can also be set using the C2N-SSC-2
symbol.
Shade Limit Control Pushbutton Functions
Shade 1 Adjust
Upper Limit Button
Shade 1 Adjust
Lower Limit Button
Shade 2 Adjust
Upper Limit Button
Shade 2 Adjust
Lower Limit Button
Up Button (K)
Down Button (J)
To prevent inadvertent setting of very wide limits, continuous adjustment
is allowed for periods of twenty seconds. At the end of any 20 second
period, the limit-setting mode will automatically terminate, and an adjust
limit select button must be pushed to initiate additional limit settings. For
example, if an adjust limit select button is pressed and no other buttons
are pushed, the Shade Controller will remain in limit-setting mode for
twenty seconds. At the end of this period, the SETUP LED will go off to
indicate that limits are no longer ready to be adjusted. Similarly, if limits
are being adjusted and the up (K) or down (j) button is pushed and
held, the shade will stop moving after 20 seconds and the limit-setting
mode will be terminated. Pushing any of the six buttons during the
20-second limit period will start a new 20-second period.
NOTE: Set the upper limit before setting the lower limit.
14 • ILT Shade Controller: C2N-SSC-2
Push to allow adjustment of Shade 1 upper limit.
SETUP LED will be on during limit-setting mode.
Push and hold for five seconds to open to upper limit.
Push to allow adjustment of Shade 1 lower limit.
SETUP LED will be on during limit-setting mode.
Push and hold for five seconds to close to lower limit
Push to allow adjustment of Shade 2 upper limit.
SETUP LED will be on during limit-setting mode.
Push and hold for five seconds to open to upper limit.
Push to allow adjustment of Shade 2 lower limit.
SETUP LED will be on during limit-setting mode.
Push and hold for five seconds to close to lower limit
In limit-setting mode, moves shade up; sets limit on
release.
When not in limit-setting mode, hold button down for 10
seconds to reverse Shade 1 orientation. SETUP LED
gives confirming flash when reversal is executed.
In limit-setting mode, moves shade down; sets limit on
release.
When not in limit-setting mode, hold button down for 10
seconds to reverse Shade 2 orientation. SETUP LED
gives confirming flash when reversal is executed.
