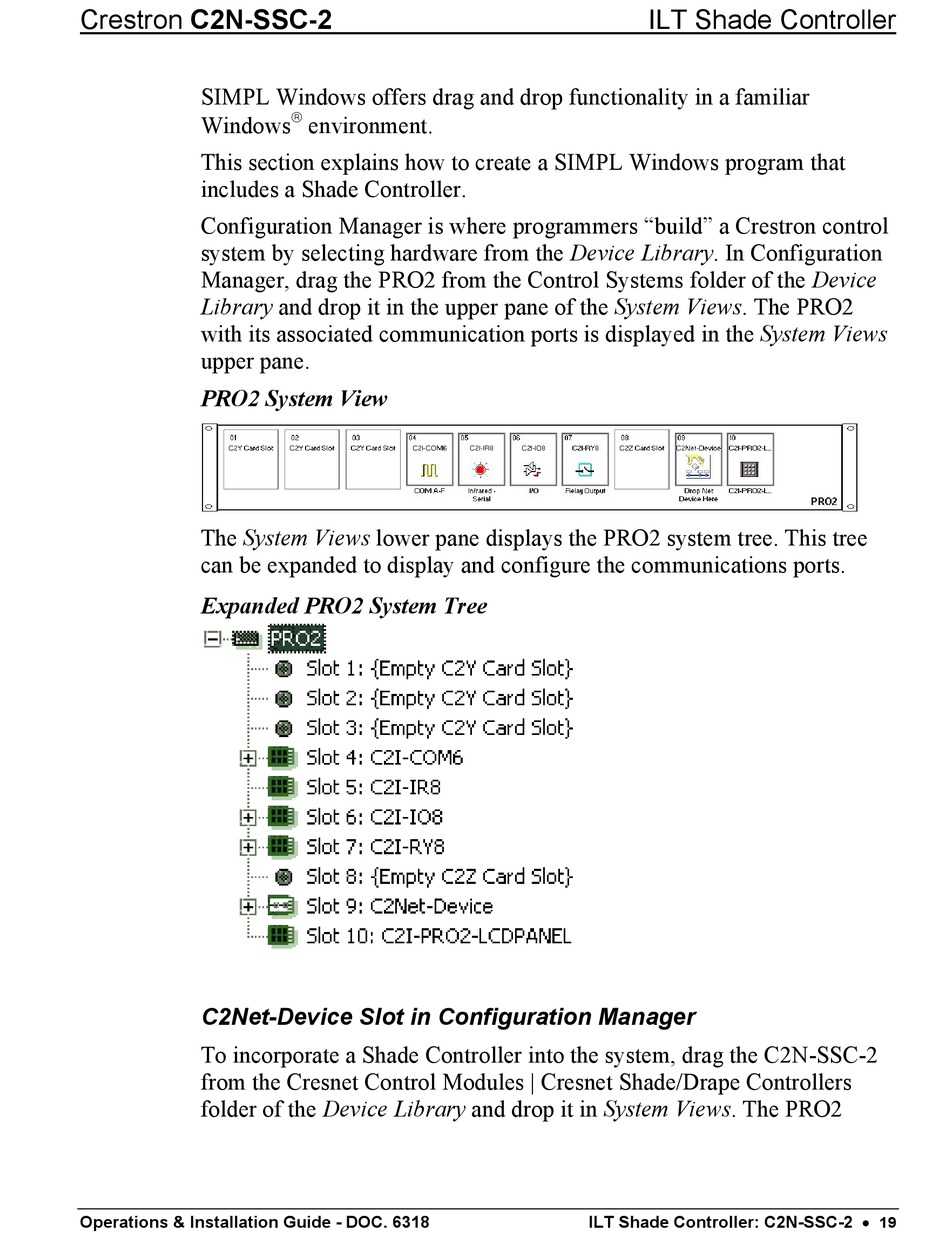

Crestron C2N-SSC-2
SIMPL Windows offers drag and drop functionality in a familiar
Windows
This section explains how to create a SIMPL Windows program that
includes a Shade Controller.
Configuration Manager is where programmers "build" a Crestron control
system by selecting hardware from the Device Library. In Configuration
Manager, drag the PRO2 from the Control Systems folder of the Device
Library and drop it in the upper pane of the System Views. The PRO2
with its associated communication ports is displayed in the System Views
upper pane.
PRO2 System View
The System Views lower pane displays the PRO2 system tree. This tree
can be expanded to display and configure the communications ports.
Expanded PRO2 System Tree
C2Net-Device Slot in Configuration Manager
To incorporate a Shade Controller into the system, drag the C2N-SSC-2
from the Cresnet Control Modules | Cresnet Shade/Drape Controllers
folder of the Device Library and drop it in System Views. The PRO2
Operations & Installation Guide - DOC. 6318
environment.
ILT Shade Controller
ILT Shade Controller: C2N-SSC-2 •
19
