Crestron CLC-1LEDPWM-RGBW-EX User Manual

DO
CLC-1LEDPWM-RGBW-EX

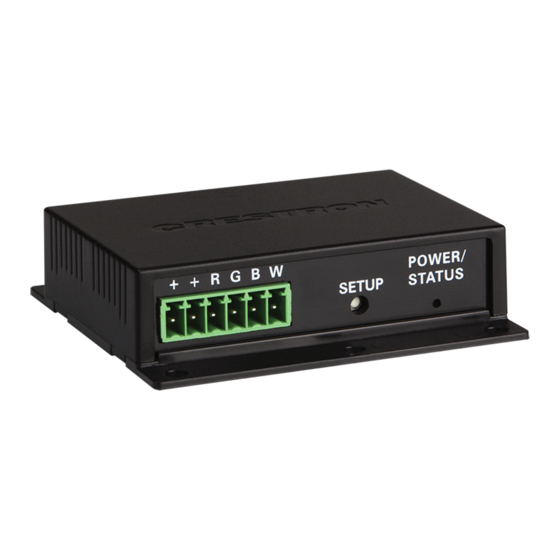

RGBW LED Controller
DO Install the Device
The Crestron ® CLC-1LEDPWM-RGBW-EX can be mounted onto any surface using three screws
(not included). For best results, position the device to avoid interference from nearby RF sources,
obstructions, and metal surfaces.
DO Connect the Device
Make the necessary connections as called out in the illustrations that follow. Apply power after all
connections have been made.
NOTE: When making connections to the CLC-1LEDPWM-RGBW-EX, use Crestron power supplies
for Crestron equipment.

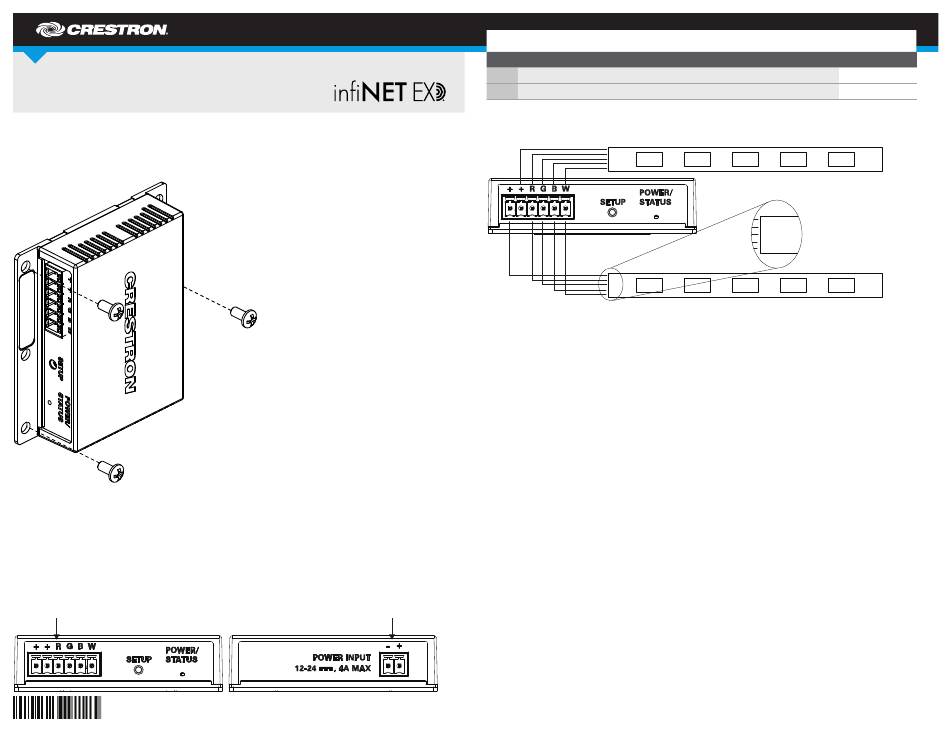

Hardware Connections for the CLC-1LEDPWM-RGBW-EX
To LED channels
GUIDE
Power supply connection
DO Check the Box
QTY PRODUCT
1 Connector, 2-Pin
1 Connector, 6-Pin
Wiring the LED Strip
+
R
G
B
W
+
R
G
B
W
DO Join an infiNET EX Network
®
The device connects to the Crestron network via the infiNET EX
the procedures outlined below to join or leave an infiNET EX network and to verify communications
between the device and the control system.
Joining an infiNET EX Network
Before a device can be used in a lighting system, it must first join an infiNET EX network. To join an
infiNET EX network, the device must be acquired by an infiNET EX gateway.
NOTE: A device can be acquired by only one gateway.
1. Put the infiNET EX gateway into Acquire mode from the unit itself or from Crestron Toolbox™
software. Refer to the gateway's manual at www.crestron.com/manuals for details.
NOTE: In an environment where multiple gateways are installed, only one gateway should be in
Acquire mode at any time.
2. Put the device into Acquire mode:
a. Tap the SETUP button three times, and then press and hold it down (tap-tap-tap-
press+hold) until the LED on the device blinks once (this can take up to 10 seconds).
b. Release the button to start the acquire process. The LED blinks slowly to show that the
device is actively scanning the infiNET EX network.
• The LED turns on for 5 seconds to show that the device has been successfully
acquired by the infiNET EX network.
• The LED blinks fast to indicate that the device was not successfully acquired by the
infiNET EX network. Tap the SETUP button to acknowledge the failure. Ensure the
gateway is in Acquire mode and within range before attempting the acquire process
again.
3. Once all devices have been acquired, take the gateway out of Acquire mode. Refer to the
gateway's manual for details.
PART NUM.
2003574
2003578
+
R
G
B
W
communications protocol. Use
®
