AX92320 4-port Gigabit 802.3at PCI Express PoE Card

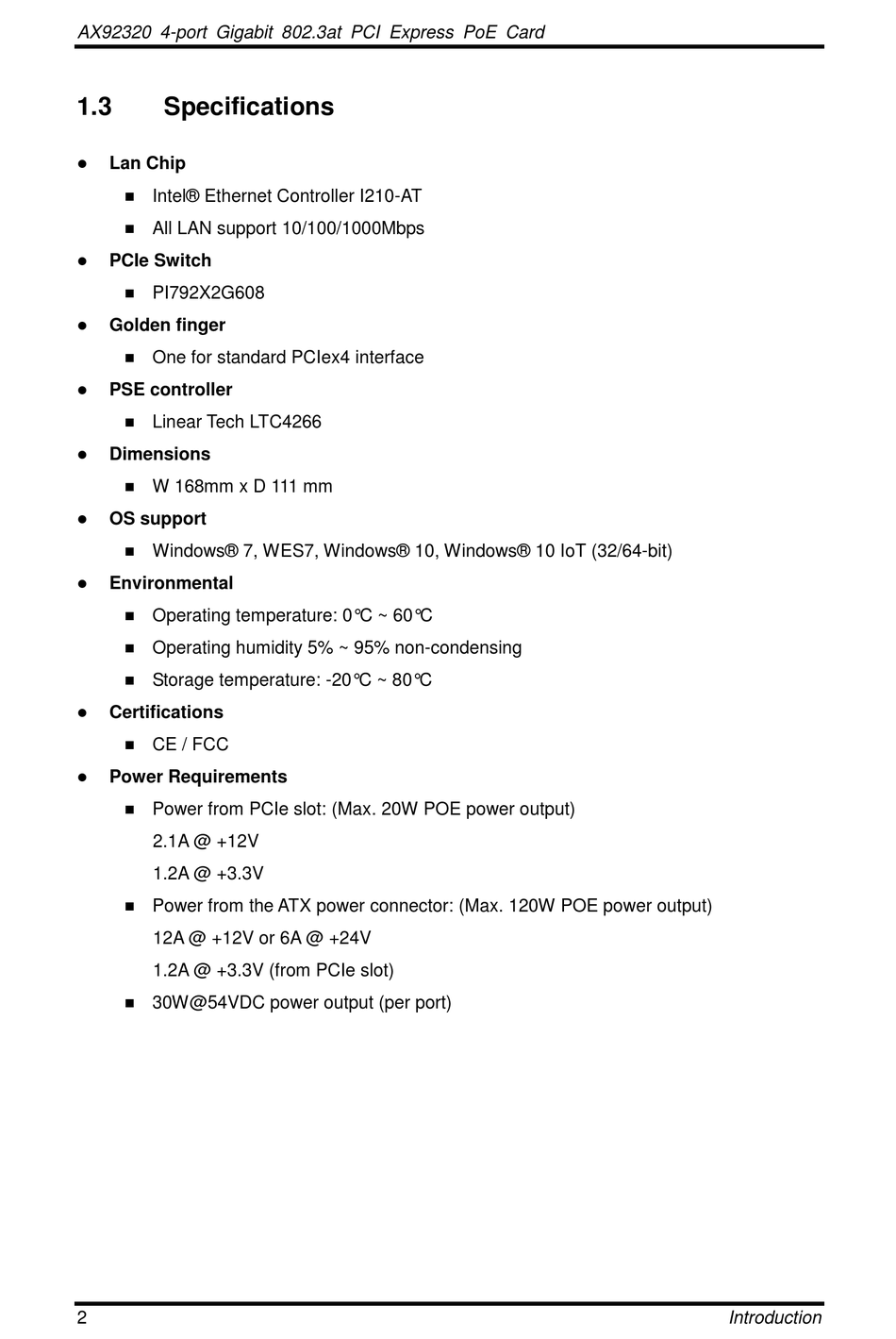

1.3

Specifications

 Lan Chip
 Intel® Ethernet Controller I210-AT
 All LAN support 10/100/1000Mbps
 PCIe Switch
 PI792X2G608
 Golden finger
 One for standard PCIex4 interface
 PSE controller

Linear Tech LTC4266

Dimensions
 W 168mm x D 111 mm
 OS support
 Windows® 7, WES7, Windows® 10, Windows® 10 IoT (32/64-bit)
 Environmental
 Operating temperature: 0°C ~ 60°C
 Operating humidity 5% ~ 95% non-condensing
 Storage temperature: -20°C ~ 80°C
 Certifications

CE / FCC

Power Requirements
 Power from PCIe slot: (Max. 20W POE power output)
2.1A @ +12V
1.2A @ +3.3V

Power from the ATX power connector: (Max. 120W POE power output)
12A @ +12V or 6A @ +24V
1.2A @ +3.3V (from PCIe slot)
 30W@54VDC power output (per port)
