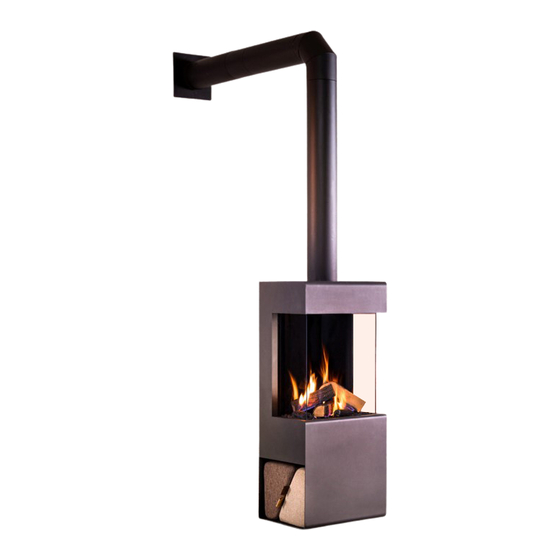

- Page 1 Tourmaline 1120 INSTALLATION INSTRUCTION...
-
Page 2: Table Of Contents
CONTENTS INSTALLATION INSTRUCTIONS ............................3 PLACING THE APPLIANCE ..............................3 Preparation and installation ........................3 Connection to the gas pipes ........................4 Removing the front glass panel ....................... 4 Removing the side glass panels ......................5 Fitting the front glass panel ........................6 Restrictor and baffle plate ......................... -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS NOTE • Ignite the appliance according to the user manual and check The installation may only be carried out by an authorised the flame is burning evenly. After the appliance has been person. used for the first time, any deposits resulting from curing must be removed from the glass panel using a glass cleaner •... -
Page 4: Connection To The Gas Pipes
2.3 Removing the front glass panel Before removing the appliance from the packaging, first check whether everything is whole and complete. If defects can The front glass panel is clamped at the bottom and top. be seen, report this to the supplier before fitting. You must •... -
Page 5: Removing The Side Glass Panels
2.4 Removing the side glass panels • Remove the clamping strip on the upper side of the side The side glass panels do not need to be removed when glass panel 5. The strip can be pressed downwards using installing the appliance. For replacement or thorough cleaning, a small screwdriver 4. -
Page 6: Fitting The Front Glass Panel
2.5 Fitting the front glass panel • Loosen the side glass panel(s) by loosening the glass holder screws (do not remove the glass holder) or removing NOTE the spring glass holder 1. When fitting the front glass panel, there is a risk of the glass •... -
Page 7: Restrictor And Baffle Plate
2.6 Restrictor and baffle plate The restrictor 1 and/or baffle plate 2 can be mounted inside the appliance, at the location of the flue gas duct. Chapter 7 Concentric pathways contains a table that describes when a baffle plate and/or a restrictor must be fitted. This is important to ensure the gas fire works correctly. -
Page 8: Installation Of The Burner Mesh And Dispersion Medium
INSTALLATION OF THE BURNER MESH AND DISPERSION MEDIUM Handle the logs carefully, the ceramic material is very fragile (for example, if dropped or bumped). Do this as accurately as possible; incorrect placement of the logs can negatively influence the flame and cause soot formation. •... - Page 9 Installation instruction Trimline Tourmaline...
-
Page 10: Technical Details Maxitrol Gv60
TECHNICAL DETAILS MAXITROL GV60 Gas valve type Mertik GV60 M1 B6R-R8P (Wifi Ready) Automatic ignition control type Ignition Remote control operation and piezo ignition Gas connection Pilot flame connection Multi cable Thermocouple connection Piezo connection Gasinlet 3/8" ... -
Page 11: Instructions For Maxitrol Gv60
INSTRUCTIONS FOR MAXITROL GV60 WARNING breaker. This may cause the magnetic coil to not open • Ensure the fuel supplied to the appliance is clean and free the gas supply to the pilot flame and prevent the appliance from particles and moisture. from functioning. -
Page 12: Gas-Technical Specifications
GAS-TECHNICAL SPECIFICATIONS 1120 - Free Standing Type of indication(s) C11, C31, C91 Appliance type Holetherm CC 100-150 Concentric extraction system G25,3 G20/G25 Gas type G 20DG 25 20/25 Supply pressure in mbar AT/CH/CZ/DE/DK/ BE/FR Country EE/ES/FI/GB/GR/ HR/IE/IT/LT/LU/ LV/ NO/PL/PT/RO/SE/ SI/SK/TR Category (43,46-45,3 MJ/m L=3x Ø4,5 M=3x Ø3,5... - Page 13 1120 - Free Standing Type of indication(s) C11, C31, C91 Appliance type Holetherm CC 100-150 Concentric extraction system G30/G31 Gas type Supply pressure in mbar (28-30)-37 30/50 BE/CH/CY/CZ/ES/FR/GB/GR/IE/IT/LT/PT/ NL/BE/CH/CY/FR/GB/IT/LT/ SI/SK/AT/CH/ Country SI/SK DE/ FR/SK/PL Category L=4xØ6 Mid=4xØ15 R=4xØ7 L=4xØ6 Mid=4xØ15 R=4xØ7 Primary air per burner (28-30)-37 30/50 Supply pressure...
-
Page 14: Concentric Pathways
CONCENTRIC PATHWAYS Table of concentric pathways Pathway Illustration X total in metres Y total in metres Restriction x = vertical and y = horizontal Min* Max* Min* Max* 1120 Indirect façade outlet G20/25 See restriction conditions See restriction conditions Indirect façade outlet G30/G31 Roof pass-through without slope See restriction conditions Roof pass-through with 45º... -
Page 15: Concentric Flue System
CONCENTRIC FLUE SYSTEM The concentric flue system is composed of an inner flue and • The flue should be encased if necessary. Even if the flue an outer flue. These flues have been set up concentrically so is to be installed along non-refractory materials, sufficient the combustion gases will be discharged via the internal flue fire-resistant measures must be taken. -
Page 16: Parts
8.4 Parts Check all parts for damage before commencing the installation. For the conversion of a brick flue to concentric flue, connected to CC flue system, you need the components described in appendix 2. NOTE The renovation/sanitation set consists of parts: 3 Interior mounting plate 4 Sliding element 7 Chimney mounting plate... -
Page 17: Pass-Through Positions And Function Correctly
PASS-THROUGH POSITIONS AND FUNCTION CORRECTLY Roof pass-through External extension pipe Plot boundary Dimensions Outlet positions Distance mm Distance to ventilation openings Room* Distance to ventilation openings Room* Distance to ventilation openings Room* Lower gutter bottom pipes or exhaust lines Under the eaves Under a carport, roof or balcony, inside and outside corners From ground level and rainwater drainage pipes Inside and outside a corner... -
Page 18: Cleaning And Maintenance
10 CLEANING AND MAINTENANCE • The appliance must be checked and serviced by a 3 The operation of the pressure release hatches; that they recognised installer at least once a year. The glass is also can open and close freely. cleaned during this process 4 Correct operation of the gas valve and ignition •... - Page 19 AR glass (Anti-Reflective glass) cleaning instructions General AR glass is a non-reflecting ceramic glass. This glass has an AR coating on both sides of the glass. The anti-reflection layer reduces the reflection to a minimal gloss. It is a known fact that the coating layers are more sensitive than the ceramic, therefore it is necessary to follow special cleaning procedures.
-
Page 20: Fitting The Led Glow Bed Module
11 FITTING THE LED GLOW BED MODULE 11.1 Installation instructions for the LED glow 11.2 Fitting the glass plate bed module • Remove the front glass panel, Paragraph 2.3 Removing The LED glow bed module consists of: the front glass panel. •... -
Page 21: Fitting The Led Unit
• Clamp the glass plate in place using the glazing bars , • Refit the burners and grilles in the reverse order. the short glazing bars are fitted on the left and right side, • Refit the supplied wood set and dispersion medium, the long glazing bars ... - Page 22 Installation from the inside • Remove locking screw 1 on the left under the mounting plate. • Lift the mounting plate on the right over the locking pin 2. • The mounting plate 3 now drops down. • Place the LED module 4 on the mounting plate using ...
-
Page 23: Quick Reference Guide For Faultssearch For Enclosed Appliances Using Maxitrol Gv60 Gascontrol
12 QUICK REFERENCE GUIDE FOR FAULTSSEARCH FOR ENCLOSED APPLIANCES USING MAXITROL GV60 GASCONTROL Function Possible cause Solution 1. Acoustic signals Set switch to (I) 1 long beep reset switch OFF (0) 1 long beep connections not complete Check connections in thermocouple circuit Check connections in connector/replace 1 long beep ... - Page 24 Function Possible cause Solution 7. Pilot light goes out when the False air along pilot flame holder/gasket Check pilot flame holder and gasket for leaks appliance is closed False air hatches Check pressure hatches/gasket is completely closed Main flame causes pilot flame to go out Check restrictor/baffle in accordance with regulations 8.
-
Page 25: Appendix 1 Dimensional Drawings
Appendix 1 DIMENSIONAL DRAWINGS Trimline Tourmaline Measurements in mm Installation instruction Trimline Tourmaline... -
Page 26: Appendix 2 Construction Diagram Double-Wall Concentric
Appendix 2 CONSTRUCTION DIAGRAM DOUBLE-WALL CONCENTRIC Material: Stainless steel AISI 316 L - Allow number 1.4404 Application: for the discharge of flue gases and the supply of combustion air from gas-fired appliances or stoves with a closed combustion system Roof pass-through Roof pass-through Storm collar Lead flashing Roof mounting bracket...
