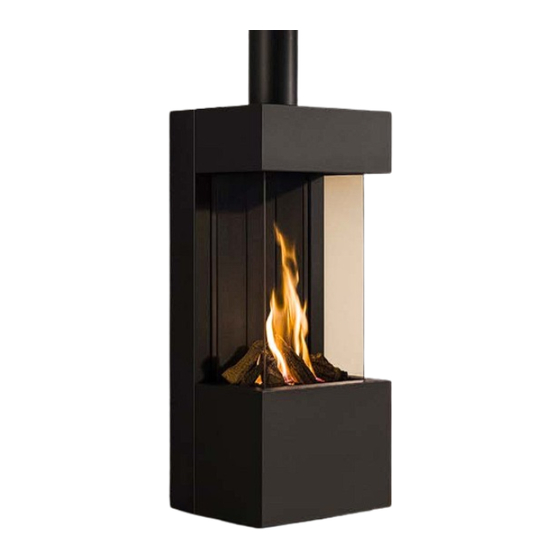

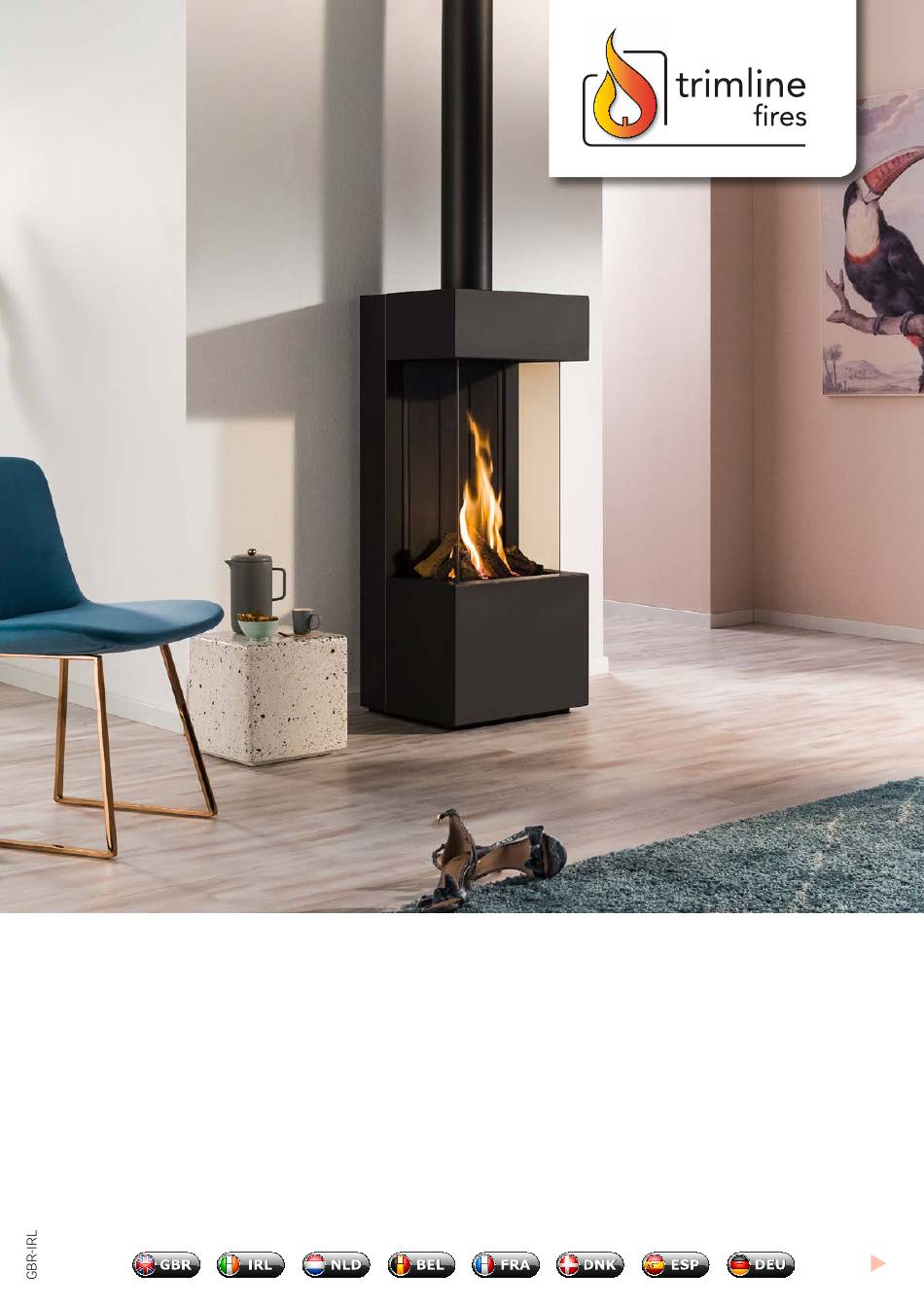

- Page 1 Trimline 38 FS (1071) INSTALLATION INSTRUCTION...
-
Page 2: Table Of Contents
QUICK REFERENCE GUIDE FOR FAULTSSEARCH FOR ENCLOSED GAS FIRES USING MERTIK GV60 GASCONTROL ......................20 Appendix 1 DIMENSIONAL DRAWINGS ......................22 Appendix 2 INSTALLATION EXAMPLES REGARDING FLUES ..............23 Thermocet International B.V. Laagerfseweg 31 3931 PC Woudenberg The Netherlands www.trimlinefires.com Modifications and printerrors are reserved. V171019 Installation instruction Trimline 38 FS... -
Page 3: Installation Instructions
• Remove the packaging and check the unit for possible read and understand the installation manual before starting damage. the installation. Put the gas fire in its place, keeping a distance of at least 50 mm away from the wall at the rear. Installation instruction Trimline 38 FS... - Page 4 These are attached Chapter 7 Concentric pathways and 8 Concentric flue system. with 4 hooks per cover. 20 mm Mounting location for Gas connection optional WiFi box Cut-out plate Installation instruction Trimline 38 FS...
- Page 5 1 upwards 2 outwards 3 down to remove Side glass pane bolts Rear bolt Front glass pane bolts Rear bolt Side glass pane bolts Front glass pane bolts Installation instruction Trimline 38 FS...
- Page 6 • Place the front window and make sure it lines up with the side window(s). 4 • Securely clamp the front window by tightening the glass holder screws 5 or by installing the spring-loaded glass holder*. Installation instruction Trimline 38 FS...
- Page 7 This is important to ensure the gas fire works correctly. Before the lower cover is replaced, the plinth needs to be put in place; it is pushed around the legs and rests on the floor. Plinth Plinth Installation instruction Trimline 38 FS...
-
Page 8: Installing The Ceramic Wood Set And Ground Cover
Handle the blocks carefully, the ceramic material is very fragile (for example, if dropped or bumped). Do this as accurately as possible; incorrect placement of the blocks can negatively influence the flame and cause soot formation. Installation instruction Trimline 38 FS... - Page 9 Installation instruction Trimline 38 FS...
-
Page 10: Technical Details Gv60
Pilot Burner Combination Control GV60… Thermocurrent Cable SW with ON / OFF Switch G60-ZSKS(L)S… Interrupter Block Thermocurrent Cable TC G60-ZUS… G60-ZKIRS… Ignition Cable G60-ZKIS… Receiver B6R-R8(9)P… WARNING Sealed parts must not be adjusted. Antenna RESET Button Installation instruction Trimline 38 FS... -
Page 11: Instructions For The Mertik Maxitrol Gv60
The high voltage released during ignition may damage the sensitive receiver circuit of the antenna. This could mean the unit becomes less responsive or totally unresponsive to commands from the handset. Installation instruction Trimline 38 FS... -
Page 12: Gas-Technical Specifications
Other control options Control of room temperature with presence detection* Control of room temperature with open window detection* With remote control option * in combination with home automation ** shortest system path *** EU directive 2015-1186/1188 Installation instruction Trimline 38 FS... - Page 13 Other control options Control of room temperature with presence detection* Control of room temperature with open window detection* With remote control option * in combination with home automation ** shortest system path *** EU directive 2015-1186/1188 Installation instruction Trimline 38 FS...
-
Page 14: Concentric Pathways
Wall pass-through 1 metre vertical, 90° bend, max. 3 metres horizontal Remove the baffle plate and no restriction Roof pass-through 2 to 5 metres vertically Insert 30 mm restriction plate Roof pass-through 5 to 12 metres vertical Insert 40 mm restriction plate Installation instruction Trimline 38 FS... -
Page 15: Concentric Flue System
4. Interior mounting plate • The flue should be encased if necessary. Even if the flue 5. Sliding element is to be installed along non-refractory materials, sufficient 8. Chimney mounting plate fire-resistant measures must be taken. Installation instruction Trimline 38 FS... -
Page 16: Installation
• Install a minimum of 1 metre of concentric flue type THC CC (2). • Extend the concentric flue using sections (2) up to a minimum of 100mm in the structural duct. Finally, turn the clamping strip by hand in the mounting plate inside (3). Installation instruction Trimline 38 FS... -
Page 17: Pass-Through Positions And Function Correctly
Roof drain centre to centre 1000 From the centre of both roof drains Two wall drains above each other 1000 Two wall drains next to each other 1000 * In accordance with local building codes Installation instruction Trimline 38 FS... -
Page 18: Cleaning And Maintenance
Pressure hatch bottom Flue gas discharge measurement point measurement point View from below To get to the bottom of the pressure hatch, first remove the burner by unscrewing the 2 screws Holes for accessibility to measurement points Installation instruction Trimline 38 FS... - Page 19 For example, the AR glass may reflect the colours from a red sofa, white table or a floor. If the AR glass is cleaned regularly, or by frequently using products that are not recommended, the AR effect will fade over time. Installation instruction Trimline 38 FS...
-
Page 20: Quick Reference Guide For Faultssearch For Enclosed Gas Fires Using Mertik Gv60 Gascontrol
False air along pilot light holder/gasket Check pilot light holder and gasket for leaks fireplace is closed Check pressure hatches/gasket is completely False air hatches closed Main flame causes pilot light to go out Check restriction/baffle in accordance with regulations Installation instruction Trimline 38 FS... - Page 21 Blocked burner flame openings Check and clean with a vacuum cleaner, for example Incorrect premix for main burners Check and correct, see instructions Decorative logs, etc. in incorrect position Check and correct, see instructions Installation instruction Trimline 38 FS...
-
Page 22: Appendix 1 Dimensional Drawings
Appendix 1 DIMENSIONAL DRAWINGS Trimline 38 FS Mantle Measurements in mm Installation instruction Trimline 38 FS... -
Page 23: Appendix 2 Installation Examples Regarding Flues
5 Sliding element (Renovation package) H Wall bracket 4 Interior mounting plate (Renovation package) G Length section 3 Clamping strap F Floor support E Fire separation plate flat 2 Fitting piece D Length section 1 Clamping strap C Wall bracket B Clamping strap A Connection piece Installation instruction Trimline 38 FS...
