6. Tighten the screws on the sides of the rack rails. Extend the rails from the rack until they lock.

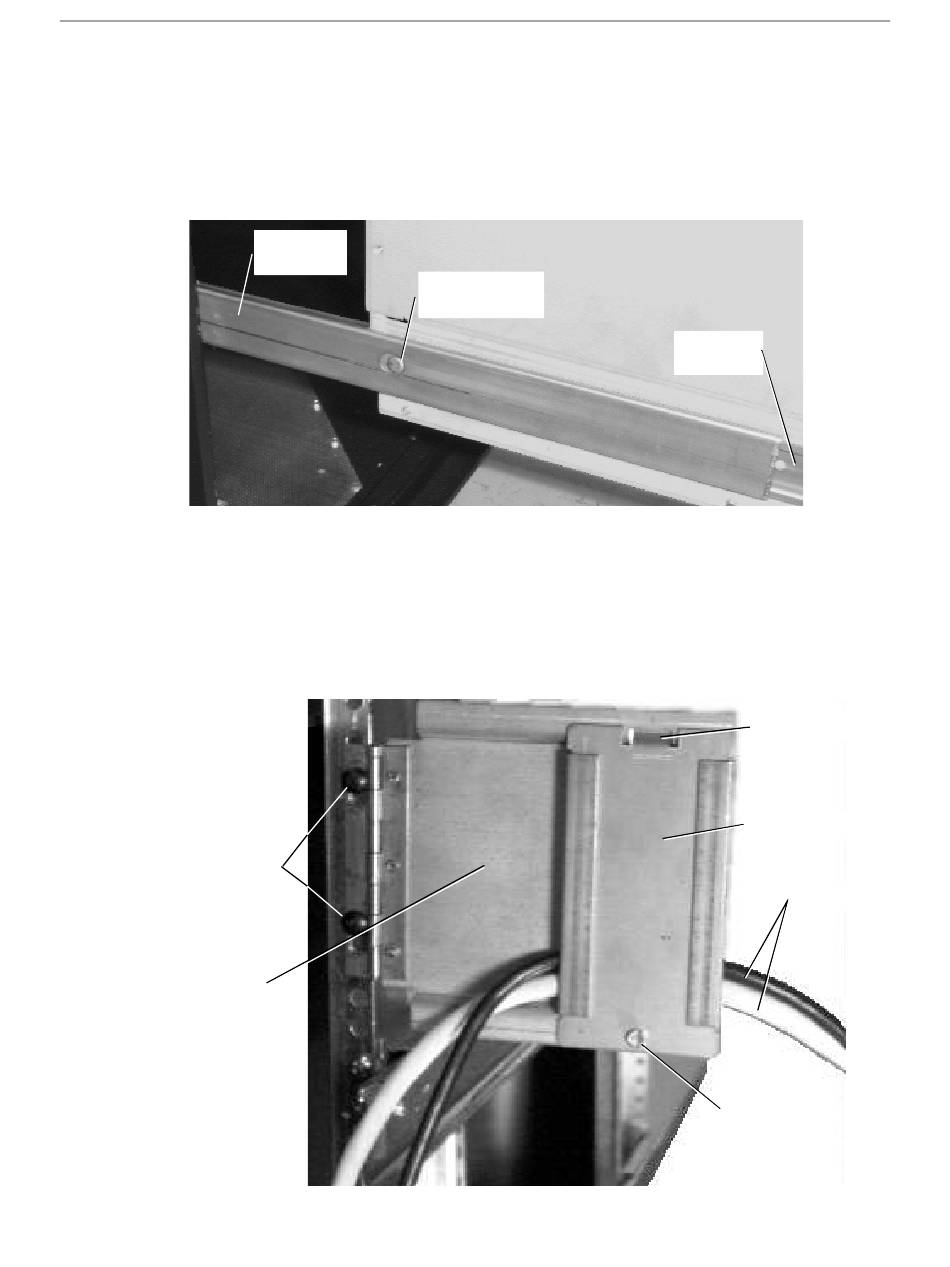

7. With a person on each side, lift the base unit and align the rack rails with the rail guides
mounted on the side of the base unit. Refer to the following figure.
8. Slide the base unit into the rack rails until it stops. Press the tabs on each side and slide the base
unit until it again stops and locks in place. Press the tabs a second time, and then slide the base
unit completely into the rack. Refer to the following figure.
9. Secure the cable handlers to the mounting holes in the top three Us in the destination bay, using
the screws and tinnerman nuts provided. Refer to the following figure.
10. Insert the handler panel tab into the slot of the cable handler. Place the cables for peripheral
devices (such as a concentrator or an AC distribution box) into the cable handlers. Refer to the
following figure.
Use the remaining screws to secure the handler panels to the cable handlers. Refer to the
following figure.
Button-Head
Screws
Cable
Handler
Rack Rail
(Each Side)
Locked Rail Tab
(Each Side)
Rail Guide
(Each Side)
Tab and Slot
Handler Panel
Cables
Panel Screw
