INSTALLATION INSTRUCTIONS
• This is a comprehensive step-by-step instruction guide on how to install the Q300M Mini Wheelchair Bracket 41 Amp batteries only
(wheelchair manufacture date February 2019).
• Make sure to read, understand and follow all these instructions.
• To address any questions contact the nearest Q'Straint  office.
• All deviations and alterations from these instructions MUST be reported to both your supervisor and Q'Straint .
• For installation of the QLK Docking system, please refer to the separate Installation Instructions and the Use and Care Manual.
• All equipment and components MUST be installed and serviced
by an experienced and trained technician.

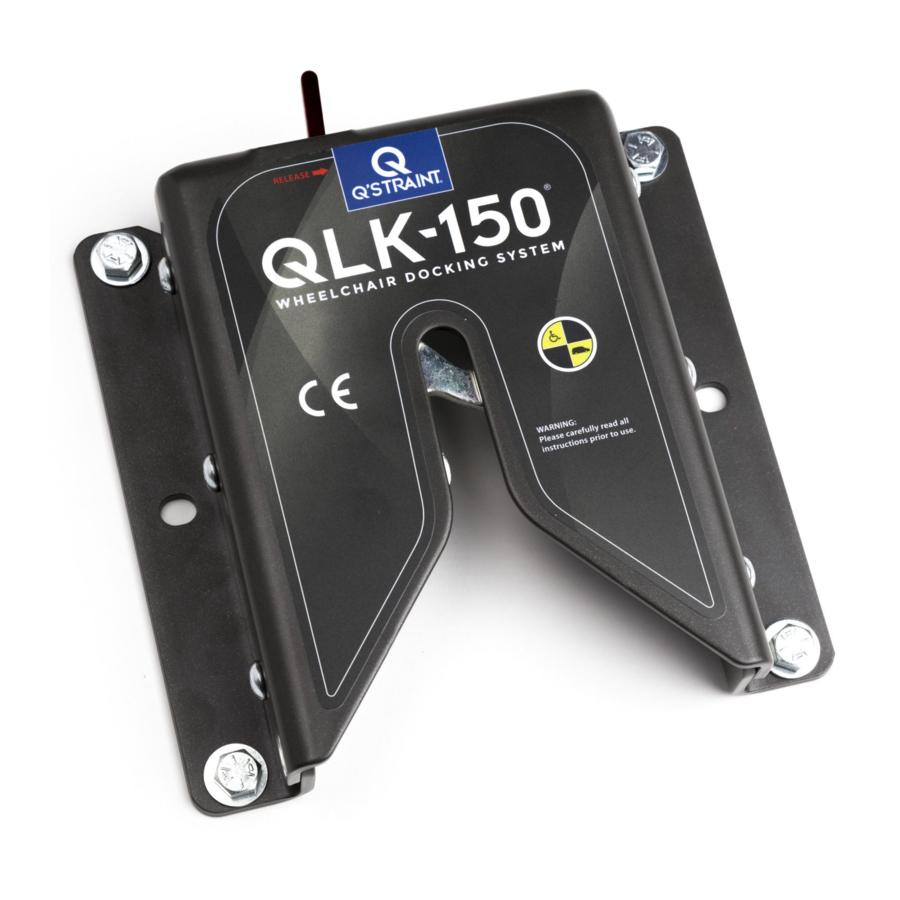

• The QLK-150 Wheelchair Docking System complies with all
applicable requirements of ADA, FMVSS, CMVSS, SAE J2249,
CSA Z604, AS2942, ISO 10542-1 and ANSI/RESNA WC-4
SECTION 18.
• This System is a complete integrated system, do not alter or
modify it in any way and do not interchange or substitute any
components. Any deviation from these recommendations is the
responsibility of the installer.
• The QLK-150 Docking System, bracket and its components
MUST be regularly inspected, cleaned and maintained.
• Do NOT attempt to repair, adjust, or modify any component(s) of
the QLK-150 system or bracket without consulting a Q'Straint®
representative.
• The QLK-150 Wheelchair Docking System should not be
operated by anyone who does not have full comprehension of
how the System works or if the System is not working properly.
• The QLK-150 Wheelchair Docking System, bracket and all
system components including floor and wall anchorages MUST
be replaced after a vehicle collision
• The QLK-150 Wheelchair Docking System MUST be installed
with a compliant occupant restraint system (shoulder and lap
belt).
Q300M MINI
READ ALL INSTRUCTIONS PRIOR TO INSTALLATION
IMPORTANT SAFEGUARDS AND WARNINGS
SAVE THESE INSTRUCTIONS
• Broken and worn components MUST be replaced.
• All damages and defects MUST be reported to both your
supervisor and Q'Straint®.
• Only use Q'Straint® components with this system, including
hardware and wheelchair interface bracket unless otherwise
stated.
• Q'Straint wheelchair brackets and QLK docking station have
been designed and tested as a system, for use with specific
wheelchairs.
• Q'Straint supplies all the components/hardware required to
install the system so the configuration is the same as that tested
and set out in the individual installation instructions.
• Occasionally, wheelchairs may have additional components
installed which are not detailed in our installation instructions
and which may need to be temporarily removed in order to
gain access to fixing holes or support frames to enable the
attachment of the wheelchair bracket.
• It is the responsibility of the installer to ensure that all such
wheelchair component(s) are put back in their original location
using the original fixings or fixing of the same size and grade.
• Each wheelchair should be test driven after fitment of the
bracket, to ensure it is functioning correctly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QLK-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Q'STRAINT QLK-150

  • Page 1 • Broken and worn components MUST be replaced. by an experienced and trained technician. • All damages and defects MUST be reported to both your • The QLK-150 Wheelchair Docking System complies with all supervisor and Q’Straint®. applicable requirements of ADA, FMVSS, CMVSS, SAE J2249, •...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNINGS ....................... 2 EQUIPMENT ..................... 3 COMPONENT CHECKLIST: ................4 INSTALLATION PROCEDURE ................6 STEP 1 – LOCATE SEATING FIXINGS ............6 STEP 2 – UNSCREW BOSSES ..............6 STEP 3 – PIVOT SEAT ................7 STEP 4 – REMOVE COVER ................ 7 STEP 5 –...
  • Page 3: Equipment

    EQUIPMENT CHECKLIST SIZE QTY. EQUIPMENT Allen Keys COMPONENT CHECKLIST Bracket kit Q03BR018 to be used with Q04S151 and QS99020. Complete kit number is QE-9125. Within Q080046: ITEM QTY. IMAGE PART# AND DESCRIPTION Q03BR018 Q300M Mini Bracket As- sembly QE-9124 Q300M Mini Hardware Kit...
  • Page 4 Within Kit : Q03BR018 ITEM IMAGE QTY. PART# AND DESCRIPTION QS00738 Q300M Main bracket Welded Assembly QS00738 Q300M Main bracket Welded Assembly Q03C0085 2mm spacer Within Kit : QE-9124 QE9-8142 M6 x 16mm CSK QE9-8147 M8 x 16mm x 1.25 CSK...
  • Page 5: Installation Procedure

    INSTALLATION PROCEDURE Step 1: Locate Seating Fixings Locate the two threaded bosses at the front of the chair underneath the seating system as shown in Fig. 1. Step 2: Unscrew bosses Carefully unscrew the 2 bosses, as shown in Fig. 2 being cautious about finger entrapment.
  • Page 6: Step 4: Remove Cover

    Step 4: Remove Cover Remove the plastic cover (it is normally attached with Velcro) and set to one side. This will reveal the battery compartment and control electronics. Fig. 4 shows the plastic cover in place. Step 5: Detach modules Once the plastic cover is removed, shown in Fig.
  • Page 7: Step 7 - Align Plate

    Step 7 – Align Plate Carefully place chair on its side and insert inner battery tray plate (P/N Q03C0141) as shown, ensuring that the orientation is correct. Step 8 - Install bolts Offer up the Main Bracket Welded Assy (P/N QS00738) as shown, and fix with the 6 x M8x16CSK and 2 x M6x16, engaging the threads with the inner battery tray.
  • Page 8: Step 11 - Reinstall The Ecu

    Step 10 – Reinstall the ECU Replace the ECU at the back of the chair and replace the two screws using a 5mm Allen key Step 11 – Re-secure the seat Re-secure the seat back down onto the battery tray. Refer to the inverse order of steps 1 and 2. Step 12 - QLK Alignment Alignment between the wheelchair bracket and the QLK must be checked and adjusted before bolting the QLK to the vehicle floor.
  • Page 9 Apply the following calculation to determine the QLK height. MAX QLK Height (mm) Measured Ground Clearance (D) +25mm Optimal QLK Height (mm) Measured Ground Clearance (D) +21mm MIN QLK Height (mm) Measured Ground Clearance (D) +19mm Set the QLK height as close as possible to the optimal height, making sure the height is still within the upper and lower height limits.
  • Page 10 www.qstraint.com © 2019 Q’Straint®. All Rights Reserved. Q’Straint® and Q’Straint® logo are registered trademarks of Q’Straint®, Inc. QLK is a trademark of Q’Straint®, Inc. Products mentioned herein are for identification purposes only and may be registered trademarks, trademarks and patents of their respective companies. All other brand names, trademarks, registered trademarks and patents are the property of their respective owners.
