Appendix 3 Cont.

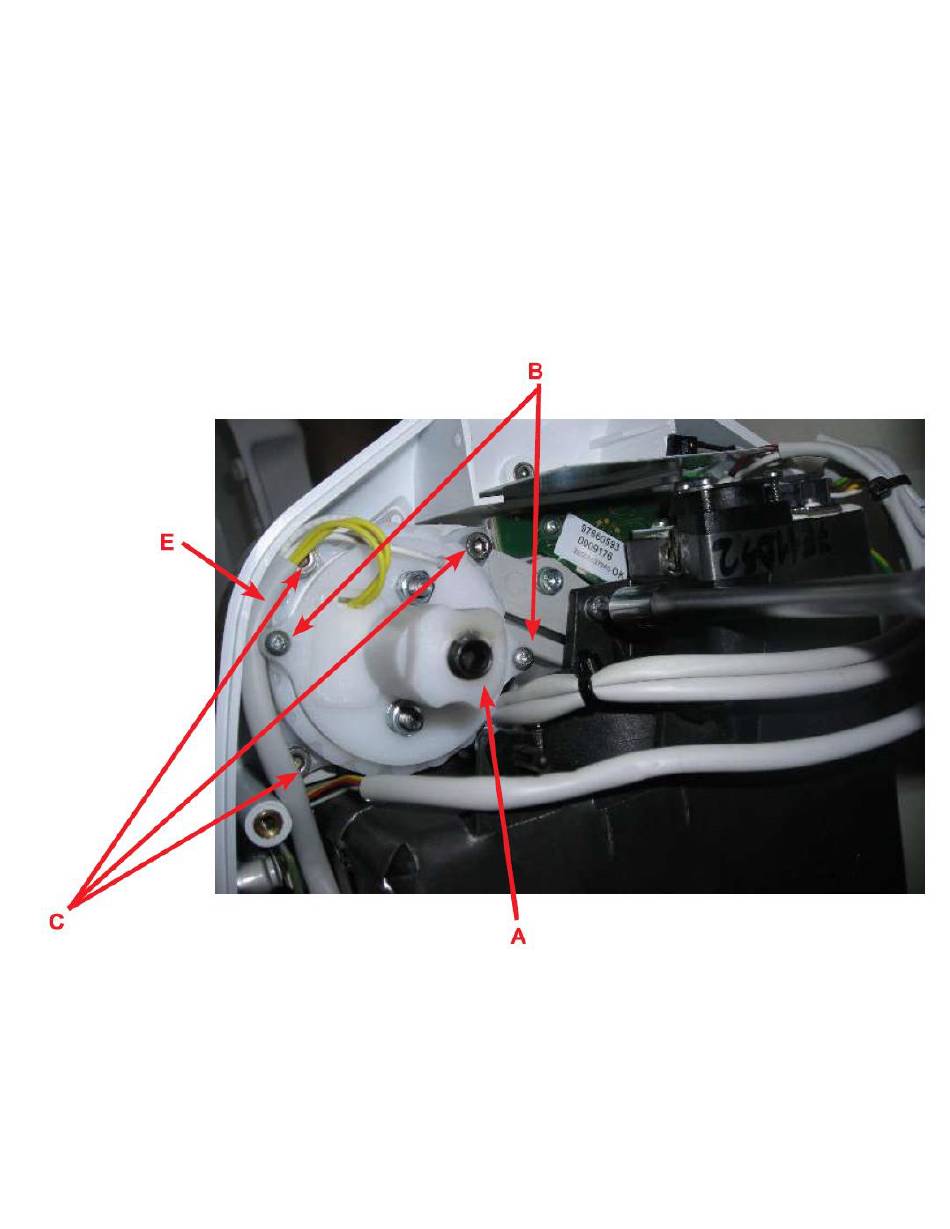

Work on grub screw A with a 4mm Allen Wrench to adjust the pressure the brake applies on the ball. Make slight adjustment
then try engaging touch pads. Repeat a few times. Counter clock wise rotation on Grub A will loosen head if tube head is locked
and will not rotate. Clockwise turns on Grub A will tighten tube head if tube head is slipping after touch pads are released. Run
the clutch assembly supply wires behind the control card. Close the cover tightening the four fixing screws and put the cover
caps back on top of the screws.
If the grub screw A cannot adequately adjust the brake, completely loosen grub screw A, loosen screws B and tighten the entire
clutch assembly unit sliding it until it encounters a bit of resistance. Tighten screws B again to prevent turning, making sure the
screws match their seats. Adjust grub screw A again and close the cover as previously directed, being careful to lay cable E as
shown in the figure below.
