iM3 Revolution 4DC- Mobile Installation Manual

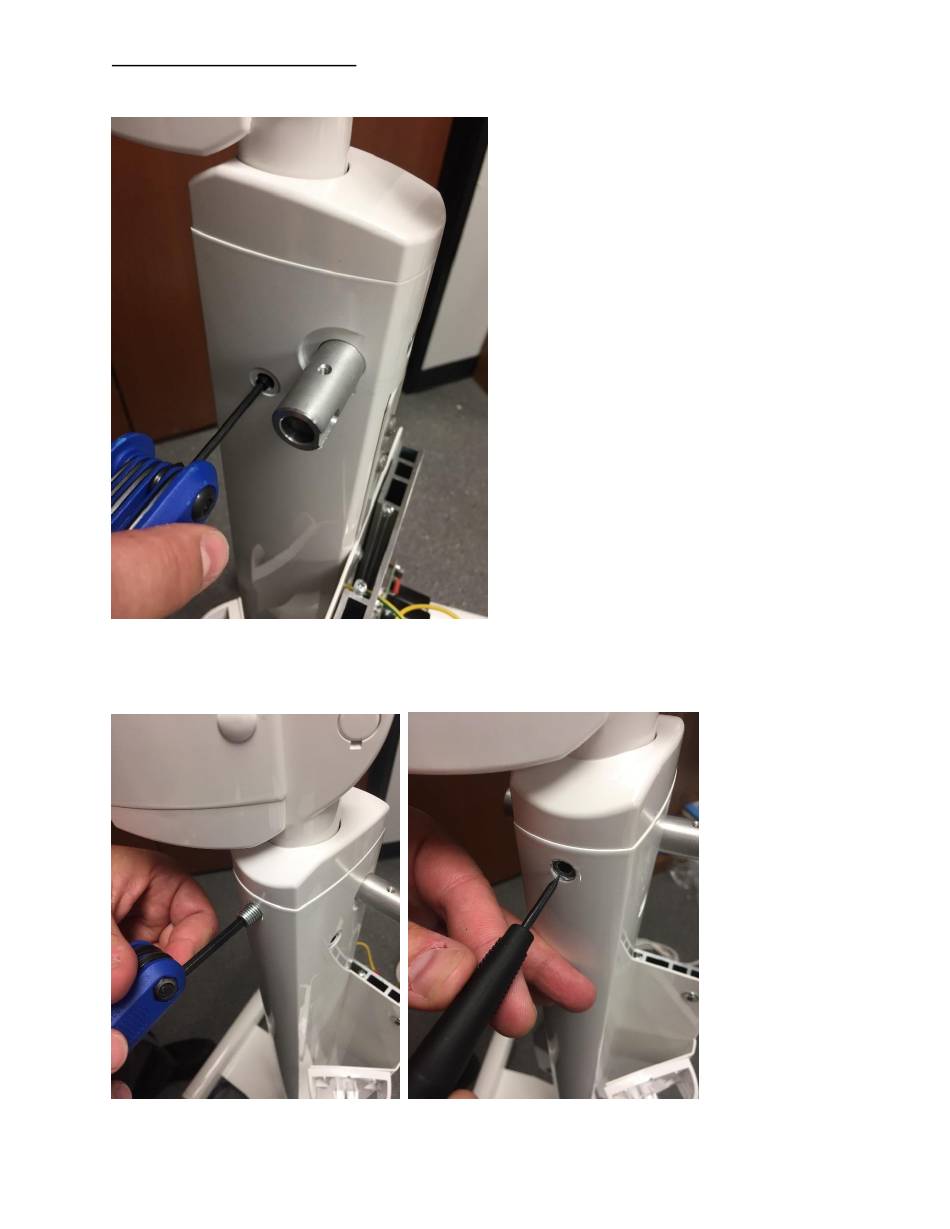

Correcting Horizontal Drift:
Description: Using the 3mm allen wrench, adjust tension on dog head screws to set arm limits to proper limits.
Description: Using 5mm allen wrench, adjust tension on set screw to apply less (counter-clockwise) or more
(clockwise) pressure on scissor arm to correct horizontal drifting of arm. If necessary to readjust friction element,
use the precision jeweler flat head screwdriver to reposition friction element to vertical position.
27
