iM3 Revolution 4DC-Mobile Installation Manual page 20

iM3 Revolution 4DC- Mobile Installation Manual
Step 7 – Securing Power Cord and Cover
Tools required: #2 Phillips Screw driver
Hardware required: 4" Zip tie (Hardware-J), Cover Flaps (Hardware-B)
Parts required: Control cover (Parts-D)
Description:

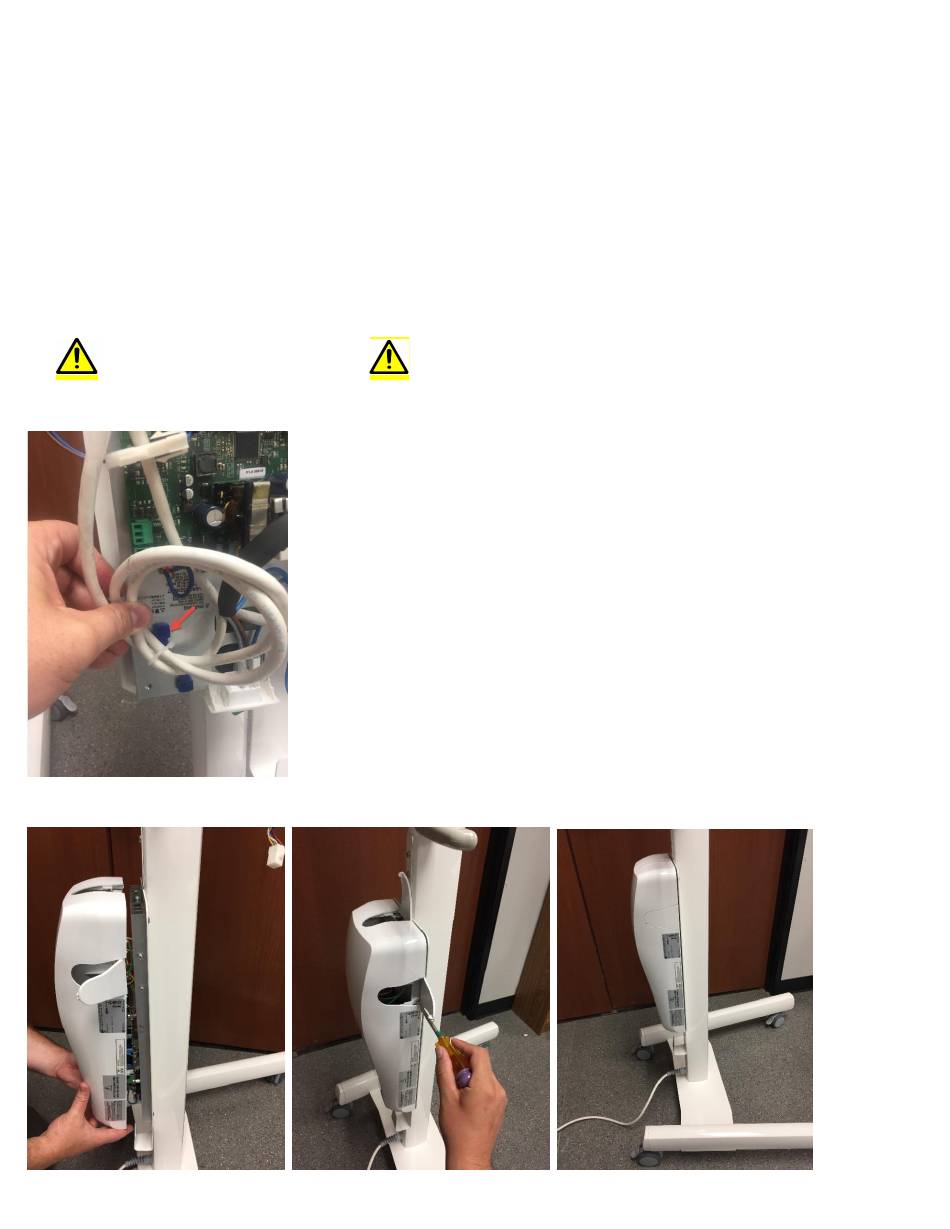

1. Thread zip tie to blue tie anchor on circuit board plate. Coil power cable. Secure cable with zip tie as shown (7a).
2. Place bottom end of cover underneath power switch and align with control board and push slightly (7b).
3. Secure plastic retainer tabs with screws using Philips screwdriver. Once secured, gently secure flaps and close (7c).
Note
: Cover Flaps are very fragile.
7a
7b 7c--->
17
