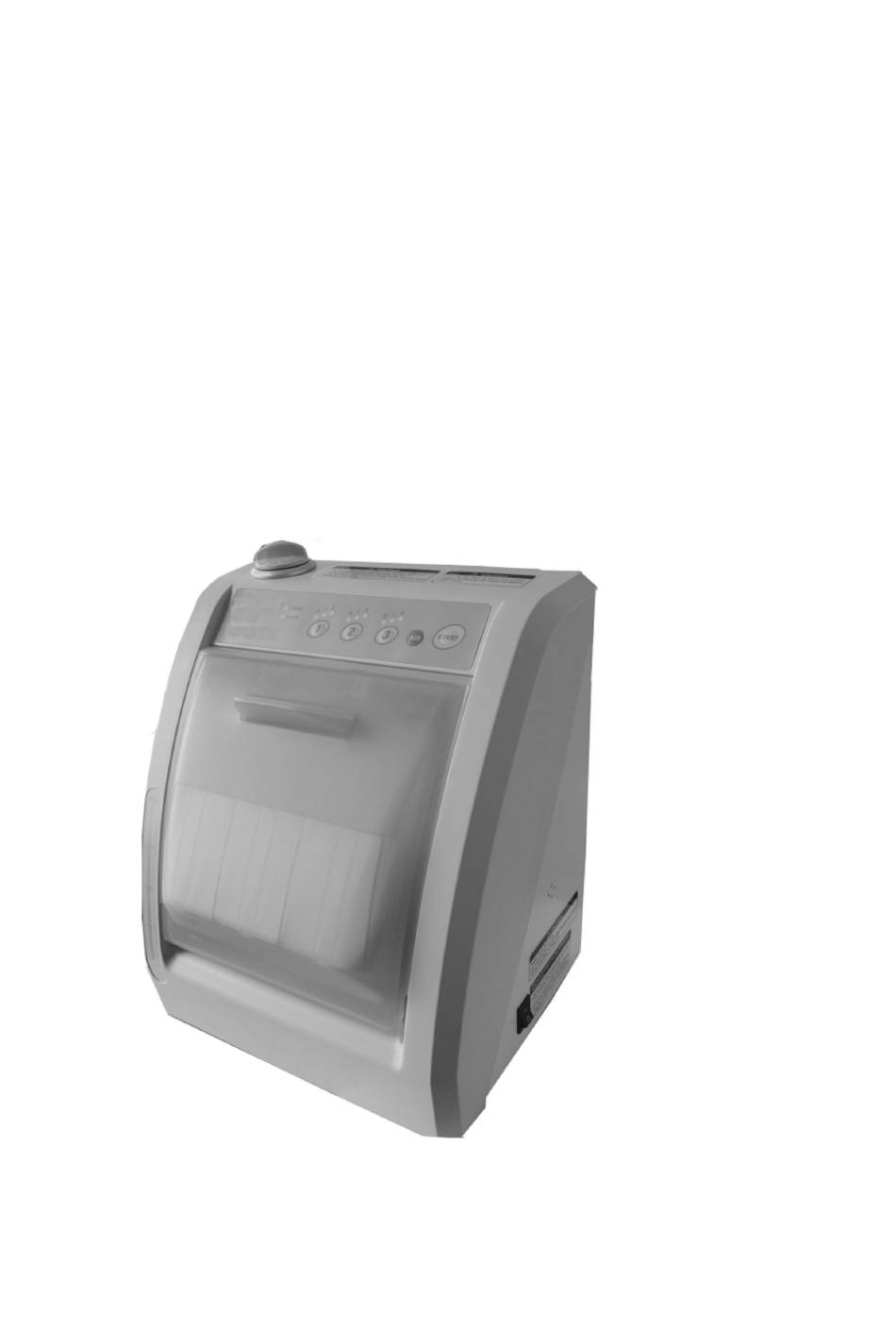

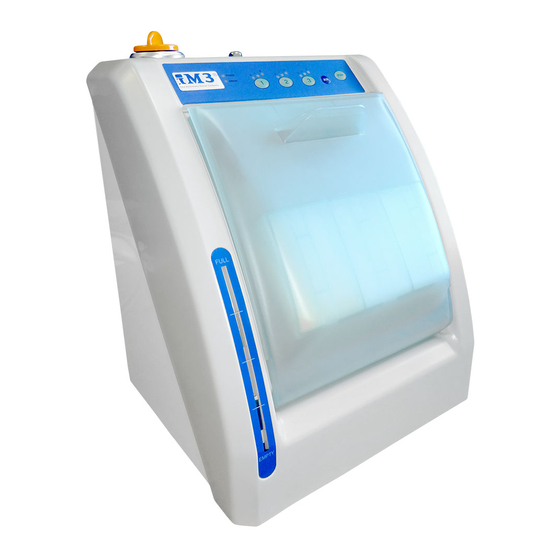

iM3 HCR-100
Automatic Handpiece Cleaning & Lubrication System
OPERATION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCR-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iM3 HCR-100

Summary of Contents for iM3 HCR-100

  • Page 1 HCR-100 Automatic Handpiece Cleaning & Lubrication System OPERATION MANUAL...

  • Page 2: Table Of Contents

    Read this Operation Manual carefully before use for operation instructions, care and maintenance. Keep this Operation Manual for future reference. CONTENTS ------------------------------ ------------------------------- SAFETY PRECAUTIONS..................3 1. FEATURES......................5 2. SPECIFICATIONS....................6 3. PARTS NAME......................7 4. INSTALLATION AND ASSEMBLY.............7 5. OPERATION PROCEDURES................8 6. DOOR........................11 7.

  • Page 3: Safety Precautions

    others. These are classified by degree of danger, damage and seriousness. All indicators concern safety and should be followed. Classification Degree of Danger or Damage and Seriousness DANGER Explains an instruction where death or serious injury may occur. WARNING Explains an instruction where bodily injury or damage to device may occur. CAUTION Explains an instruction where possibility for minor to medium bodily injury or damage to device may exist.
  • Page 4  Remove the air tube and the power cord if the unit will not be used for a long time.  When storing the maintenance oil, keep away from strong oxidizing agents, combustible materials and strong acid chemicals.  Only purchase replacement parts and consumables from iM3 or risk invalidating the warranty.

  • Page 5: Features

    1. FEATURES Performs uniform handpiece maintenance and lubrication. Three handpieces can be cleaned and lubricated simultaneously keeping your hands clean. TPCUSA rotating gear effectively and efficiently cleans and lubricates contra angle handpiece. Pressing the air key can purge excess oil from the handpiece after lubrication and cleaning cycle to some extent.

  • Page 6: Specifications

    2. SPECIFICATIONS Model SC-L1 Rated Voltage AC120V10%~AC230V10% 50/60Hz Input Voltage 24.0VA Air Pressure 0.25~0.3Mpa(2.5~3.0kgf/cm (50~85psi) Dimensions W280*D275*H360mm Weight 6.8kg...

  • Page 7: Parts Name

    3．PARTS NAMES 4. INSTALLATION AND ASSEMBLY (1) Fuse Rating Refer to the table below and check that the power supply voltage fits the fuse rating. To check the fuse rating, remove the fuse box. (2) Filling Maintenance oil Check that the filter of the funnel is clean. Remove the oil cap and fill with the funnel.

  • Page 8: Operation Procedures

    5. OPERATION PROCEDURES Attaching air turbine handpiece: 1. Remove the bur from the handpiece. 2. Open the door of the unit 3. Attach the handpiece to the joint and tighten the nut securely 4. Close the door securely. CAUTION Be sure to remove the bur from the handpiece before connecting it to each joint., Straight Handpiece 1.
  • Page 9 Cleaning and Lubricating 1) Connect the power cord plug to the power supply. Turn on the power switch, and the power indicator will light. 2) Press the selector button number of the corresponding handpiece. First push will select “S”, Short mode, second push “l”, long mode, and the third push “E”, Extra-long mode.
  • Page 10 CAUTION  Connect to the correct power supply:  Use only 3-wire power cords that have 3-prong grounding plugs and 3-hole grounded receptacles that accepts the unit’s plug.  Select an appropriate mode according to the type of handpiece. Selecting an inappropriate mode may release oil mist (misty solution) outside the unit.

  • Page 11: Door

    6. DOOR The door could be removed when cleaning or replacing the door gasket. To remove the door gasket, open the door, press the release button on right and remove the door. To mount the door, insert the pin into the left hole of the door and then insert the release button into the right hole until it locks.

  • Page 12: Trouble Shootiing

    8.TROUBLESHOOTING When trouble is found, check the following items again before asking repairs. If none of these are applicable or the trouble is not remedied even after action has been taken, a failure of this product is suspected. Contact your dealer. Trouble Probable Cause and Check The power does not...
