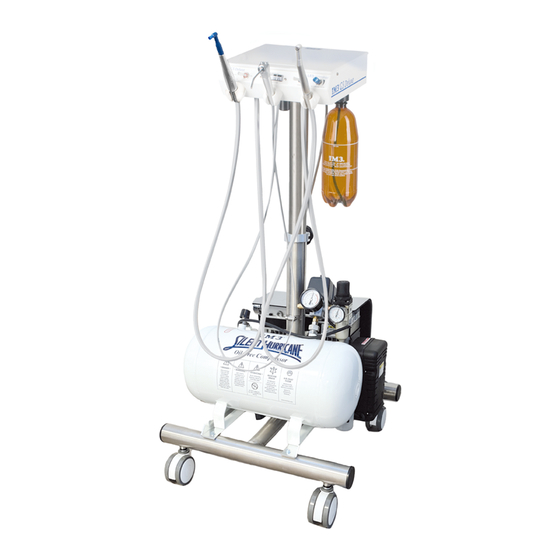

- Page 1 GS Deluxe START Dental System Manual iM3 - The Veterinary Dental Company iM3 Inc iM3 Pty Ltd 12414 95th Street 21 Chaplin Drive Vancouver WA 98682 USA Lane Cove NSW 2066 Australia Tel (360) 254 2981 Fax (360) 254 2940...
-
Page 2: Table Of Contents
High Speed Handpiece ………....................Low Speed Handpiece ......................iM3 Operator Safety Im3 Dental equipment should be operated by a qualified person—for animal use only For operator safety, it is recommended that safety goggles or visor, face mask and surgical gloves be worn during all procedures. -
Page 3: Im3 Unique Design Features
IEC female socket. (Optional on the GS, standard on the Deluxe) Adjustable Stainless Steel Stand The iM3 stand is made from high quality stainless steel and is height adjustable for work and ease of storage. (Optional on the GS, standard on the Deluxe) Wall Arm An air operated approx 54”/1.50m long arm is available... -
Page 4: Im3 Gs Deluxecontrol Panel Guide
Choice of Stand – Wall mounted air activated arm, Stainless Steel Height adjustable stand and Stainless Steel Height adjustable Stand with iM3 silent hurricane oil free compressor. iM3 is a licensed trademark of iM3 Inc. Corian ® is a registered trademark of the DUPONT Company iM3 Dental Systems... -
Page 5: Rear Of Im3 Gs Deluxe & Ultrasonic Scaler Coolant Outlet
(1) Ultra Sonic Coolant outlet – This will supply pressurized water/CLS to your ultrasonic dental scaler – A male fitting can be supplied by iM3 for your ultrasonic scaler water line. DO NOT use any coolant other than distilled water or CLS – any other solution may cause a blockage and will void your warranty. -
Page 6: Getting Started
(grey in colour) is connected to the quick disconnect fitting on the compressor outlet tap (on/off) (See page 23) Plug the unit into an electrical outlet with power cord supplied and turn power board ON. (see page 5) iM3 Dental Systems... - Page 7 80 psi (5.5Bar). If adjustment is required, please see page 27 for compressor pressure adjustment instructions. The pressure is set at the iM3 factory. Place the foot control pedal on the floor in front of the unit. The foot pedal operates the High and Low speed handpieces when depressed.
-
Page 8: Im3 Distilled Water And Cls Enviro Solution Supply
Here’s what Dr Jeanie Hawkins, DVM, Diplomat AVDC had to say about CLS Solution and the Auto Flush System….. “Having CLS Solution at my fingertips to flush periodontal pockets is a real plus. iM3® is the only Company to address the problem of cleaning the airlines and high speed handpieces.”... -
Page 9: Im3 Filtration System
Note: Failure to use distilled water will void the iM3 machine warranty. Note: The use of other chlorhexidine solutions may cause crystal deposits in handpieces and valves. -
Page 10: 3 Way Air/Water Syringe
(a) Air (b) Water (c) Outer Ring Housing Ultrasonic Scaler Coolant Outlet The Ultra Sonic coolant outlet is located on the back of the control box. Page 5 This outlet provides coolant under pressure for an ultrasonic scaler. iM3 Dental Systems... -
Page 11: Im3 Advantage Low Speed Handpiece And Attachments
Advantage Low Speed Handpiece L6200 The low speed handpiece features include a light weight balanced profile and smooth swivel action. Its vane type power system is quiet and vibration free. The motor accommodates both doriot or ISO heads and its powerful torque is suitable for all low speed procedures. - Page 12 5,000 r.p.m. The reducing attachment therefore allows the motor speed and torque to be maintained while reducing the polishing speed. iM3 disposable oscillating prophy angles are fitted to the SNC. They won’t trap muzzle hair, or generate excessive heat.
- Page 13 Advantage Low Speed Motor and 4:1 straight Nose Cone See operating instructions supplied with iM3 low speed handpiece Fitting R&R Prophy Cups (L7465) Place the R&R prophy angle over the chuck housing on the 4:1 SNC mak- ing sure the slot in the R&R lines up with the small screw in the side of the chuck housing.
-
Page 14: High Speed Handpiece
350,000 rpm. A very light touch is necessary as handpieces operates with very low torque and high speed. Pressure on the handpiece of 30gms (1ounce) or more, will cause the bur to stall. iM3 MD-30 Note: All handpieces should be lubricated prior to use with iM3 Dental Systems... -
Page 15: Im3 Dental System Bur Kits And Rodent Kits
Autoclavable Bur Kits There are three Bur Kits in the iM3 range, the F.G. Dog (Friction Grip), F.G. Cat and H.P. (Handpiece Burs). Each kit contains 10 burs of various sizes and applications. Each bur has been selected by a specialist Veterinary Dentist. iM3 Bur Kits come complete with a laminated suggested application guide. -
Page 16: Handpiece Pressure Adjustment
Low speed hand- piece holder 3 way syringe hold- Handpiece pressure adjustment knob PRESSURE IS READ ON THE HANDPIECE PRESSURE GAUGE Speed Handpiece 40 p.s.i. - Pre set by iM3 High Speed Handpiece 40 p.s.i. Pre set by iM3 iM3 Dental Systems... -
Page 17: Handpiece Lubrication
The lubricant is placed in the smaller of the 2 large holes. “Air entry hole” at the base of the handpiece. Maintenance instructions are printed on the back of the dental machine NOTE: DON’T FORGET TO DEPRESS THE FOOT CONTROL AFTER OILING TO ENSURE LUBRICANT REACHES THE TURBINES. iM3 Dental Systems... -
Page 18: Handpiece Sterilization
Immediately operate handpiece as described in the following step. 5. After lubricating items, insert bur into handpieces and operate for a few seconds to remove excess lubricant. Do not autoclave the high speed handpiece with a bur in the chuck. iM3 Dental Systems... -
Page 19: Handpiece Maintenance
Oil in smaller of use. and sealing 2 big holes. gasket. If worn Depress the 2-3 drops foot pedal for 10 seconds to Use iM3 MD-30 ensure the oil Lubricant. reaches the Turbine (page 17) iM3 High Oil AM or PM Replace turbine... -
Page 20: Silent Hurricane Oil Free Compressor
To ensure the Silent Hurricane Compressor Motor is not subjected to higher than normal operating temperatures, each iM3 Dental unit should be checked for air leaks at regular intervals, the easiest way to check for air leaks is to pump the compressor tank up to 110 p.s.i./7.5 BAR. - Page 21 Silent Hurricane Oil Free Compressor Circuit breaker located on the side of Black electrical box. Push to Reset Air to dental machine ON/ OFF tap is on when in line with outlet Compressor ON/OFF Pictured in Off/closed posi- pressure switch...
- Page 22 Danger High voltage used on this equipment. Isolate from mains before removing any covers, which should only be carried out by a qualified electrician . Ensure power outlet is adequately rated for this unit. iM3 Dental Systems...
-
Page 23: Silent Hurricane Compressor Maintenance
See Adjusting Regulator Air Pressure on Page 22. being delivered. Contact iM3 for your yearly compressor service kit. Compressor air regulator adjustment knob Air ON / OFF (valve pictured Air inlet quick discon- Compressor tank drain, located on-... -
Page 24: Cartridge Toggle Switches
To install a new toggle, locate the desired position, push and rotate a 1/4 turn clockwise. New toggles can be ordered from iM3 and installed by the user. Toggles can be installed in the 12, 3, 6 and 9 o'clock positions. If the toggle is in the wrong position simply remove and reposition. -
Page 25: Low Speed Handpiece
Chuck housing. iM3 Service Centre. 2. Improper lubrication. 2. See lubrication instruc- tions, on page 17. Only fit plastic iM3 R&R prophy angles Code L7465. iM3 Inc iM3 Pty Ltd 12414 NE 95th Street 21 Chaplin Drive...
