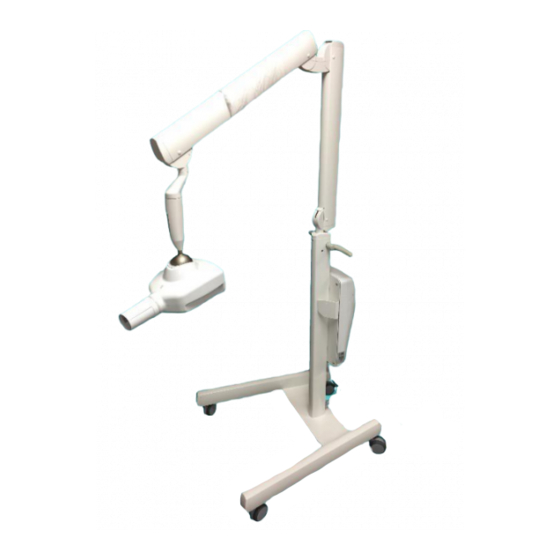

iM3 Revolution 4DC-Mobile Installation Manual
  1. Manuals
  2. Brands
  3. iM3 Manuals
  4. Dental equipment
  5. Revolution 4DC-Mobile
  6. Installation manual

iM3 Revolution 4DC-Mobile Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

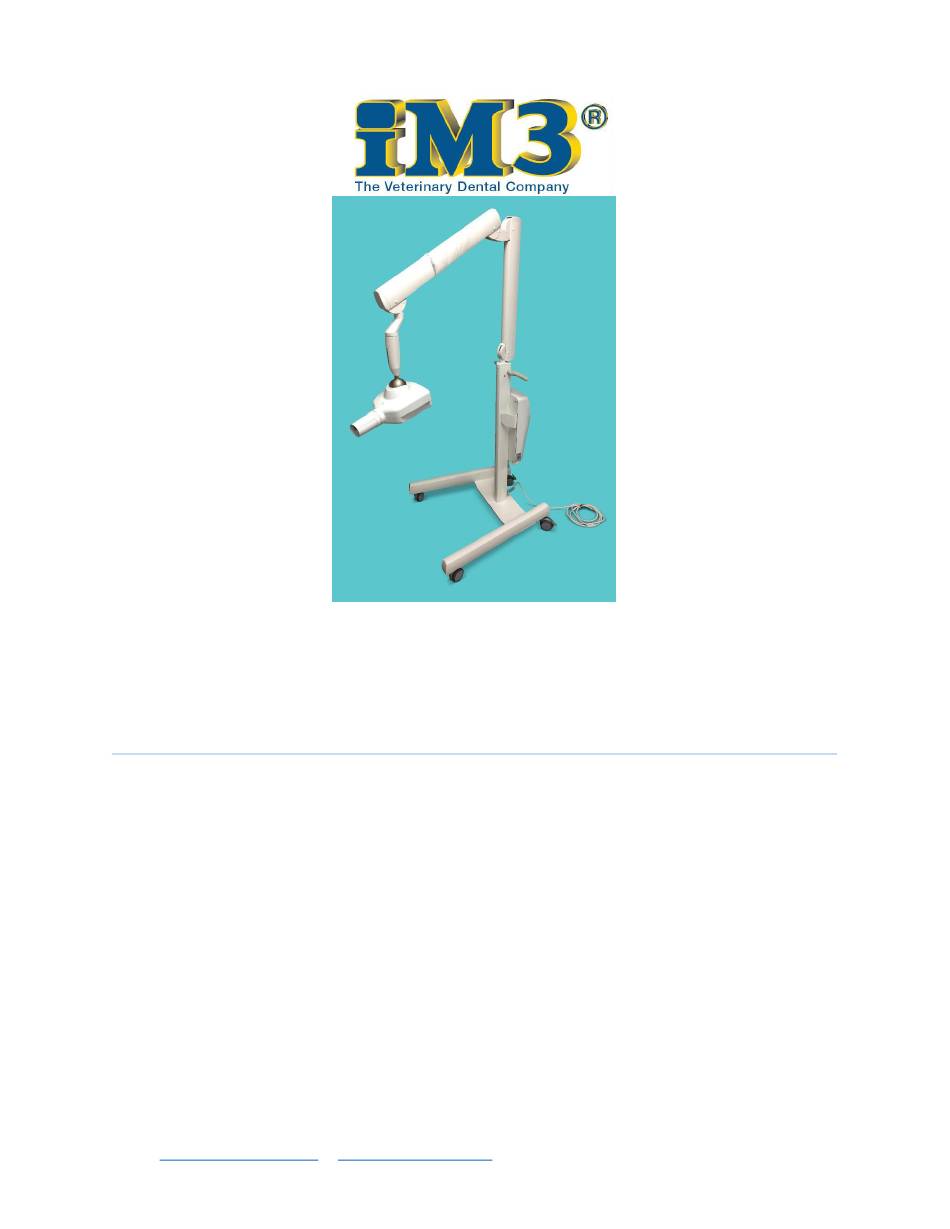

iM3 Revolution 4DC- Mobile Installation Manual
Revolution 4DC- Mobile
Installation Manual
IT Tech Support Team
: Alan Fennell
Jeremy Moran
iM3 Inc. – The Veterinary Dental Company
th
12414 NE 95
ST, Vancouver, WA 98682
Office Hours: M-F 7am-5pm PST.
Office Phone: 1-800-664-6348 IT Tech Support Line: 1-844-838-3092
For after hour support, please call IT Tech Support line.
Email:
afennell@im3usa.com
JMoran@im3usa.com
iM3 Revolution 4DC- Mobile Installation Manual, version 4.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Revolution 4DC-Mobile and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iM3 Revolution 4DC-Mobile

Summary of Contents for iM3 Revolution 4DC-Mobile

  • Page 1 12414 NE 95 ST, Vancouver, WA 98682 Office Hours: M-F 7am-5pm PST. Office Phone: 1-800-664-6348 IT Tech Support Line: 1-844-838-3092 For after hour support, please call IT Tech Support line. Email: afennell@im3usa.com JMoran@im3usa.com iM3 Revolution 4DC- Mobile Installation Manual, version 4.5...
  • Page 2 Step to include how to change WiFi Channel. Added Appendix 5. 10/18/19 Alan Fennell Updated Title/Footer/Header/Index. Update to Step 12. Added tube head/scissor arm functionality/performance test. Updated Actuator adjustment instructions. Updated Office Hours. iM3 Revolution 4DC- Mobile Installation Manual, version 4.5...
  • Page 3 Page 25 Appendix 1- Resync Remote to Tube Head Page 26 Appendix 2- Correcting Arm Drift Page 28 Appendix 3- Adjusting Actuator Assembly Page 30 Appendix 4- Conducting Calibration Test Page 31 Appendix 5- Changing WiFi Channel on Remote Control iM3 Revolution 4DC- Mobile Installation Manual, version 4.5...
  • Page 4 Revolution 4DC- Mobile Installation Manual Tools, Hardware, and Parts Required: 1. Tools 2.5mm Allen Wrench 3mm Allen Wrench 4mm Allen Wrench 5mm Allen Wrench 6mm Allen Wrench Flat Head Jeweler Screwdriver #2 Phillips Screwdriver Note 2. Hardware- : Please inventory hardware bag prior to installation.
  • Page 5 Revolution 4DC- Mobile Installation Manual Note 3. Parts. : Please inventory parts prior to installation. (Stand Cap will be in hardware package). A. Stand Cap B. Base Assembly C. Control Board D. Control Board Cover G. Tube head w/ E.
  • Page 6 Revolution 4DC- Mobile Installation Manual Parts Cont.

  • Page 7: Step 1- Assembling The Base

    Revolution 4DC- Mobile Installation Manual Step 1- Assembling the Base Prior to Installation of this step: See bottom right image for proper alignment of base plate to legs. Tools required: 6mm Allen Wrench Hardware required: 6 Base and Stand Bolts (Hardware- H).

  • Page 8: Step 2- Locking Casters

    Revolution 4DC- Mobile Installation Manual Step 2- Locking Casters Tools required: None Hardware required: None Parts required: None Description: Once base is assembled, flip the base back over with casters down and lock casters.
  • Page 9 Revolution 4DC- Mobile Installation Manual Step 3- Attaching Stand to Base Tools required: 6mm Allen Wrench Hardware required: Retaining pin (Hardware-E) and 2 bolts (Hardware-H ), Scissor arm Brass Ring (Hardware-U) Parts required: Stand with Power cable (Parts- E), Assembled base, Stand Cap (Parts- A). Styrofoam Top and Bottom Piece from Stand Box.
  • Page 10 Revolution 4DC- Mobile Installation Manual 3h...
  • Page 11 Revolution 4DC- Mobile Installation Manual Step 4-Mounting Control Board and Scissor Arm Tools required: 3mm Allen Wrench, 4mm Allen Wrench, 5mm Allen Wrench, Flathead Jeweler screwdriver Hardware required: Control board mounting screws (Hardware- L), Friction Element (Hardware- S) with Curved Spring Washers (Hardware- T), Set Screw (Hardware –R), and dog head set screws (Hardware-F).
  • Page 12 Revolution 4DC- Mobile Installation Manual...
  • Page 13 Revolution 4DC- Mobile Installation Manual...
  • Page 14 Revolution 4DC- Mobile Installation Manual 4l ----...
  • Page 15 Revolution 4DC- Mobile Installation Manual Step 5- Mounting the Handles to Stand Tools required: 2.5 mm Allen Wrench Hardware required: Handle screws (Hardware- M), Handles (Hardware-D) Parts required: None Description: 1. Slide hollow end of handles over mounting bars so that the contoured end is facing back.
  • Page 16 Revolution 4DC- Mobile Installation Manual Step 6- Connecting ground and power ports Tools required: Flat head Jeweler screwdriver. #2 Phillips Screwdriver Hardware required: None Parts required: None Description: Grounding- Connect ground cables as shown making sure that grounding wires are faced towards center of mounting plate.
  • Page 17 Revolution 4DC- Mobile Installation Manual Note: When connecting this connector (6c), it is ok if wires connect Blue to Blue and Brown to Brown, or Blue to Brown and Brown to Blue as shown below.
  • Page 18 Revolution 4DC- Mobile Installation Manual...
  • Page 19 Revolution 4DC- Mobile Installation Manual Revolution Main motherboard layout fully assembled: Port No. Description Ignition switch connection Mains power supply (From left to right: Brown, Yellow/Green, Blue) Contact for external lamp (max 2A- clean contact) External emission button Arm cable (head)
  • Page 20 Revolution 4DC- Mobile Installation Manual Step 7 – Securing Power Cord and Cover Tools required: #2 Phillips Screw driver Hardware required: 4” Zip tie (Hardware-J), Cover Flaps (Hardware-B) Parts required: Control cover (Parts-D) Description: 1. Thread zip tie to blue tie anchor on circuit board plate. Coil power cable. Secure cable with zip tie as shown (7a).
  • Page 21 Revolution 4DC- Mobile Installation Manual Step 8 – Attaching Generator Head and Collimator Tool required: 4mm Allen Wrench Hardware required: Generator Head Screws w/ washers (Hardware- Q), Generator Head Neck Covers (Hardware-A). Parts required: Generator Head (Parts-G) Description: Carefully remove Velcro from scissor arm with one hand and secure other arm to scissor arm with the other hand.
  • Page 22 Revolution 4DC- Mobile Installation Manual Lastly, fasten generator head neck covers together (8e-8f). Fully Assembled Xray Generator...
  • Page 23 Revolution 4DC- Mobile Installation Manual Step 9- Application of Warning Labels Tools Required: None Hardware Required: Warning Labels (P) Parts Required: None Description: Apply the “do not step” and “do not push” warning labels to the base crossmember and pantograph...
  • Page 24 Description: If after installation you receive a low/high voltage error message on remote control and/or if remote latency has increased beyond limits as indicated in technical manual, a calibration of the x-ray tube head may be required. Please call iM3...

  • Page 25: Additional Information

    Revolution 4DC- Mobile Installation Manual Additional Information Mounting Remote to Wall: Mount remote control mount to wall using drywall anchors (Hardware O) and screws w/ Note : Use the M4 screw that is located in with the batteries for remote to permanently washers (Hardware N).
  • Page 26 Revolution 4DC- Mobile Installation Manual Using the Revolution 4DC Use the touch pads on either side of the light to unlock the head from the sphere for positioning. When the sphere is unlocked, the LED light will turn blue.
  • Page 27 Revolution 4DC- Mobile Installation Manual Revolution 4DC Controller Tutorial The controller is cordless and runs off 6 radio frequencies. To turn it on, push any button except for the white circle “shoot” button. If the head of the generator is off, the controller will time out after a short period and turn off. It will also time out if the head is on, but it’ll take longer.

  • Page 28: Appendix 1: How To Resync Remote To Tube Head

    Revolution 4DC- Mobile Installation Manual Appendix 1: How to Resync Remote to Tube Head Revolution 4DC Remote Control Sync Instructions If the remote control or the generator head needs to be replaced it is only necessary to associate the remote control with the head. To do this, you first need to set the head in combination mode (an operation that can be done in two different way) then send a recognition signal from the heads remote control.

  • Page 29: Appendix 2- Correcting Arm Drift

    Revolution 4DC- Mobile Installation Manual Appendix 2- Correcting Arm Drift Correcting Vertical Drift To Adjust arm A: Remove end cap, use 8mm Allen wrench (1) to turn adjustment screw clockwise to increase spring tension (if arm is drifting down) or counter-clockwise to decrease tension (if arm is drifting up).
  • Page 30 Revolution 4DC- Mobile Installation Manual Correcting Horizontal Drift: Description: Using the 3mm allen wrench, adjust tension on dog head screws to set arm limits to proper limits. Description: Using 5mm allen wrench, adjust tension on set screw to apply less (counter-clockwise) or more (clockwise) pressure on scissor arm to correct horizontal drifting of arm.

  • Page 31: Appendix 3: Adjusting Clutch Assembly

    Revolution 4DC- Mobile Installation Manual Appendix 3: Adjusting Clutch Assembly Turn the head of the generator vertical (or as much as you can), remove collimator. Next remove the white caps using flat head jeweler screwdriver. Next remove panel stop ring.
  • Page 32 Revolution 4DC- Mobile Installation Manual Appendix 3 Cont. Work on grub screw A with a 4mm Allen Wrench to adjust the pressure the brake applies on the ball. Make slight adjustment then try engaging touch pads. Repeat a few times. Counter clock wise rotation on Grub A will loosen head if tube head is locked and will not rotate.

  • Page 33: Appendix 4: How To Conduct Calibration Test

    Revolution 4DC- Mobile Installation Manual Appendix 4: How to Conduct Calibration Test...

  • Page 34: Appendix 5: How To Change Wifi Channel On Remote Control

    Revolution 4DC- Mobile Installation Manual Appendix 5: How to Change WiFi Channel on Remote Control If the remote control drops connection and resyncs, or you receive an E302 error code message, chances are the remote is having signal interference from other Wi-Fi devices. To change channel on 2.4GHz band, proceed as follows:...
  • Page 35 Revolution 4DC- Mobile Installation Manual Appendix 5 Cont. 4. T06: SELECT WIRELESS CHANNEL Pressing keys at the same time will enable or disable the icon If icon is not displayed in T06 menu, please enable this setting. This setting will check whether selected channel is busy and will set to the first free channel available.
