iM3 Revolution 4DC- Mobile Installation Manual
Step 6- Connecting ground and power ports
Tools required: Flat head Jeweler screwdriver. #2 Phillips Screwdriver
Hardware required: None
Parts required: None
Description:

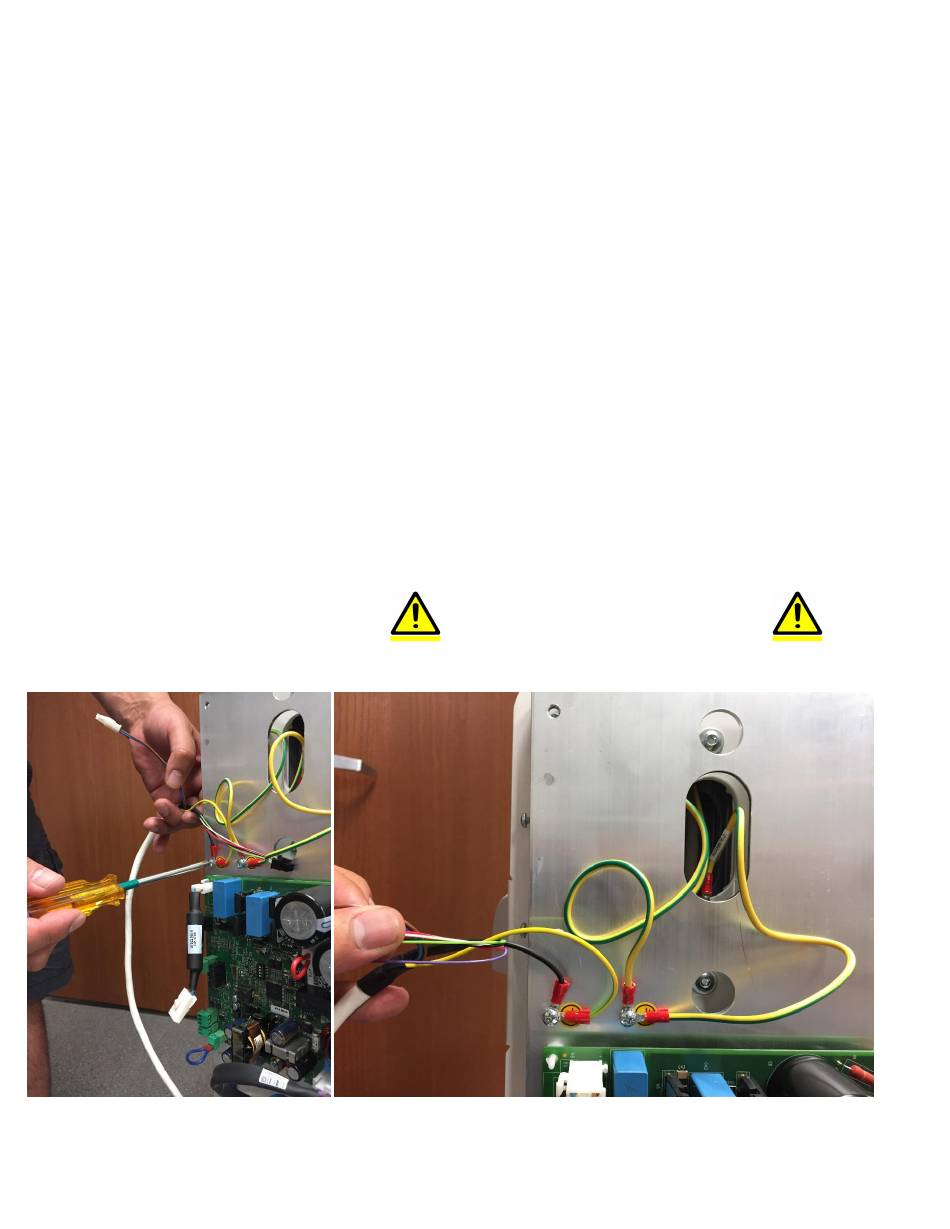

Grounding- Connect ground cables as shown making sure that grounding wires are faced towards center of mounting
plate.
1. Secure the two larger yellow and green grounding wires on right grounding port with Philips head screwdriver.
2. Secure the small yellow and green and black grounding cables to the left grounding port with Phillips head
screwdriver (6a).
Power- Connect black, white, and green power connectors to circuit board.
3. Connect black 6pin male power connector from scissor arm to black 6pin female port on circuit board as shown
(6b).
4. Connect white 3pin male power connector from scissor arm to white 3pin female port on circuit board (6c).
5. Remove green connector on bottom right of circuit board. Push in (From left to right), Left (Live Wire), Middle
(Ground), Right (Neutral) cables from stand power cable to green connector. Secure with flathead retaining
screws using flat head jeweler screwdriver on green connector. Once secured, plug in green connector to
corresponding port on circuit board (6d-6f).
6a
Note
: Measure at wall outlet for live wire.
