Using the Revolution 4DC

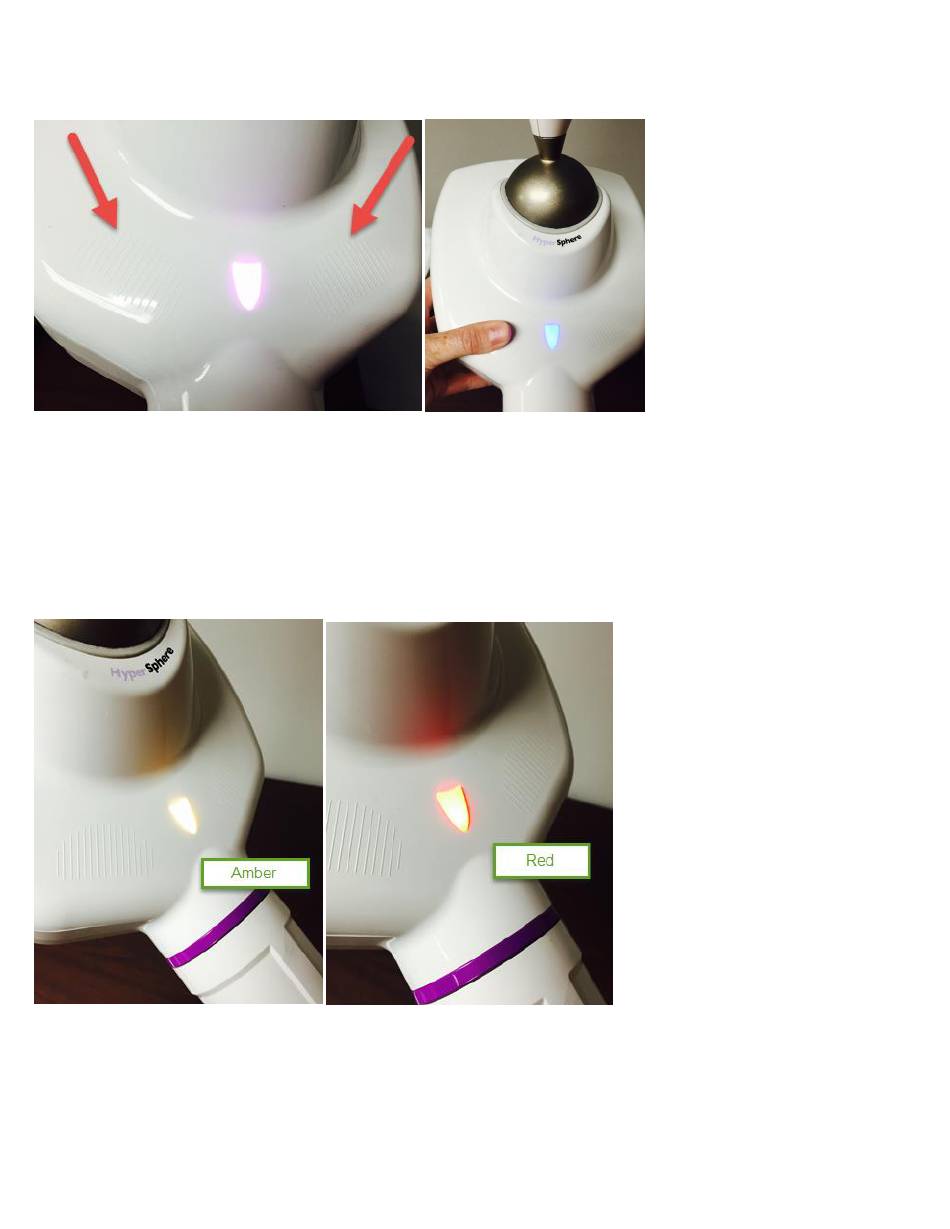

Use the touch pads on either side of the light to unlock the head from the sphere for positioning. When the sphere is unlocked,
the LED light will turn blue.
Once you have your position, remove your hands from the touch pad to lock position into place.
Note: These are touch pads, you do not have to push. Only one side needs to be touched. Suggest using one hand for the
touch and the other hand to put into position and hold until the head is locked into place. When doing minor adjustments,
make sure to use one hand to hold the head while using the other hand for the touch pad. If the head is not supported, and
the touchpad is touched, the head will unlock and fall into a 90 degree angle.
When actively taking an image, the LED light will turn amber. If there's an error, or it overheats, the LED light will be red.
