INSTRUCTIONS FOR USE
Aluminium wheelchair
Product code: E1

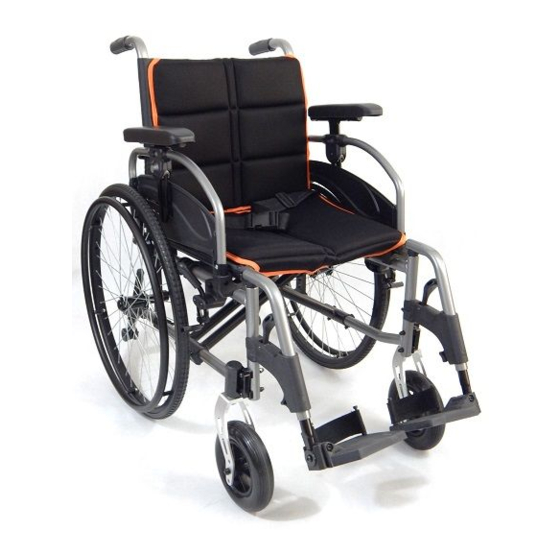

1. Characteristics
The wheelchair is made of light aluminium frame reinforced with
double cross bar. Additionally upholstered backrest and seat are made
of air-permeable material. Flip-up, detachable and height adjustable
armrests are made in profiled version. The wheelchair is equipped with
quick release function allowing fast dismantling of wheels, backrest
angle adjustment, centre of gravity adjustment on the front and rear
wheels and with anti-tipping wheels. Footrests are available in a swing
away version. The wheelchair is supplied with pneumatic rear wheels
24'' and solid rubber front wheels 8'' in diameter.
The set includes:
• Frame
• Backrest and seat cushion
• Right footrest with footplate
• Left footrest with
footplate
• Pump
• Set of keys for
wheelchair
• assembly/dismantling

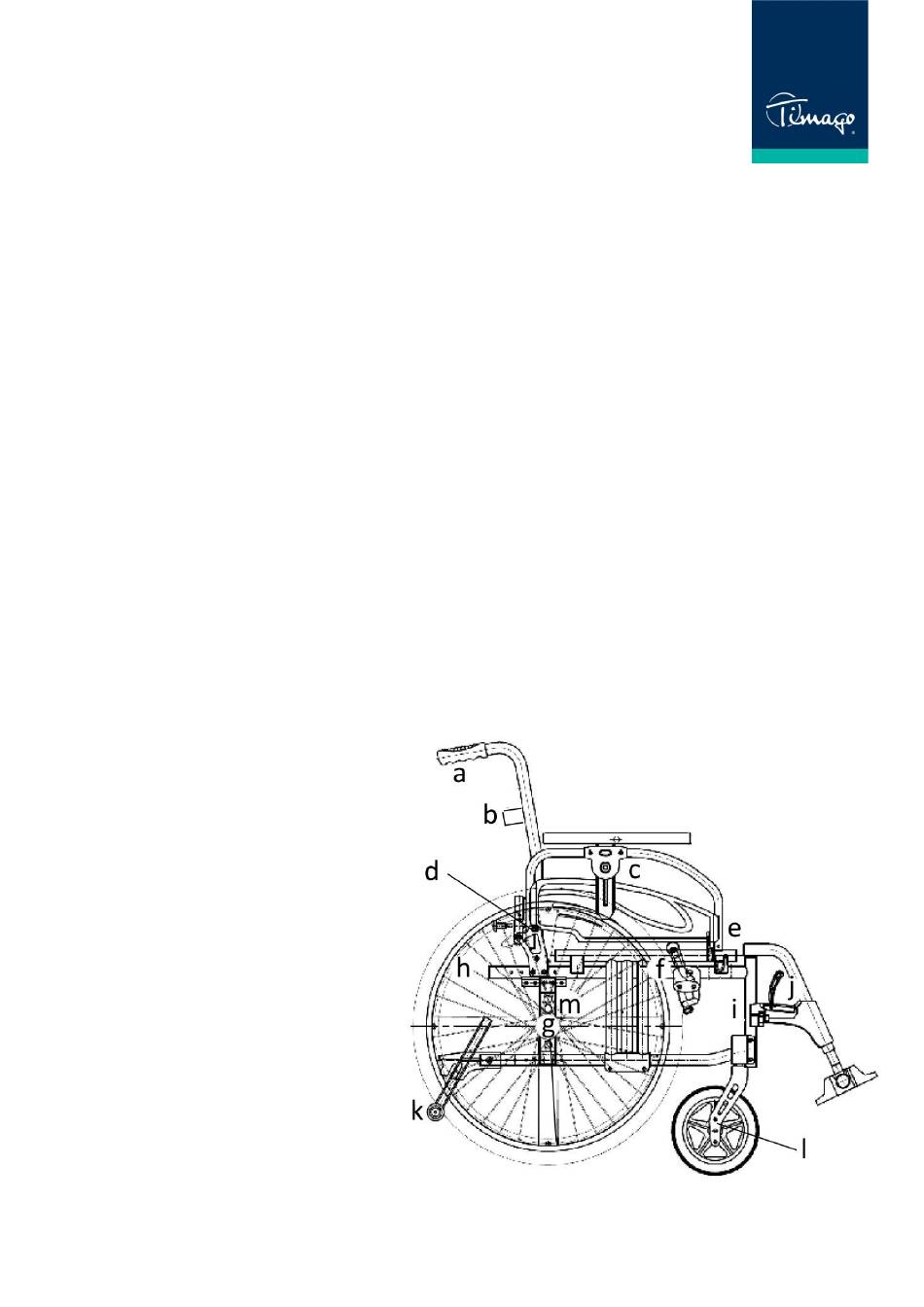

Elements of the wheelchair:
a. Hand grip
b. Transverse stabilization
c. Armrest height
adjustment
d. Backrest angle
adjustment
1
