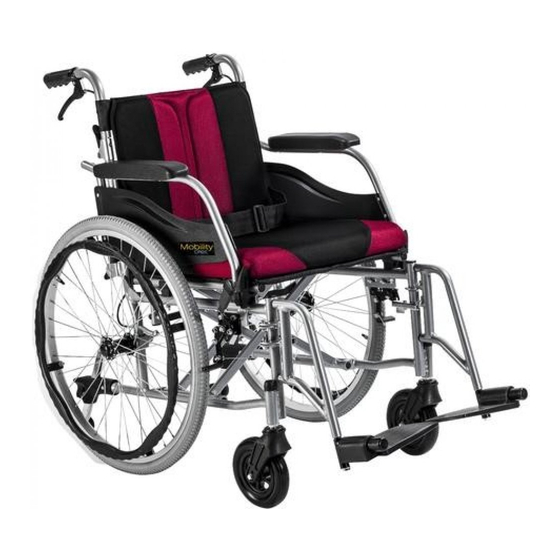

Timago TGR-R WA C2600 User Manual

Aluminium wheelchair
Hide thumbs

Advertisement

Quick Links

Download this manual
USER MANUAL
Aluminium wheelchair
Product code: TGR-R WA C2600
Dear Customers,
Thank you for purchasing our product. We hope that the equipment you have selected will meet
your expectations. We would like to share some important information with you.
Timago International Group is a Polish company which distributes medical, rehabilitation and
orthopaedic products to pharmacies and medical stores.
Our mission is to ensure your comfort by offering safe, functional, and high-quality products.
We have many years of experience in this sector. Timago products reach a wide range of users in
Poland and throughout Europe through our distributors (medical retailers).
Timago's company culture promotes openness to your needs. Our goal is to promote safe and
correct use of our products for treatment and rehabilitation in order to improve comfort and quality
of life.
We invite you to access our website for more information: timago.com.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TGR-R WA C2600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Timago TGR-R WA C2600

Summary of Contents for Timago TGR-R WA C2600

  • Page 1 Our mission is to ensure your comfort by offering safe, functional, and high-quality products. We have many years of experience in this sector. Timago products reach a wide range of users in Poland and throughout Europe through our distributors (medical retailers).
  • Page 2 Introduction Prior to use of our products you should inspect the equipment for any defects which may have occurred during transport. If this happens, please contact your retailer. Then, please read this instruction which includes important information for the user. Please contact us if you have any questions concerning the use of the equipment.
  • Page 3 Elements of the wheelchair: a. Hand grip b. Attendant brake c. Backrest lock d. Armrest e. Locking pin of the armrest f. Wheel lock g. Handrim h. Quick release Assembly pin of the footrest Footrest k. Adjustment of the centre of gravity on the front wheels Anti-tip wheels Application...
  • Page 4 Step 3. Adjustment of footplates Adjust the right and the left footplate by tightening the screw which is placed at the bottom of footrests with included key. Proper space should be left between the footplates and the ground as footplates set too low may cause difficulties in overcoming such obstructions as curb. Adjust the footplates so that the angle between trunk and thighs is 90 (optimum sitting position is provided to the user, then).
  • Page 5 PUMPING THE WHEELS The wheelchair was equipped with pneumatic rear wheels 22’’ in diameter and swivel, PU • front wheels 6’’ in diameter (tubeless tyre). Remember to control the air pressure in both wheels and check the condition of the tyres in search of abrasions, cuts or surface depletion. •...

  • Page 6: Wheelchair Handling

    ADJUSTMENT FOR PATIENTS AFTER AMPUTATIONS IN THE LOWER LIMBS AREA Note! For professional adjustment, ask your retailer or other person who has appropriate knowledge and qualifications. Do not adjust inclination angle of the seat by yourself. • To adjust the centre of gravity, unscrew fixing screw in right and left wheel. Then, set the seat inclination by moving fixing axis of the wheel upwards or downwards, the same in both wheels.
  • Page 7 Step 4. Setting the wheels Front wheels should be positioned in the direction of riding. Step 5. Getting in the wheelchair The wheelchair should be located at the place of changing the seat as close as possible. The wheelchair should touch the bed or other seat being used, rear wheel and front element of the frame.
  • Page 8 Do not use the wheelchair under the influence of alcohol or medicine that may impair the • ability of machine or vehicles operation. It concerns both the user of the wheelchair and the accompanying person. Note! Do not exceed maximum capacity of the wheelchair! Note! Do not transfer the wheelchair by grasping the armrests or footrests.
  • Page 9 Step 5. The wheelchair was put in motion. Straighten up and grab the handrims again. Step 6. Straighten up and make next cycles of movements looking ahead. Braking To brake, stop the handrims with your hands gradually or make a slight backward move. •...
  • Page 10 Riding down the hill, step • This maneuver should be done while riding backwards. • The silhouette should be leaned forwards in order to properly move the center of gravity while the speed of ride should be controlled by firm grip on the handrims. •...
  • Page 11 Riding up the step • Place the wheelchair backwards to the step. • Pull both hand grips towards you in order to lift the front wheels from the ground. Pull the rear wheels over the edge of the step so that the front wheels can be placed on the ground again.
  • Page 12 Note! Do not make any repairs or modifications by yourself. Note! Do not adjust the angle of the seat by yourself. NOTE! Timago International Group does not bear responsibility of improper moving in the wheelchair, failure to comply safety regulations and misuse.
  • Page 13 Before each use: check the condition of mechanical components, correct assembly of • removable components, proper work of wheel locks, tyre condition, and proper unfolding of the wheelchair. Every 4 weeks: check the condition of mechanical components including proper greasing, •...
  • Page 14 10. Recommended products Products offered by Timago International Group include: Orthoses and joint stabilizers  Manual and special-use wheelchairs  Walkers and rollators  Crutches and canes  Rehabilitation beds  Ancillary and sanitary equipment  Anti-decubitus equipment and accessories ...
