INSTRUCTIONS FOR USE
Aluminium wheelchair
Product code: T101
1. Characteristics

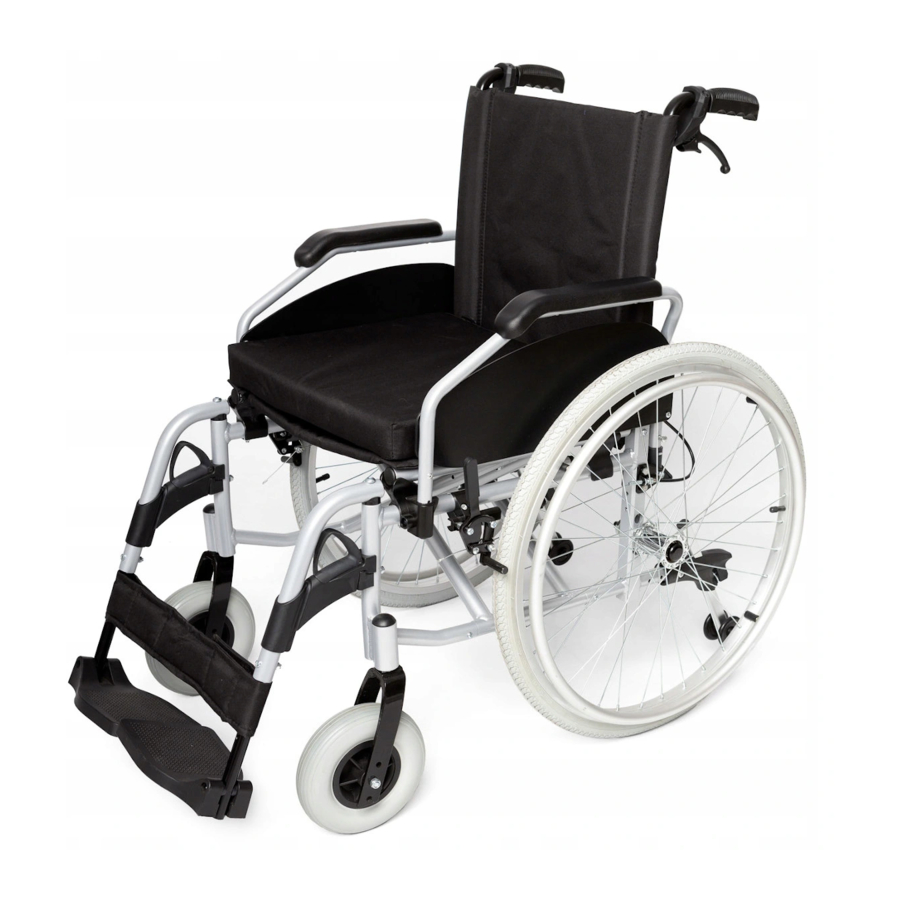

The wheelchair is made of light aluminium frame reinforced with
double cross bar. It possesses nylon-cotton seat with additional
cushion and belt for the user. Flip-up armrests are made in profiled
version. The wheelchair is equipped with quick release function, anti-
tip wheels and folding backrest. Footrests are available in a swing away
version. The wheelchair is supplied with pneumatic rear wheels (24'')
with aluminium handrim and solid rubber front wheels 8'' in diameter.
For patients after amputations, there is a possibility to adjust the
centre of gravity on the front wheels. The model T101 is additionally
equipped with attendant brakes.
The set includes:
• Frame with seat
• Right footrest with footplate
• Left footrest with footplate
• Protective strap
• Pump
• Set of keys for wheelchair
assembly/dismantling

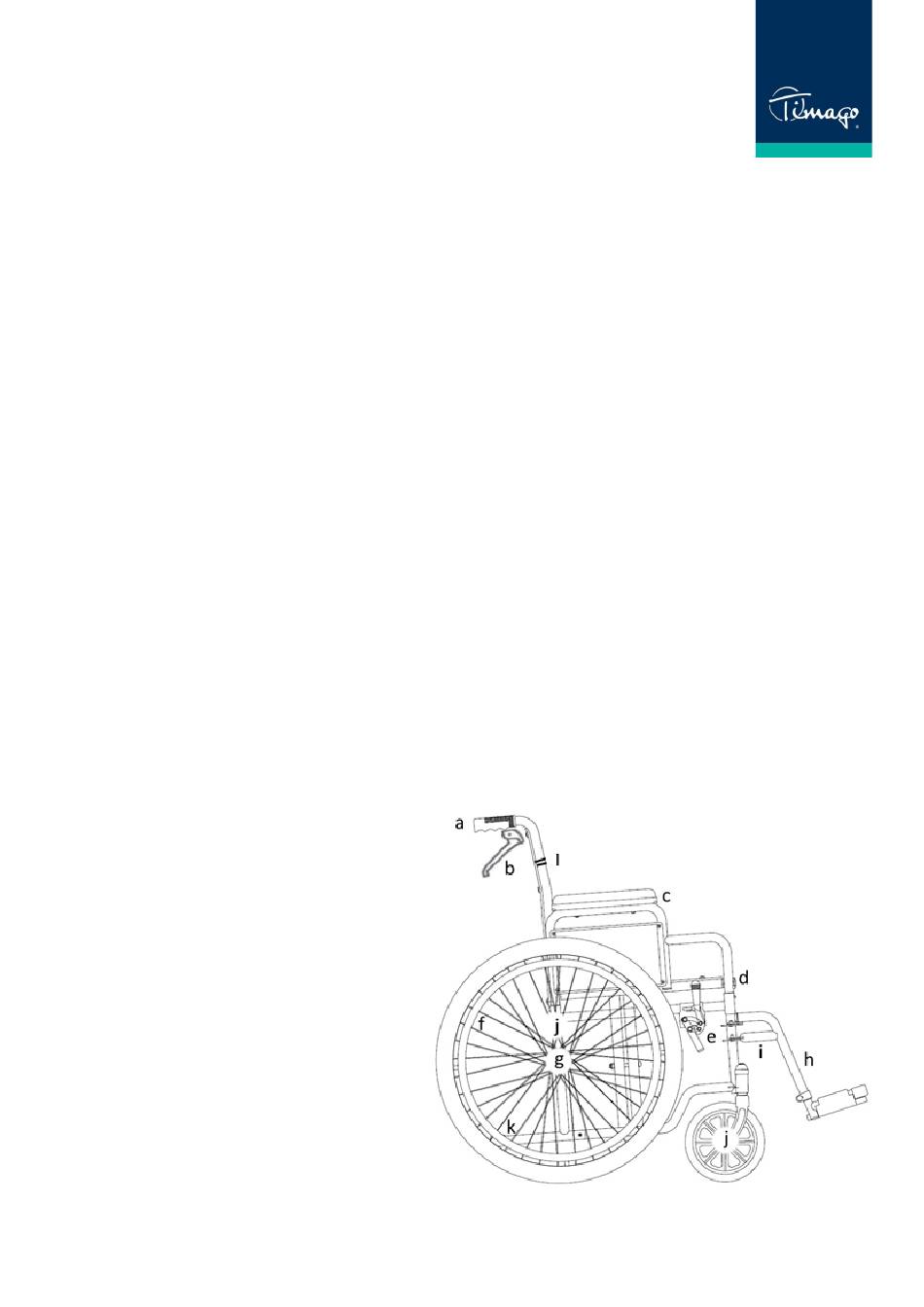

Elements of the wheelchair:
a. Hand grip
b. Attendant brake
c. Armrest
d. Locking pin of the armrest
e. Wheel lock
Strona 1 z 7
Advertisement
Table of Contents
Related Manuals for Timago T101
Summary of Contents for Timago T101
- Page 1 8’’ in diameter. For patients after amputations, there is a possibility to adjust the centre of gravity on the front wheels. The model T101 is additionally equipped with attendant brakes. The set includes: •...
- Page 2 f. Handrim g. Quick release h. Footrest i. Footrest lever j. Adjustment of the centre of gravity k. Anti-tip wheels l. Backrest lock 2. Application The wheelchair is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility.
- Page 3 Step 4. Assembly of protective strap Put the protective strap on the footrest as it prevents user’s legs from sliding down under the wheelchair from footplates. Note! Do not use the wheelchair without protective strap. Step 5. Adjustment of anti-tip wheels In order to adjust anti-tip wheels, which are located at the back of the wheelchair, pull the lock, move the wheels upwards or downwards, and select appropriate height.
- Page 4 • To balance the air pressure in the wheels, twist off the cap of the valve, insert the pump into the valve (included in the set), and pump the air. FOLDING BACKREST • To fold the backrest, simultaneously pull downwards the locking elements which are located under the hand grips at the back of the backrest.
- Page 5 wheel lock shoe blocks the wheel firmly and the lever does not face excessive resistance. • In case of excessive resistance, pull the handle forwards slightly by twisting off the locking screw which is located on the other side of the wheel lock (from the inside of the wheelchair).
- Page 6 Frame colour silver * depends on seat width 5. Notes Timago International Group does not bear responsibility of improper moving in the wheelchair, failure to comply safety regulations and misuse. 6. Maintenance Carry out the maintenance of the wheelchair components regularly: •...
- Page 7 The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul.
