INSTRUCTIONS FOR USE
Wheelchair with toilet function
Product code: FS 681 / FS 681U

1. Characteristics

Wheelchair with toilet function is made of chromed steel frame. The
seat is available in two versions: full seat with toilet seat (FS681) or full
seat with wedge without toilet seat (FS681U). They are both made of
plastic material resistant to dirt and water. The wheelchair is equipped
with flip-up and detachable armrests in a long version. The wheelchair
is supplied with solid rubber wheels and durable spokes. The footrests
are available in standard swing away version. Rear wheels are 22'' and
front wheels are 6'' in diameter. The wheelchair is additionally
equipped with removable toilet bucket.
The set includes:
• Frame with seat
• Right footrest with footplate
• Left footrest with footplate
• Protective strap
• Set of keys for wheelchair
Assembly/dismantling

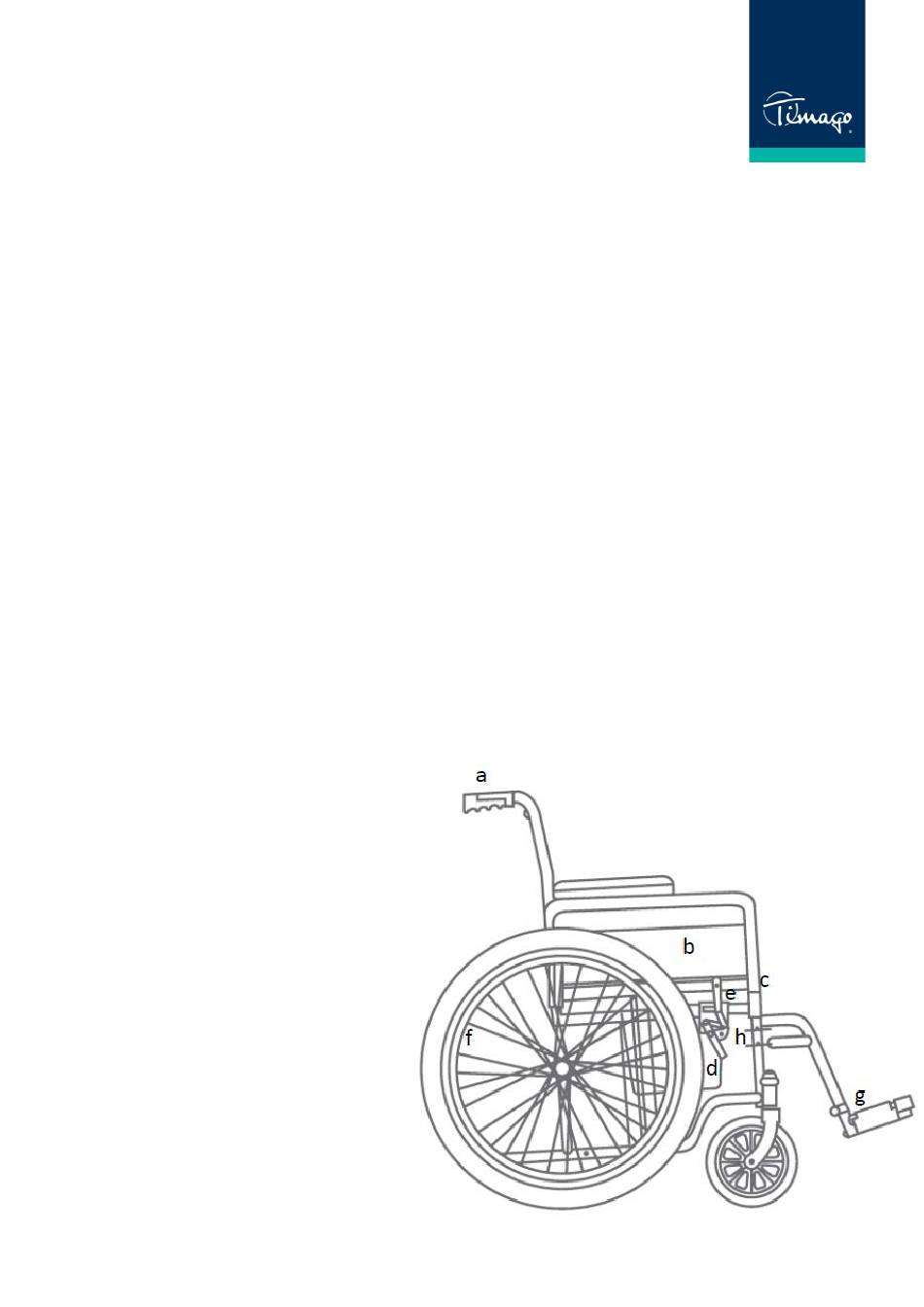

Elements of the wheelchair:
a. Hand grip
b. Armrest
c. Locking pin of the armrest
d. Toilet bucket
e. Wheel lock
f. Handrim
g. Footrest
h. Assembly pin of the footrest
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS 681 and is the answer not in the manual?

Questions and answers

Summary of Contents for Timago FS 681

  • Page 1 INSTRUCTIONS FOR USE Wheelchair with toilet function Product code: FS 681 / FS 681U 1. Characteristics Wheelchair with toilet function is made of chromed steel frame. The seat is available in two versions: full seat with toilet seat (FS681) or full seat with wedge without toilet seat (FS681U).
  • Page 2 2. Application Wheelchair with toilet function is designed for people who have problems with unassisted moving and for patients with dysfunctions and reduced mobility. This self propelled wheelchair can also be pushed by an accompanying person. It is suitable for indoor use only. The wheelchair functions as a toilet owing to the toilet bucket located under the seat.
  • Page 3 Step 4. Adjustment of footplates Adjust the right and the left footplate by tightening the screw placed at the bottom of footrest with included key. Adjust the footplates so that the angle between trunk and thighs is 90 Step 5. Assembly of protective strap Put the protective strap on the footrests as it prevents sliding down user’s legs under the wheelchair from footplates.
  • Page 4 23 cm Frame colour silver-chrome 5. Notes Timago International Group does not bear responsibility of improper moving in the wheelchair, failure to comply safety regulations and misuse. 6. Cleaning and maintenance Carry out the maintenance of the wheelchair components regularly:...
  • Page 5 • The upholstery and the cushion can be cleaned with damp (not wet) cloth and cold or warm water, without the use of detergents. Difficult stains can be cleaned with a sponge. Do not soak the upholstery too much. Dry away from heat sources. •...
  • Page 6 The manufacturer checked for compliance with essential medical devices requirements. Our complete line of products is available from our distributors. Learn more at: www.timago.com. Thank you for choosing Timago! Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul.
