Our mission is to ensure your comfort by offering safe, functional, and high-quality products. We have many years of experience in this sector. Timago products reach a wide range of users in Poland and throughout Europe through our distributors (medical retailers).
Page 2
Introduction Prior to use of our products you should inspect the equipment for any defects which may have occurred during transport. If this happens, please contact your retailer. Then, please read this instruction which includes important information for the user. Please contact us if you have any questions concerning the use of the equipment.
Page 3

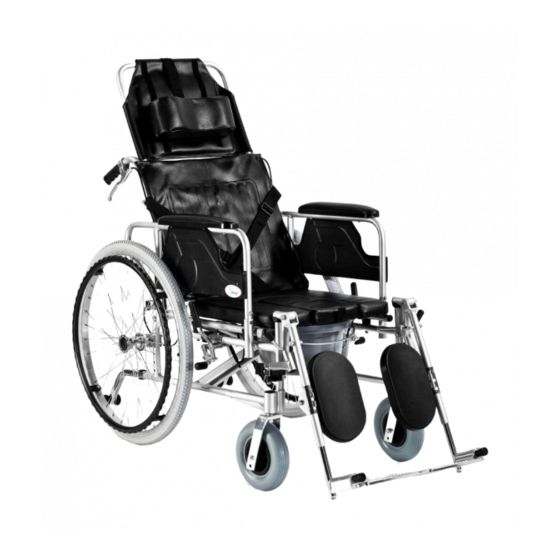

Elements of the wheelchair: a. Hand grip b. Function of backrest inclination c. Armrest d. Locking pin e. Toilet bucket Wheel lock g. Handrim h. Calf pad Footrest Mounting element of the footrest k. Footrest lever Adjustment of the centre of gravity m.
Page 4
Assembly and general recommendation for use Note! Follow the information contained in this manual while assembly and adjustment. Users with reduced mobility may need help from a third person who has appropriate skills. Note! Do not sit in the wheelchair or use it in any other way before completion of assembly. UNFOLDING AND ASSEMBLY Step 1.
Page 5
Step 4. Grab the straps which are on the both sides of seat frame and pull them upwards until the frame of the wheelchair is folded. WHEEL LOCKS To lock the wheels, push the wheel lock lever forwards until the wheel is fully blocked •...
ADJUSTMENT FOR PATIENTS AFTER AMPUTATION IN THE LOWER LIMBS AREA Note! For professional adjustment, ask your retailer or other person who has appropriate knowledge and qualifications. Do not adjust inclination angle by yourself. • To adjust the centre of gravity, unscrew the fixing screw in right and left wheel. Then, set the seat inclination by moving the fixing axis upwards or downwards, the same in both wheels.
Step 2. Engaging the wheel lock Engage the wheel lock when getting in or out the wheelchair. Step 3. Setting the footplates The footplates should be in vertical position when getting in or out the wheelchair. Do not use the footplates as a support while getting in or out the wheelchair due to the risk of wheelchair tipping over and falling.
Page 8
Remember that a heavy object hung on the backrest may change the centre of gravity. • • Be particularly careful when the accompanying person drives into a curb, a stair or some other obstacles. It is essential not to lean over the wheelchair beyond its point of gravity as the wheelchair may tip over.
Page 9
Note! A help from the third person is required to overcome difficult ground barriers (ramps, steps, stair, etc.) Note! First independent attempts should be undertaken under the security of the third person! Moving forwards. First steps Step 1. Place hands on handrims. Step 2.
Page 10
USAGE WITH THE HELP OF THE ACCOMPANYING PERSON The wheelchair can be pushed by the accompanying person who holds hand grips placed on the backrest. The accompanying person must obey the following rules: Before the ride, make sure that no user’s body part or piece of clothing is exposed to moving •...
Page 11
To transport the wheelchair upwards or downwards, one person grabs hand grips and pull • the wheelchair towards him/her, slightly lifting front wheels. • The second person grabs the frame from the front (remove the footrests for this purpose) and assisting each other, pull or lower the wheelchair. •...
Page 12
Note! Do not make any repairs or modifications by yourself. Note! Do not adjust the angle of the seat by yourself. NOTE! Timago International Group does not bear responsibility of improper moving in the wheelchair, failure to comply safety regulations and misuse.
Page 13
Before each use: check the condition of mechanical components, correct assembly of • removable components, proper work of wheel locks, tyre condition, and proper unfolding of the wheelchair. Every 4 weeks: check the condition of mechanical components including proper greasing, •...
Page 14
Ancillary and sanitary equipment, disposable medical equipment Electro-medical equipment Our complete line of products is available from our distributors. Learn more at: timago.com. Manufacturer: Timago International Group Spółka z o.o. i Spółka – Spółka komandytowa ul. Karpacka 24/12 43-316 Bielsko-Biała, Polska...
