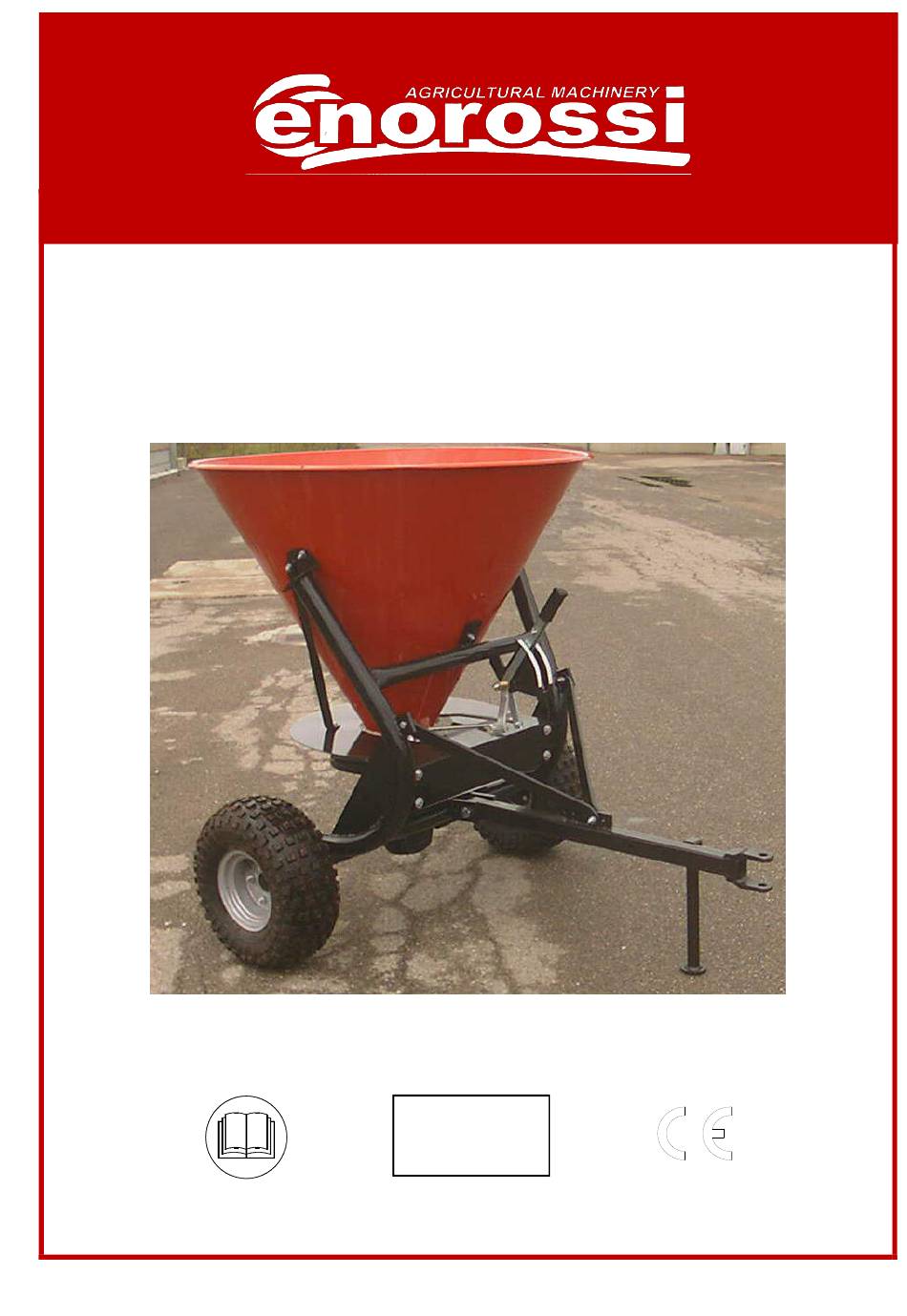

PULL TYPE FERTILIZER SPREADER
mod. ENOSPE US
TRANSLATION
OF THE ORIGINAL
INSTRUCTIONS
USE AND MAINTENANCE MANUAL
issue 1 - 07/15
ENOAGRICOLA ROSSI s.r.l. - Via Cortonese s.n. - Calzolaro di Umbertide 06018 - Pg Italia
Tel. (39) 075-930 22 22 Telefax (39) 075-930 23 28 -enorossi@enorossi.it info@enorossi.it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for enorossi ENOSPE US
Summary of Contents for enorossi ENOSPE US
- Page 1 TRANSLATION OF THE ORIGINAL INSTRUCTIONS USE AND MAINTENANCE MANUAL issue 1 - 07/15 ENOAGRICOLA ROSSI s.r.l. - Via Cortonese s.n. - Calzolaro di Umbertide 06018 - Pg Italia Tel. (39) 075-930 22 22 Telefax (39) 075-930 23 28 -enorossi@enorossi.it info@enorossi.it...
-
Page 2: Ec Declaration Of Conformity
ENOAGRICOLA ROSSI s.r.l. Via Cortonese s.n Calzolaro di Umbertide 06018 Pg Italia Tel. (39) 075-930 22 22 - Telefax (39) 075-930 23 28 e-mail: enorossi@enorossi.it - info@enorossi.it EC DECLARATION OF CONFORMITY (Annex IIA - Machinery Directives 2006/42/EC) The Manufacturer ENOAGRICOLA ROSSI s.r.l. -
Page 3: Table Of Contents
CONTENTS EC DECLARATION OF CONFORMITY GENERAL SAFETY REGULATIONS SAFETY DECALS SAFETY RULES AND PREVENTION OF ACCIDENTS EQUIPMENT ASSEMBLY REGULATING OF THE FERTILIZER SPREADER SERIAL NUMBER AND IDENTIFICATION PLATE MAINTENANCE SERVICING SPARE PARTS SPREADING CHART FOR FERTILIZER SPREADING CHART FOR SEEDS... -
Page 4: General Safety Regulations
General Safety Regulations In addition to the safety regulations given in this manual it is imperative that the general rules for safety and hygiene at work be respected at all times, as well as the public highway code. Before commencing work with the machine it is necessary to become familiar with the operation of the controls and operating devices. -
Page 5: Safety Decals
Safety Decals Adhesives and plates with symbols on them are applied on the equipment. These safety symbols are to assist the operator in order to avoid possible risks of accidents during working, servicing and storage. This manual will explain the following symbols: Symbol Description Use protection gloves... -
Page 6: Safety Rules And Prevention Of Accidents
Safety rules and prevention of accidents The operator of this fertilizer spreader must be competent and being good physical and visual conditions and must be able to co-ordinate the different functions. Moreover he must apply the established rules and act with the necessary precaution while carrying out a job, so that he does not expose himself or other people to danger. -
Page 7: Equipment Assembly
US Assembly Assemble the gearbox (2) to the frame (1), by means of screws (3) and nuts (4) and tighten them. Now insert the disc (5) on the gearbox (2) and fix it by means of pin (6) on the hole placed under the disc. - Page 8 of bolts (22) and nuts (23). Mount the standing (24) and stop it by adding the copper pin (25). So take the two connecting rods (13) and fix by means of bolts (14) (15) and nuts (16) (17).
- Page 9 Next, assemble the disengaging lever (26) by means of the screw (27), the washer (28) and the self-locking nut (29) paying attention to keep loose the self-locking nut. Connect the rubber handle (30) and the chain (31) by means of proper screw (32), nut (33) and “R”...
- Page 10 Fix the guard (35) to the machine by inserting the screws (36), the washers (37) and the nuts (38). Connect the Right H. lever (39) and the Left H. one (40) to the frame by means of proper screw (41), insert the spring (42) in the screw and tighten the self- locking nut (43), then insert the rubber handles (30).Fix the two levels (39) (40) by means of screws (68) and nut (69).
- Page 11 Take the hopper (44), insert the bushing (45), with the Left H. shutter (46) and the Right H. one (47), fix everything by means of seeger (48). Set the hopper (44) on the frame (1) and fix by means of bolts (49) and nuts (50). Put the agitator (51) into the gearbox shaft (2) and fix by means of the screw (52) and the self- locking nut (53).
- Page 12 Assemble the short opening connecting rod (54) and the long one (55), then put the short connecting rod into the return (56) and tighten the self-locking nut (57). Next stop the connecting rods trough the split pins (58). Place the brushes (59) in the upper side of disengagement box (60); next connect the lower disengagement box (61) and the upper one to the machine by tightening screws (62) and self- locking nuts (63).
- Page 13 Fix the guard (64) by means of bolts (65) and nuts (66); mount the arms (67) by fitting bolts (68) and nuts (69) while on the other side fix the guard to one of the screws which support the hopper. Finally, assemble the wheels (70) by means of screws (71) and self-locking nuts (72).
-
Page 14: Regulating Of The Fertilizer Spreader
Regulating of the fertilizer spreader As suggested in figure C, to obtain the maximum fertilize and seed spreading, bring the lever 1 and 2 to position of maximum opening. Above mentioned levers can be fixed by a screw. To spread to the left (of the forward direction) remove the link screw and bring the lever no. -
Page 15: Serial Number And Identification Plate
Serial number and identification plate Manufacturer: ENOAGRICOLA ROSSI s.r.l. via Cortonese s.n. – 06018 Calzolaro di Umbertide (PG) - Italy Equipment: Pull type Fertilizer Spreader Manufacturing year Weight Model Serial number Tractor power ENOAGRICOLA ROSSI s.r.l. CALZOLARO DI UMBERTIDE - PERUGIA - ITALIA Tel. -
Page 16: Maintenance
Maintenance The servicing of your spreader is very important and must be done carefully as it gives a lower operational cost and a long life of the equipment. Servicing In this part of the manual we examine the most frequent cases of servicing: ... -
Page 18: Spare Parts
US GEARBOX... - Page 19 US GEARBOX GLOSSARY CODE DESCRIPTION 226002602 DISENGAGING SLEEVE 22x19 DIN 5482 290220017 "FAZA" SPREADER BOX 2018 - G25 295264601 SHAFT XY 2018 "R" 22X19 DIN 5482 SPEC. 295269800 SHAFT WITH FLANGE L=459.5 2018 FAZA 295459800 SHAFT WITH FLANGE L=186 2018 FAZA 298001702 DISENGAGEMENT LEVER L=70 2018 FAZA 298503200...
- Page 21 List of parts US Item Code Description Item Code Description Pos. Pos. TFS001 Main Frame TFS039 R.H. Lever TFS002 Gearbox TFS TFS040 L.H. Lever TFS003 Screw 10x25 TFS041 Screw 12x80 TFS004 TFS042 Self-lock Nut M 10 Spring TFS005 Spreading Disc TFS043 Self-lock Nut M 12 TFS006...
-
Page 22: Spreading Chart For Fertilizer
Spreading Chart for Fertilizer US Pull Type Fertilizer Spreader Spreading Forward Speed Fertilizer width Feed In Km per Hour in Meters 3-5-8 1188 KP NPK 2400 1203 3-5-8 1958 UREA 3912 1955 1696 CALC. 3-5-8 3400 1700 CYNAMIDE 6760 3380 1650 1126 POTASSIUM... -
Page 23: Spreading Chart For Seeds
Spreading Chart for Seeds US Pull Type Fertilizer Spreader Seeds Spreading width Feed Forward Speed in Meters In Km per Hour 3-5-8 1457 WHEAT 3778 1415 3-5-8 1480 VETCH 3618 1333 3-5-8 1560 3798 1424 3-5-8 2040 BARLEY 4828 1811 3-5-8 3647 1366... - Page 25 Note:………………………………………………………………………………………………………… ……………………………………………………………………………………………………………... ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ………………………………………………………………………………………………………………. ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………... ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ………………………………………………………………………………………………………………. ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………... ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………….
- Page 26 ……………………………………………………………………………………………………………... ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ………………………………………………………………………………………………………………. ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………... ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ………………………………………………………………………………………………………………. ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………... ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ……………………………………………………………………………………………………………… ………………………………………………………………………………………………………………. ………………………………………………………………………………………………………………...
- Page 27 The contents of this manual can be modified only by the Manufacturer and without notifying the Customer. ENOROSSI reserves the right to modify machines in production, with the object of improving quality or in accordance with new regulations were issued (Machine Directive), without obligation to update machines already built or to update the use and...
- Page 28 ENOAGRICOLA ROSSI s.r.l. 06018 Calzolaro di Umbertide Perugia Italia Tel. (39) 075-9302222 - Telefax (39) 075-9302328 e-mail: enorossi@enorossi.it – info@enorossi.it...
