APPENDIX 1

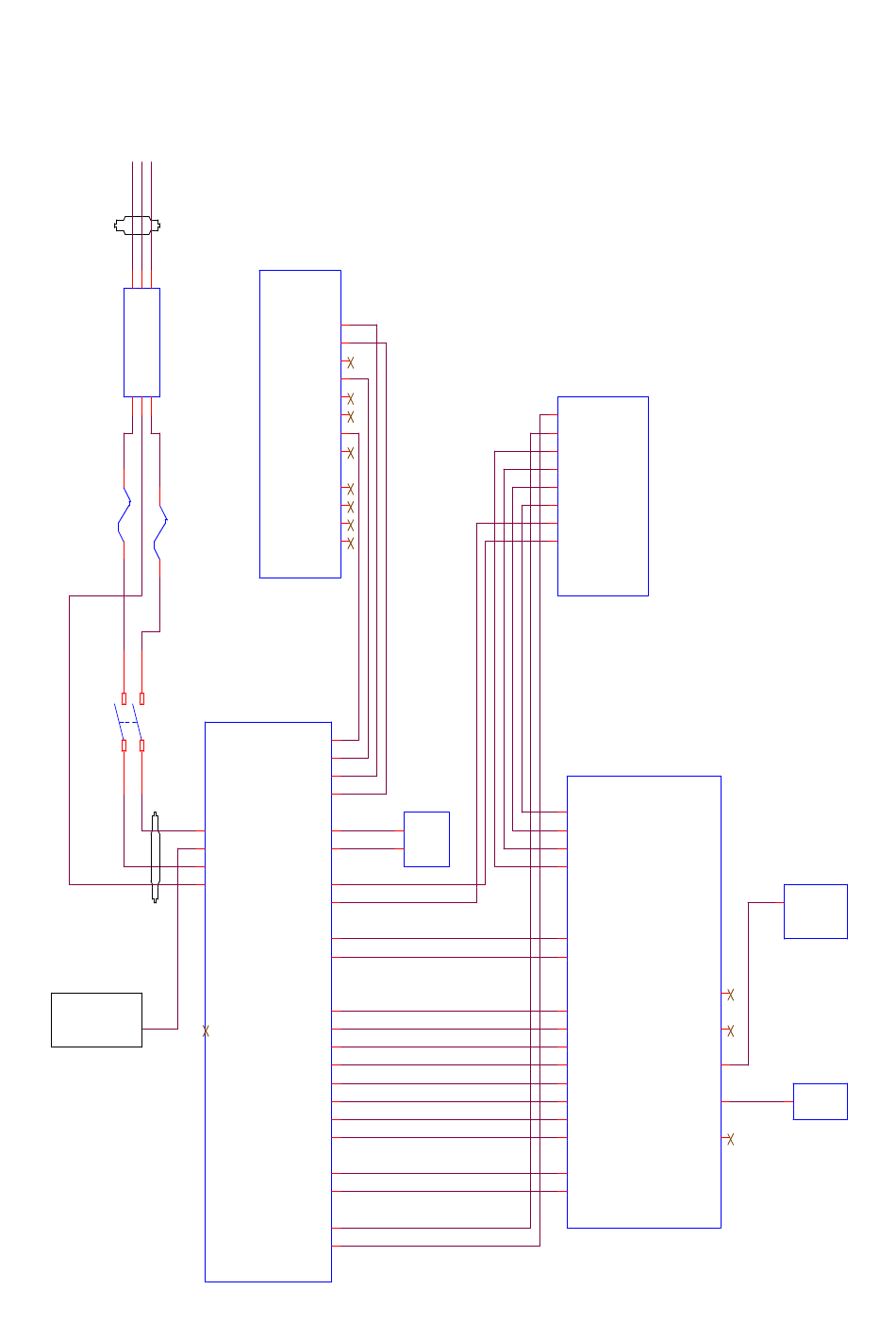

Wiring Diagram (1 of 2)
AC input_
220-240VAC
50/60Hz
1 2 3
N
N
E
U5 I
I
P
L
N
AC Line
Fi l t er
E
L P N
5 6 4
FUSE1
5*20mm_ 2.5A
FUSE2
5*20mm_ 2.5A
L N
Switch
SW1
L N
C C
FJ1-1_ACN
A A
FJ1_2_PE
FJ1-3_ACL
PE
FJ1-4_PE
POWER
Heatersink
PE
PCB1
BYQ904102000110_HOTLID
HOTLID
LID-J1-1_SEN
LID-J1-2_SEN
LID-J1-3_HEATER+
LID-J1-4_HEATER+
LID-J1-5_HEATER+
LID-J1-6_HEATER-
LID-J1-7_HEATER-
LID-J1-8_HEATER-
LID-J2-1_SEN
LID-J2-2_SEN
LID-J2-3_HEATER+
LID-J2-4_HEATER-
PCB3
BYQ5041042000000_POWER
EJ3-1_HOTLID-
EJ3-2_HOTLID+
U4
EJ3-3_LID-SEN1
EJ3-4_LID-SEN2
2
EJ4-1_FAN- FAN-
1
EJ4-2_FAN+ FAN+
EJ1-1_TE+
EJ1-2_TE-
EJ7-1_LIDSEN
EJ7-2_LIDSEN
EJ2-1_HV+
EJ2-2_HV-
EJ2-3_+5V
EJ2-4_HOTLID
EJ2-5_FAN
EJ2-6_PWM
EJ2-7_HEAT
EJ2-8_COOL
EJ5-1_H2+
EJ5-2_H2-
EJ6-1_AUX_HEATER
EJ6-2_AUX_HEATER
PCB2
BYQ904101000010_BLOCK
J1-8_AUX HEATER
J1-7_AUX HEATER
J1-6_SEN-BLOCK
J1-5_SEN-BLOCK
J1-4_SEN-SINK
J1-3_SEN-SINK
J1-2_TE-
J1-1_TE+
BLOCK
PCB4
BYQ5041041000000_CPU
J15-1_SEN-FAN
J15-2_SEN-FAN
J15-3_SEN-BLOCK
J15-4_SEN-BLOCK
J16-1_SEN-HOTLID
J16-2_SEN-HOTLID
J13-1_HV+
J13-2_HV-
J13-3_VIN5
J13-4_HOTLID
J13-5_FAN
J13-6_PWM
J13-7_HEAT
J13-8_COOL
J17-1_H+
J17-2_H-
16
CPU
1
LCD
LCD1
VB1_SUB D9_RS232C
J9_CPLD_JTAG_IDC10
J5_LCD_24P
1
J10_KEY IN
J3_CPU_JTAG_IDC20
KEY1
KEY-BOARD
