Summary of Contents for Labnet Orbit S2030-LS-B-230

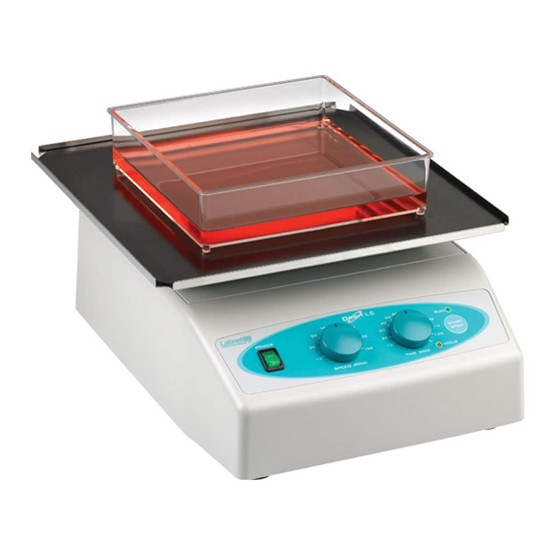

- Page 1 Orbit LS Low Speed Orbital Shaker User Manual S2030-LS-B S2030-LS-B-230 Lit M00707 Rev.3, August 2016...
- Page 3 1.0 GENERAL SPECIFICATIONS Electrical requirements: 115V model 115V ± 10% - 50/60Hz, 0.3A 230V model 230V ± 10% - 50/60Hz, 0.15A Fuse 2 x 0.5A 230V ; 2 x 1A 115V Speed from 3 to 60 rpm Shaker Orbit 19 mm (3/4 inch) Timer 20 –...
- Page 4 Do not pull the plug by the cord! 3.0 INSTRUCTIONS FOR USE START STOP POWER SPEED TIME (RPM) (MIN) HOLD 1. POWER switch – to turn the shaker ON (power switch illuminates) or OFF 2. SPEED potentiometer – to set the shaker speed 3.
- Page 5 Problem Explanation / Solution POWER key doesn’t light up Check the power connection, Check fuses Call Labnet Service Department Shaker does not START Check the power connection, Check fuses Call Labnet Service Department 5.0. ROUTINE MAINTANCE / CLEANING •...
- Page 6 EQUIPMENT DISPOSAL-EUROPEAN REGULATIONS According to Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), Orbit Low Speed Shaker is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste.
- Page 7 Warranty Statement Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of one (1) year from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
- Page 8 labnetinfo@corning.com www.labnetinternational.com LN149000...
