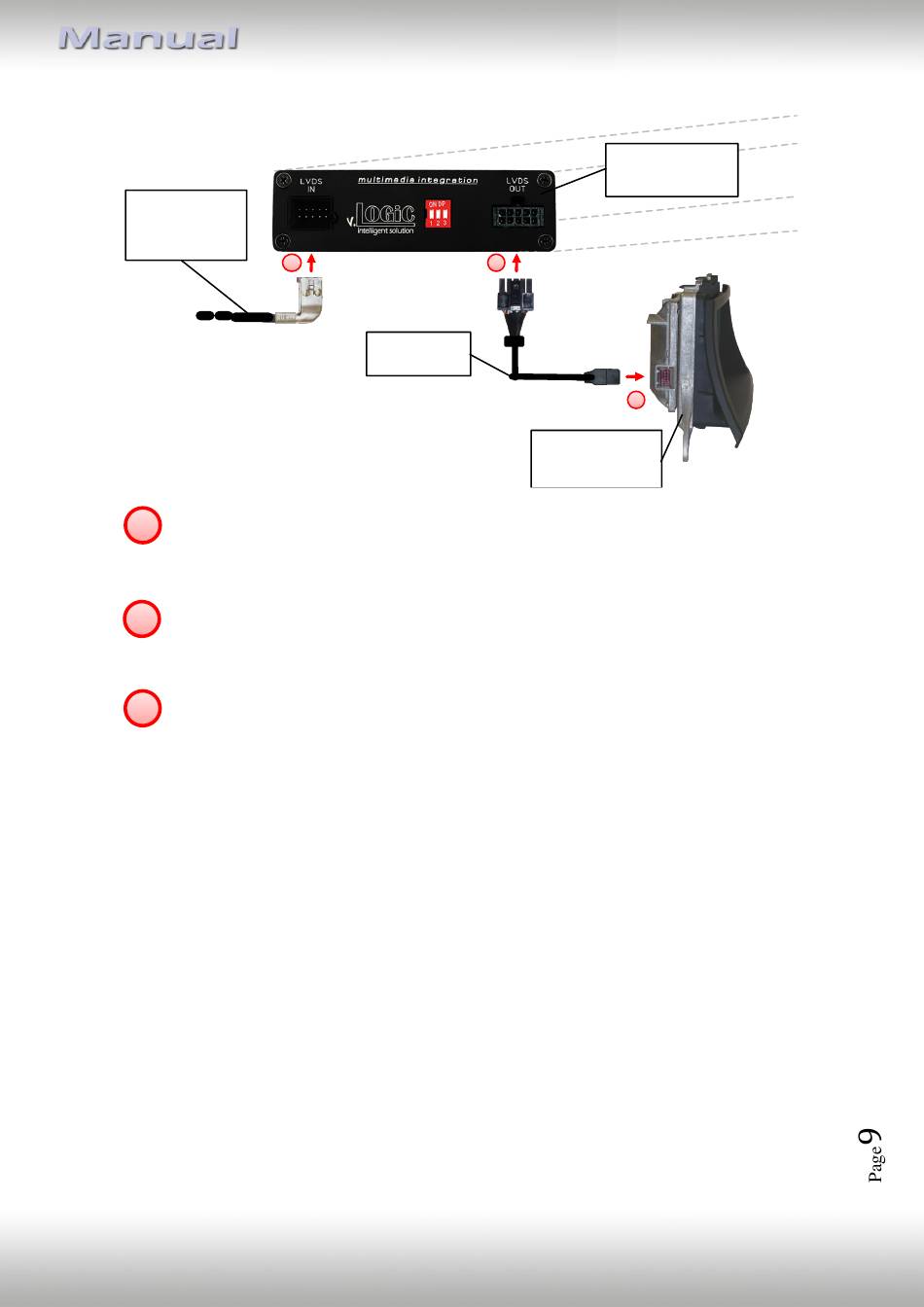

LVDS connection

10pin BMW
LVDS female
vehicle harness
1
Connect the female 10pin Micro-Fit connector of the LVDS cable V4C-LVDS10 to the
male 10pin Micro-Fit connector (LVDS-OUT) on the rear of the interface-box
V5C-M631.
Remove the female 10pin BMW LVDS connector of the vehicle harness at the side of
2
the factory monitor and connect it to the male 10pin BMW LVDS connector (LVDS-IN)
on the front of the interface-box V5C-M631.
3
Connect the female 10pin BMW LVDS connector of the LVDS cable V4C-LVDS10 to
the male 10pin BMW LVDS connector of the factory monitor.
Version 01.12.2015
2
LVDS cable
V4C-LVDS10
Interface-box
V5C-M631
REAR
1
3
Side view of the
factory monitor
V5-CCC
