1.3. Optional Drain Pump—I

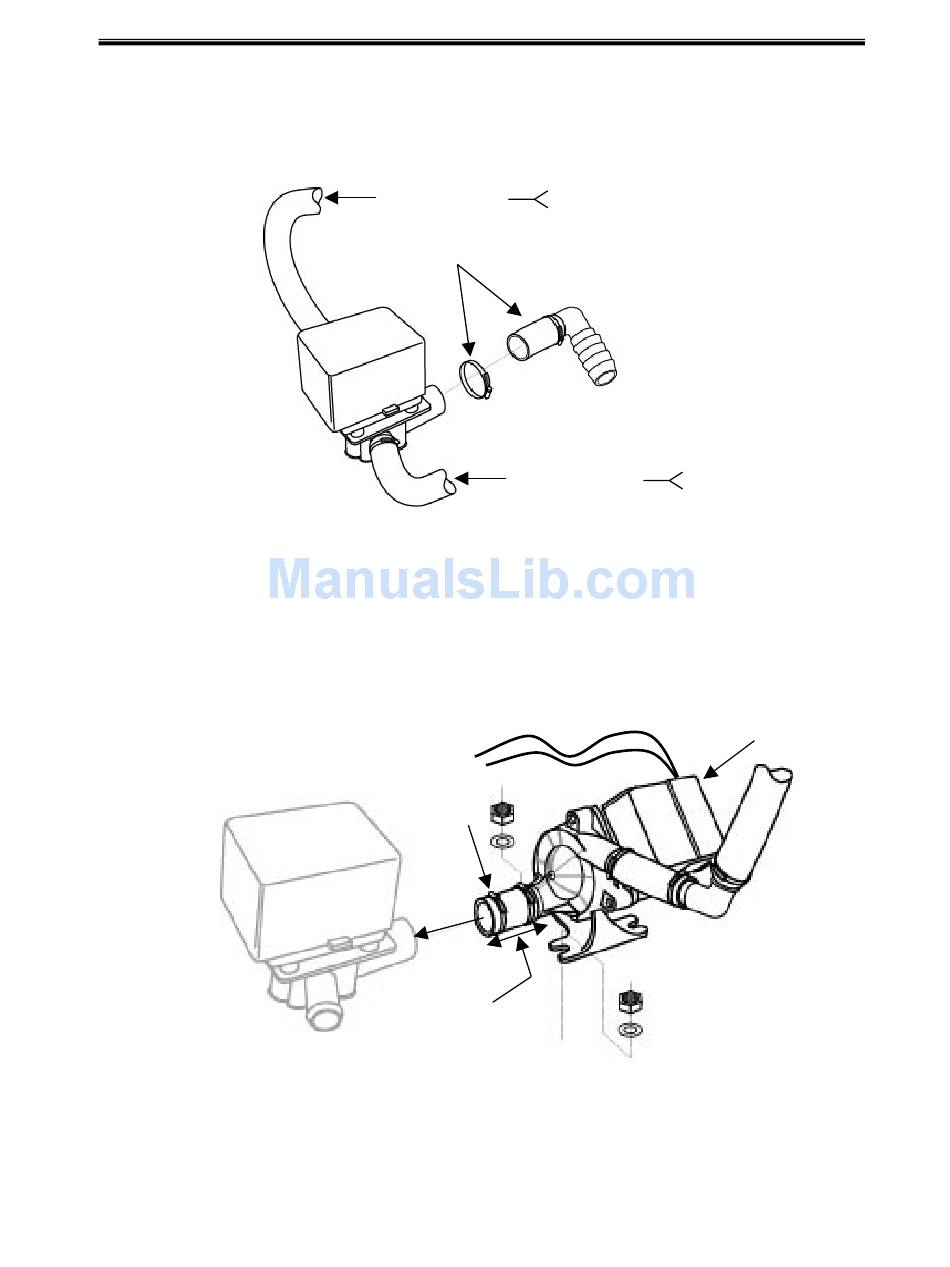

1. Start by removing the existing drain hose from the Drain Valve as shown in
2. Locate the white and purple wires that are safe-ended and tie-wrapped at the top of the Drain
Pump compartment. Bring these wires out so they can be connected after mounting the Drain

Pump.

Connect the 3-inch long pump inlet drain hose to the Drain Valve and mount the Drain Pump
3.
using the nuts and washers provided with the kit as shown in
4. Remove the terminal cover and connect the white and purple wires to the two white wires
from the pump. Replace the cover.
MODEL CMA-180UC PARTS MANUAL Rev. 1.14
NSTALLATION
From Scrap Tray
Remove
From Wash Tank
Figure 1
White wire
Purple wire
Tighten this
hose clamp
over Drain
Valve.
3-inch pump
inlet drain
hose.
Figure 2
Parts Manual
I
NSTRUCTIONS
Figure 1
Figure 2 .
Remove this cover to
make wire connections.
Drain hose must elevate
12 to 16 inches before
dropping to drain.
Page 5
.
