CMA Dishmachines CMA-180UC Quick Setup Instructions

180UC
Quick Setup
Instructions
WARNING: Electrical and
1
DRAIN HOSE
plumbing connections need
to be made by a qualified
service person who will
comply with all available
Federal, State and Local
Health, Electrical,
Plumbing and Safety
codes.
NEUTRAL
GROUND
HOT
HARD WIRE
2
FOUR WIRE
POWER SUPPLY
STEP
1
1/2" WATER INLET
1"AIR GAP
DRAIN VALVE
WALL
DRAIN FLOOR DRAIN
Connect the drain hose to wall or floor drain. The
floor drain must have a 1 inch air gap between
drain hose and floor drain.
STEP STEP
2 3
Connect hard wire power supply from dishmachine Level dishmachine by adjusting leveling legs.
to power box. (Two hot wires, one neutral and one Dishmachine must be level front and back.
ground.)

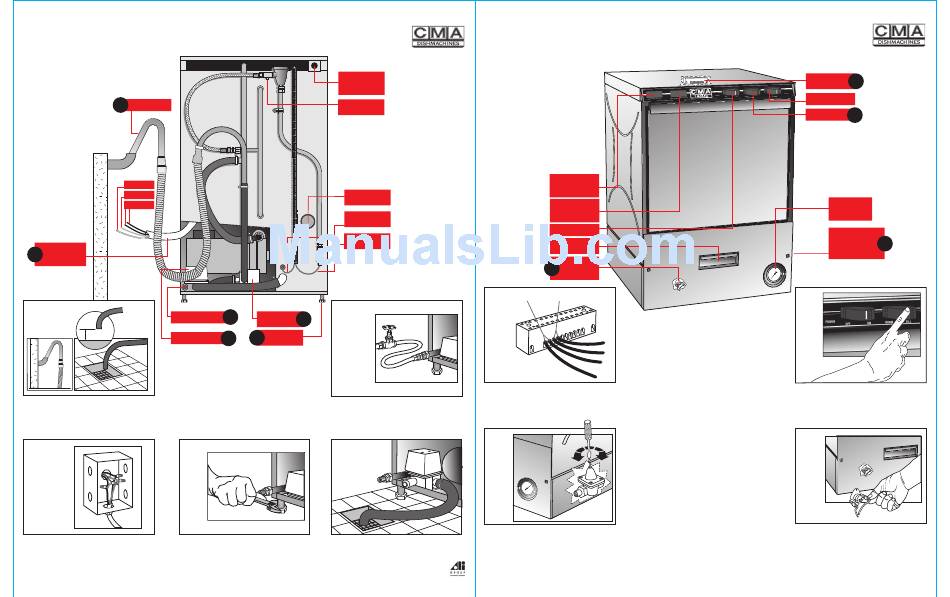

180UC REAR VIEW
110V POWER
CONNECTION
FOR DISPENSER
RINSE
INJECTION
DETERGENT
INJECTION
WASH
SENSOR
RINSE
SENSOR
STEP
4
4
PUMP DRAIN 5
MOTOR
5 3 LEVELING
LEGS
Connect dishmachine to hot water source, minimum
temperature 140∞. If 140∞ is not available, order a 3
minute timer cycle (120∞ minimum temperature
required).
STEP
5
When ever possible, remove pump drain if a floor
drain is available near by. Remove drain pipe and
place drain hose on the drain valve and allow
machine to gravity drain.
180UC
Quick Setup
800-854-6417
Instructions
WARNING: Electrical and
plumbing connections need
to be made by a qualified
service person who will
comply with all available
Federal, State and Local
Health, Electrical, Plumbing
and Safety codes.
WASH
TEMPERATURE
DISPLAY
RINSE
TEMPERATURE
DISPLAY
POWER
SCRAP
DRAWER
BOOSTER
9
HIGH LIMIT
SWITCH
STEP
RINSE DETERGENT
6
Chemical dispenser electrical hookup is located
inside control box. Chemical dispenser is optional.
It is not sold with dishmachine.
STEP
7
20
Adjust pressure regulator located behind side panel,
to 20 psi (maximum).
3-2007
ELECTRICAL
BLOCK
START
DRAIN FILL
PRESSURE
(Located behind
STEP
8
180UC FRONT VIEW
Turn power switch to "ON" position. Hold down
"FILL" switch until water overflows into the scrap
drawer.
STEP
9
After filling dishwasher for the first time, (CAUTION:
turn power supply off) reconnect the factory
unplugged wire to booster high-limit switch located
behind front panel.
800-854-6417
6
8
RINSE
GAUGE
PRESSURE
REGULATOR
7
side panel)
3-2007
