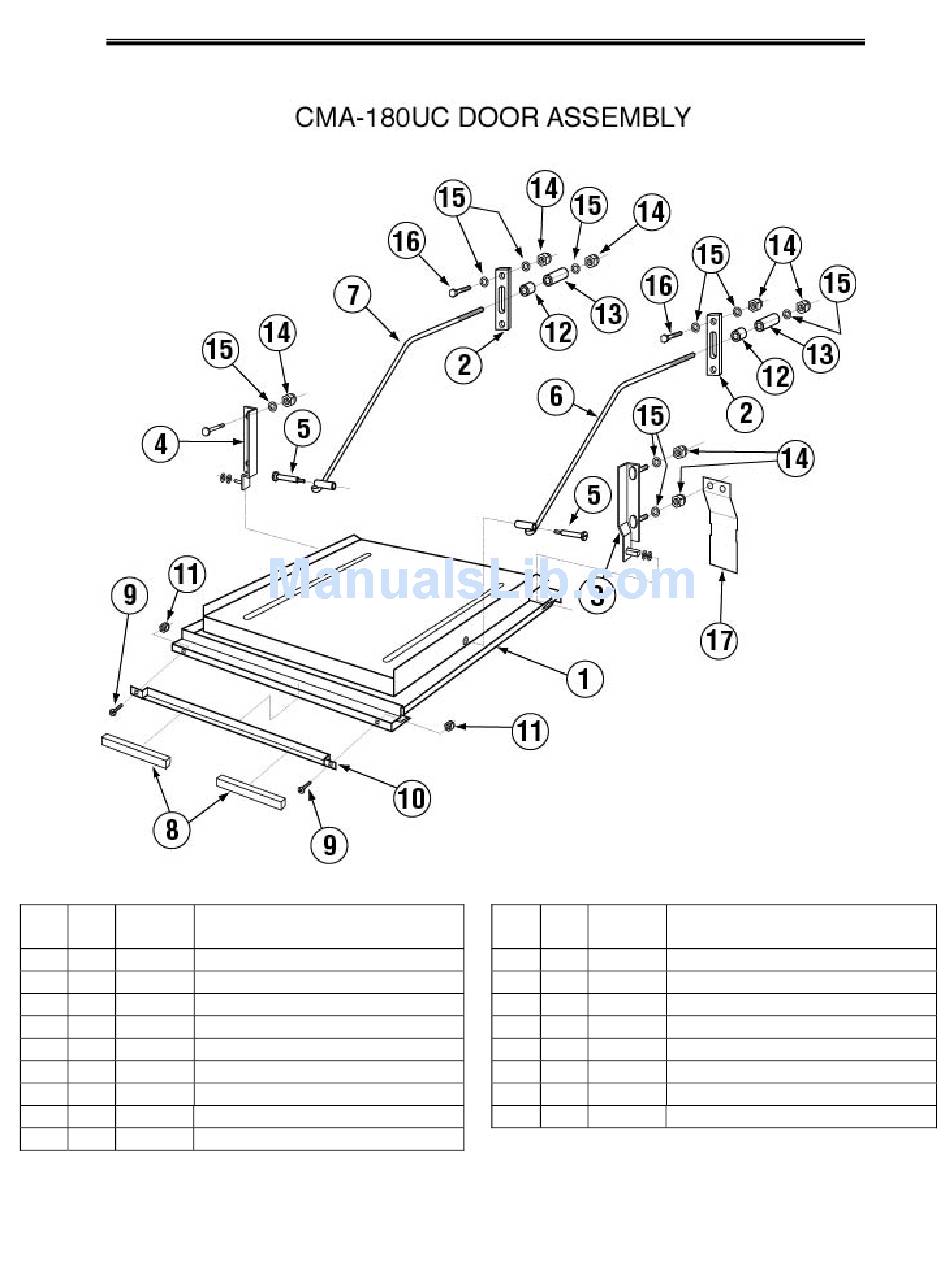

1.4.2. Door Assembly

ITEM NO.
P/N
NO. REQ'D
1 1 14506.00 Door for CMA-180UC
2 2 04517.60 Door Support Rod Block
3 1 14570.00 Door Hinge R.H. for CMA-180UC
4 1 14570.50 Door Hinge L.H. for CMA-180UC
5 2 04919.00 Door Rod Screw Pin for CMA-180UC
6 1 04918.60 Door Support Rod Right
7 1 04919.50 Door Support Rod Left
8 2 00557.80 Door Magnet
9 2 00970.60 6-32 x 1/2" Flathead Screw
MODEL CMA-180UC PARTS MANUAL Rev. 1.14
DESCRIPTION
Parts Manual
ITEM NO.
P/N
NO. REQ'D
10 1 14558.61 Door Magnet Holder for CMA-180UC
11 2 00965.00 6-32 Lock Nut
12 2 00605.20 Door Rod Spacer
13 2 04517.15 Door Stop (Parallel)
14 10 00912.00 1/4"-20 Nylon Lock Nut
15 14 00924.00 1/4" SS Washer
16 4 00914.10 1/4"-20 x 5/8" Hexhead Bolt
17 2 14518.00 Splash Guard
DESCRIPTION
Page 8
