COIN MECHANISM - VENDED MODEL ONLY
SWITCH SW1
Switch SW1 is located next to the 4 pins cable connector behind the coin acceptor. The switch is used to select the pulse
output timing. The interval in between pulses is 50ms.
SWITCH SW2
Switch SW2 is being housed underneath the digital display of the coin acceptor. The switch is used to select the output pulse
format. (The internal circuitry is an open collector designs)
NC (Normal Close) or Active High Pulse

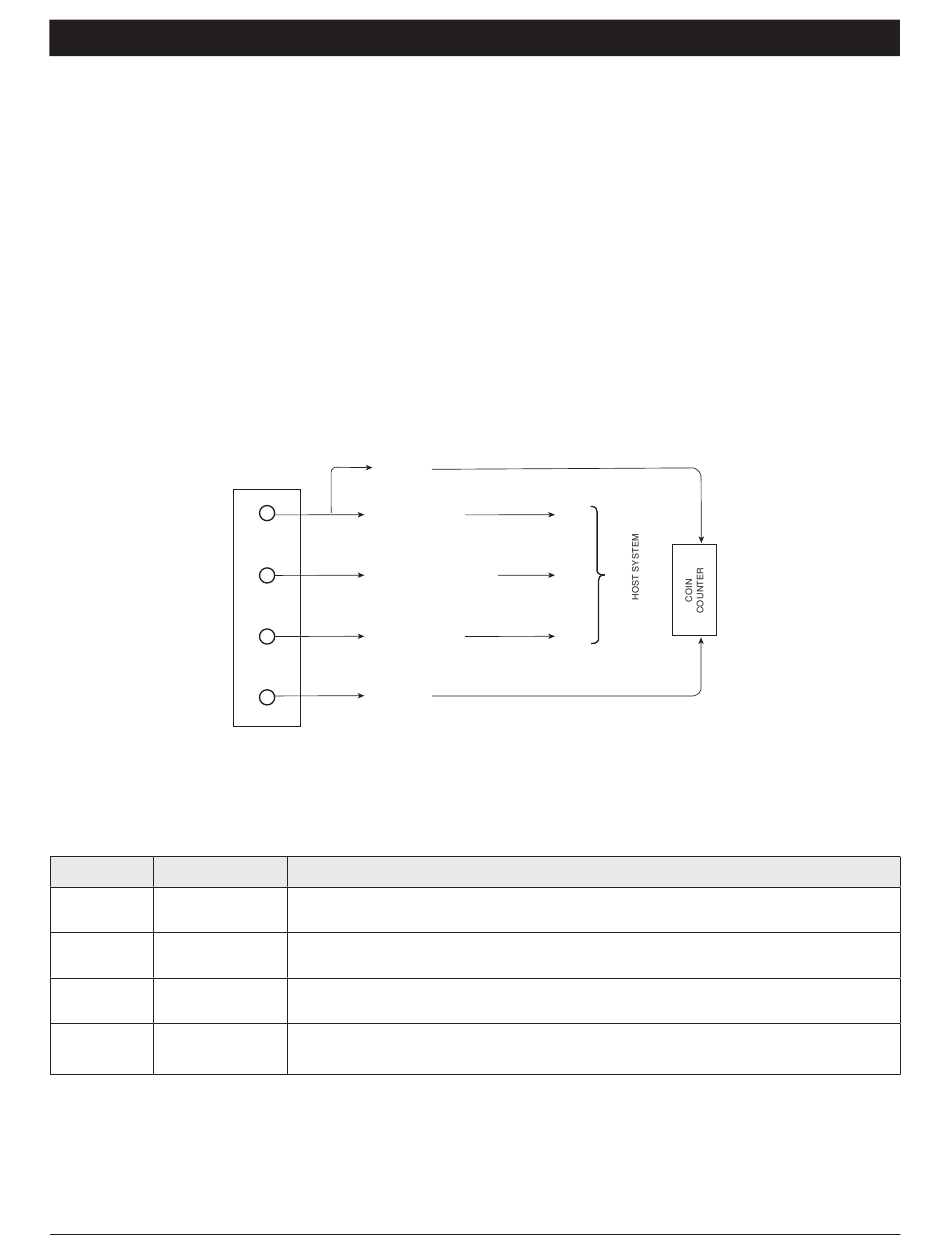

FOUR PIN CONNECTOR OUTPUT INTERFACE DIAGRAM
BUTTON FUNCTION
INDICATION DESCRIPTION
Ent ENTER
Esc ESCAPE
+ INCREASE
- DECREASE
®/™ ©2021 Unity Laundry Systems. All rights reserved.
GREY LINE
RED LINE / DC 12V
WHITE LINE - COIN PULSE
BLACK LINE - GND
GREY LINE
• Long press (>2 sec) to enter the setting mode • Short press (<2 sec) to confirm a
selection
Long press (>2 sec) to escape
Short press (<2 sec) to browse the menu
Short press (<2 sec) to browse the menu
Select Channel number from c1 to c12 to adjust the tolerance
FUNCTION
Part. 14000001 Rev. 04//2021 41
