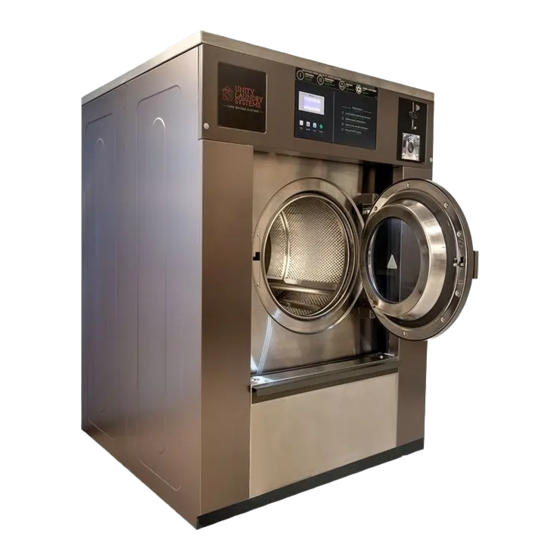

- Page 1 INSTALLATION AND MAINTENANCE INSTRUCTIONS MODEL NUMBER: UTS62 INSTALLATION/MAINTENANCE UTS62 110 Canal Street, 3rd Floor Lowell, MA 01854 United States info@ulaundrysystems.com www.ulaundrysystems.com Part. 14000101 Rev. 12/2019 ®/™ ©2019 Unity Laundry Systems. All rights reserved.
- Page 2 ®/™ ©2019 Unity Laundry Systems. All rights reserved.
-
Page 3: Table Of Contents
06 MAINTENANCE 6.1. Maintenance .....................23 6.2. Daily ......................23 6.3. Weekly .......................24 6.4. Monthly ......................25 6.5. Quarterly ....................25 6.6. Out of Balance Protection ................25 6.7. Variable Frequency Drive (VFD) ...............25 6.8 Troubleshooting ..................26 ®/™ ©2019 Unity Laundry Systems. All rights reserved. -
Page 4: Safety Information
4. The manufacturer will not accept responsibility for any physical and/or material damage caused by actions performed on the machine undertaken by unauthorized personnel. 5. Do not store or install the machine in areas exposed to the ELEMENTS or where it may be splashed by water. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... - Page 5 23. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. This is a safety rule for all appliances. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
- Page 6 35. Before the washer is removed from service or discarded, remove the door to the washing compartment. 36. Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage. 37. THE MANUFACTURER ACCEPTS NO RESPONSIBILITY IF THESE SAFETY INSTRUCTIONS AND ALL THE INFORMATION IN THE CORRESPONDING MANUALS ARE NOT FOLLOWED. KEEP THESE INSTRUCTIONS IN A SAFE PLACE. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
-
Page 7: Safety Decals
Protection guard for moving parts. Keep the doors/covers closed. Use appropriate protection. FLAME RISK (only on some machines) RISK OF FALLING Protective guard for flame. Use proper access and safety methods. ACCESS PROHIBITED ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 8: Operator Safety
To break the electrical supply for all machines. • To safely isolate all machines at maximum consumption. • To need reinstating (the whole installation) after the emergency stop push-button has been released. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 9: Introduction
01 INTRODUCTION Thank you for the purchase of a Unity Laundry Systems washing machine. Please read this manual carefully before installing and operating the washer. 1.1 DELIVERY INSPECTION Upon delivery, visually inspect crate, protective cover, and unit for any visible shipping damage. If signs of possible damage are evident, have the carrier note the condition on the shipping papers before the shipping receipt is signed, or advise the carrier of the condition as soon as it is discovered. -
Page 10: Specifications And Dimensions
Minimum Clearance Between Machines - in (mm) 0 (0) Minimum Clearance in front of Machines - in (mm) 39.4 (1000) Minimum Clearance Behind Machines - in (mm) 31.5 (800) ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 11: Machine Dimensions
02 SPECIFICATIONS AND DIMENSIONS 2.2 MACHINE DIMENSIONS Unless otherwise specified, all dimensions are in mm. The below diagram shows the vended configuration. The on-premise configuration has the same dimensions. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 12: Installation
Maintenance area behind machine - in (mm) 31.5 (800) Width - in (mm) 34.6 (880) Depth - in (mm) 34.2 (870) Height - in (mm) 55.1 (1,400) Distance between machines - in (mm) 0 (0) ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 13: Foundation Requirements
3.3. WATER CONNECTION To connect water service to a machine with hoses, use the following procedure: 1. Before installing hoses, flush the building’s water system at the machine connection valves for at least two [2] minutes. 2. Check filters in the machine’s inlet adapter hoses for proper fit and cleanliness before connecting. 3. Hang hoses in a large loop; do not allow them to kink. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 14: Drain Connection
IMPORTANT: Increasing the drain hose length, installing elbows, or causing bends will decrease drain flow rates and increase drain times, impairing machine performance. NOTE: Installation of additional machines will require larger drain connections. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 15: Electrical Installation
Bleach accordance with state and local codes. The ground connection must be made to a Fabric softner proven earth ground, not to conduit or water Common pipes. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 16: Supply Dispensing
IMPORTANT: Failure to follow these instructions could damage the machine and void the warranty. 3.7.2 External Dosing (Option) CONNECTION OF EXTERNAL LIQUID SUPPLIES Pre wash Main wash Bleach Fabric softner Common 1. Facing the rear of the machine, locate the five 3/8 inch supply hose connections found on the right-hand side of the valve panel. 2. Drill through the five plastic holes on the valve panel for the external supply hoses as needed. 3. Remove plastic debris. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 17: Removal Of Shipping Braces
After positioning, remove the lower front and back panels and remove the four shipping brackets that were used for transportation support. Save the shipping brackets. If the washer ever needs to be moved to another location, replace the transport system. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 18: Control Interface Vended
Press this button to select medium water temperature. [COLD] button Escape Press this button to select cold water temperature. [Start] button Enter Press this button to start executing the selected wash cycle. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 19: Vended
After power is on, the LCD shows the startup interface for 10 seconds. X1LD041AX1700 1.V100A00 Unity UTS40 X1LL020AX26001- 1.V100A00 Idle Default program is Cold. Wash Temp: Cold 3.00 Paid: 0.00 ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... - Page 20 After completing the cycle, the controller displays end status. The controller beeps to inform the user of a cycle completion. The buzzer can be canceled by pressing [Start] button during this beeping time. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
- Page 21 4.1.5 Add detergent Add ¼ – ½ cup liquid and/or powder detergent to supply dispenser. 4.1.6 Washing Press the START keypad. 4.1.7 Washing end When cycle is complete. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
-
Page 22: Control Interface On-Premise
Press this button to select program 2. [3] button Escape Press this button to select program 3. [Start] button Enter Press this button to start executing the selected wash cycle. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 23: On-Premise
After power is on, the LCD shows the startup interface for 10 seconds. X1LD041AX1700 1.V100A00 Unity UTS40 X1LL020AX26001- 1.V100A00 Idle Default program is Program 1. Wash Temp: Cold FREE MODE ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... - Page 24 After completing the cycle, the controller displays end status. The controller beeps to inform the user of a cycle completion. The buzzer can be canceled by pressing [Start] button during this beeping time. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
- Page 25 5.5.5 Add detergent Add ¼ – ½ cup liquid and/or powder detergent to supply dispenser. 5.5.6 Washing Press the START keypad. 5.5.7 Washing end When cycle is complete. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
-
Page 26: Maintenance
5. Verify that insulation is intact on all external wires and that all connections are secure. If bare wire is evident, call a service technician. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 27: Weekly
3. On machines equipped with an automatic chemical supply system, check chemical connections by inspecting all connections and chemical hoses for leaks or cracks. IMPORTANT: Chemical leaks can quickly cause permanent damage to the machine components and structure. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 28: Monthly
1. Each parameter has been set at the factory and should NOT be adjusted. 2. The VFD status and error codes can be viewed on the controller. If you receive a VFD error, contact your Unity Laundry Systems dealer. ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... -
Page 29: Troubleshooting
· Drain valve malfunction · Check drain valve, replace if necessary · Drain valve malfunction Water leaking · Check hoses and hoses connections, replace or · Hoses leaking tighten if necessary ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019... - Page 30 · Check program settings, modify if necessary dispenser not · 4-way water inlet valve malfunction · Check the 4-way inlet valve, replace if necessary flushing · Program set incorrectly · Check program ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
- Page 31 ®/™ ©2019 Unity Laundry Systems. All rights reserved. Part. 14000101 Rev. 12/2019...
- Page 32 ®/™ ©2019 Unity Laundry Systems. All rights reserved.
