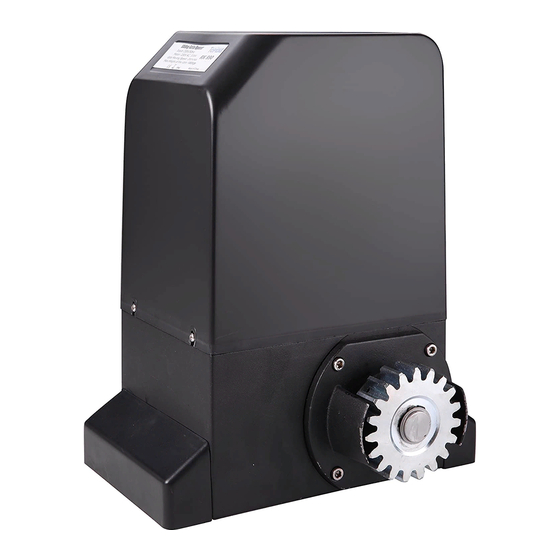

Topens RK990 User Manual

Sliding gate opener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Sliding Gate Opener
User's Manual
Model:
RK990(T)
TOPENS Website
www.topens.com
Email: support@topens.com
★ Please read and follow all warnings, precautions and instructions before
installation and use.
★ Periodic checks of the opener are required to ensure safe operation.
★ Save this manual.
C030421
VER 21b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK990 and is the answer not in the manual?

Questions and answers

Related Manuals for Topens RK990

Summary of Contents for Topens RK990

  • Page 1 Sliding Gate Opener User’s Manual Model: RK990(T) TOPENS Website www.topens.com Email: support@topens.com ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Periodic checks of the opener are required to ensure safe operation. ★ Save this manual.
  • Page 2 Visit: www.topens.com Please record the product model, your email address etc. in the spaces provided below. Refer to this list when contacting TOPENS for technical service or assistance with your automatic gate opener. Where did you purchase? (Amazon.com; Amazon.ca: Amazon.co.uk, Amazon.de; Other, Please...

  • Page 3: Table Of Contents

    Parts List ................................4 Extra Parts for RK990T ............................ 4 Accessories Parts (Included in some models, refers to the actual package) ..........4 Optional Accessories Parts List (Available at TOPENS Store) ................ 4 Replacement Parts ............................5 Technical Specifications & Features ........................ 5 Installation Overview ............................

  • Page 4: Check Your Gate Before Installation

    Thank you for purchasing our sliding gate opener. We are sure that the products will be greatly satisfying as soon as you start to use it. The product is supplied with a user’s manual which encloses installation and safety precautions. These should be read carefully before installation and operation as they provide important information about safety, installation, operation and maintenance.

  • Page 5: Preparation For Installation

    • Position at least one visible indication device, and fix a Warning sign to the structure. • The factory declines all responsibility with respect to the automation safety and correct operation when other supplier’s components are used. • Only use original parts for any maintenance or repair operation. •...
  • Page 6 In sake of safety, a positive stop must be mounted on the two end of ground track.

  • Page 7: Parts List

    Parts List Extra Parts for RK990T Accessories Parts (Included in some models, refers to the actual package) Optional Accessories Parts List (Available at TOPENS Store) M12 Remote Control ERM12 External TC186-R WiFi TC186 WiFi Smartphone Receiver Smartphone Remote Remote Control with...

  • Page 8: Replacement Parts

    Replacement Parts ACPYMJ1A Control ACPYMJ3A Control CKG16 Limit Switch Board (120V) Board (230V) WARNING: Changes or modifications not expressly specified by this user manual, TOPENS could void the warranty of this equipment. Technical Specifications & Features Specifications RK 990(T) Power supply:...

  • Page 9: Installation Overview

    ·Reverse in case of obstruction during gate closing Features: ·Built in adjustable auto-closing (0, 30, 60, 90 ·Easy to install, and minimum maintenance seconds) requirement ·Built in max. Motor Running Time (MRT) for ·Midway mode multiple safety protection (90 seconds) ·Quick selection for gate open/close direction ·Reliable electromagnetism limit for easy ·Reliable rolling code technology...

  • Page 10: Manual Operation

    protrude 10 cm (4”) above ground and 25 cm (10”) in depth underground. Increase the pad height if necessary to protect the system from flooding, heavy snow etc. 2. Prepare one or more conduits for the electrical cables before pour concrete.
  • Page 11 Make rack level and mark the rack’s mounting holes (four holes) on the gate. 4. Fit the rack by self-threading screws. This kind of plastic rack is quieter and allows height adjustments to be made even after it has been fixed. Please keep 1.0mm space between the rack and the gear to avoid the weight of the gate leaf effect on the opener.

  • Page 12: Install The Magnets For Limit Switches

    Important: * Check that the rack teeth must engage the gear teeth throughout their full thickness. If not, adjust the position of the opener or/and place a few shims between the rack and gate. * Manually slide the gate leaf to ensure the rack is proper on the gear of opener, weld the second nut. * Repeat same steps of first rack section to install the rest rack sections until proper length is reached.

  • Page 13: Connecting Of The Control Board

    Connecting of the Control Board WARNING：Before making any electrical wire connection or/and setting the control board, make sure that the power switch is OFF.

  • Page 14: Setting Of The Control Board

    1. Motor The BLACK wire of the motor should be connected into the “6” terminal. The RED wire of the motor should be connected into the “7” terminal. The YELLOW wire of the motor should be connected into the “8” terminal. 2.
  • Page 15 1. DIP Switches The DIP switches are used to set the running time of the motor in midway mode, auto close time of the gate opener and fast change the open/close direction which is determined by the position of the gate opener installed.

  • Page 16: How To Program Or Erase The Remote

    Press and hold the learn button until the REM LED light is off. Now all remote codes have been erased.  NOTE: Max. 8 remotes can be programmed for the opener. An External Receiver (optional) allows up to 250pcs remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is available at TOPENS Store.

  • Page 17: How To Use The Remote To Operate Your Gate Opener

    All of TOPENS sliding gate opener have midway mode. Button B is designed to realize midway function (refer to more details in our TOPENS sliding gate opener manual). So it is must program button A with sliding gate opener, while you may program either C button or D button with TOPENS swing gate opener.

  • Page 18: Troubleshooting

    Troubleshooting Have a multimeter to check voltage and continuity. Use caution when checking high voltage terminals. Symptom Possible Solution(s) 1. Check the input voltage of the control board. It should be local AC electricity. 2. The power switch is OFF. Make sure the power switch is ON. The opener does not 3.

  • Page 19: Maintenance

    try it again. Replace the limit switch if the motor could run in both directions. 3. Check the control board. Replace the control board as necessary. 1. Photocell is obstructed. Remove obstruction. 2. Check the limit switch. Remove the wire connection of the limit switch which The gate can open, is connected to the 9#, 10#, and 11# terminals of the control board and then but fails to close.
  • Page 22 Your comments and suggestions are important to us as they help us provide the best possible service. Should you have any need to contact us, the info below will help you get in touch: TOPENS Website www.topens.com Contact Us: E-mail: support@topens.com Kindly include your Product Model, Purchasing Date &...
