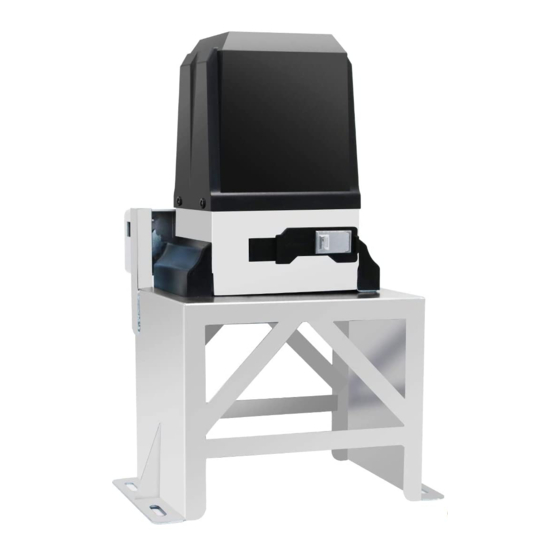

Topens CK2600 User Manual

Topens CK2600 User Manual

Sliding gate opener

Advertisement

Sliding Gate Opener
User's Manual
Model:
CK2600
TOPENS Website
http://www.topenstool.com/
★ Please read and follow all warnings, precautions and instructions before
installation and use.
★ Periodic checks of the opener are required to ensure safe operation.
★ Save this manual.
C030543
VER 20a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK2600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Topens CK2600

  • Page 1 Sliding Gate Opener User’s Manual Model: CK2600 TOPENS Website http://www.topenstool.com/ ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Periodic checks of the opener are required to ensure safe operation. ★ Save this manual.
  • Page 2: Table Of Contents

    Preparation for Installation ..........................3 Parts List ............................... 4 Accessories Parts (Included in some models, refers to the actual package) ..........5 Optional Accessories Parts List (Available at TOPENS Store) ..............5 Technical Specifications & Features ......................5 Installation Overview ............................. 6 Installation of the Opener ..........................
  • Page 3: General Safety

    Thank you for purchasing our sliding gate opener. We are sure that the products will be greatly satisfying as soon as you start to use it. The product is supplied with a user’s manual which encloses installation and safety precautions. These should be read carefully before installation and operation as they provide important information about safety, installation, operation and maintenance.
  • Page 4: Preparation For Installation

    • Do not allow persons or children to remain in the automation operation area. • Keep radio control or other control devices out of children’s reach, in order to avoid unintentional automation activation. • The user must avoid any attempt to carry out work or repair on the automation system, and always request the assistance of qualified personnel.
  • Page 5: Parts List

    Parts List...
  • Page 6: Accessories Parts (Included In Some Models, Refers To The Actual Package)

    Accessories Parts (Included in some models, refers to the actual package) Optional Accessories Parts List (Available at TOPENS Store) Technical Specifications & Features Specifications CK2600 Power input: 110V~120V/60Hz or 220~240V/50Hz Motor voltage: 120VAC or 230VAC Rated power: 1000W Gate moving speed:...
  • Page 7: Installation Overview

    Features: •Easy to install, and minimum maintenance requirement •Midway mode,Quick selection for gate open/close direction •Get the desired chain tension by adjusting the chain bolts. •Reliable rolling code technology for remote control •Emergency release key in case of power failure •Stop in case of obstruction during gate opening.
  • Page 8: Manual Operation

    When install the opener, you should build a concrete pad to support the base plate of opener in order to maintain proper stability. The installation proceeds are as follows: 1.Dig a hole for a concrete pad which should be approximately 60 x 36 x 35cm (24〞x 14〞x 14〞). It may protrude 10 cm (4”) above ground and 25 cm (10”) in depth underground.
  • Page 9: Installation Of Chain And Chain Brackets

    Installation of chain and chain brackets 1. Chain Brackets 1). Please refer to below chain brackets figure, which shows “U” bolt, “L” bracket and chain bolt. Use the “U” bolts (square or round) to attach the chain brackets to gate frame. 2).
  • Page 10: Install The Magnets For Limit Switches

    2). The opener must be parallel to the gate. 3). Make sure there is 1” distance at least between the chain box and the gate after you position the base plate. Install the magnets for Limit Switches Before install limit switch, make sure the gate opener is put in manual operation.
  • Page 11: Connecting Of The Control Board

    respectively; and connect the earth wire to “ ” (2#) terminal of the control board. NOTE: The power supply cord is not included in the package. Connecting of the Control Board...
  • Page 12 Warning: Before making any electrical wire connection or/and setting the control board, make sure that the power switch is OFF. Warning: A photocell is included in the package. The photocell must be installed with the gate opener for safety protection or the gate opener could not close properly. 1.
  • Page 13: Setting Of The Control Board

    Setting of the Control Board WARNING: Ensure the gate opener is Power Off when you make any adjustment of the gate opener. Keep away from the gate during you set the gate opener system in case of the unexpected gate moving. Carefully adjust the DIP switches to avoid the risk of machine damage and injury or death.
  • Page 14: How To Program Or Erase The Remote

    4 sets TOPENS swing gate openers or 1 set TOPENS sliding gate opener and 2 sets TOPENS swing gate openers. 1. Use this remote to only operate TOPENS swing gate opener A, B, C and D four buttons share same function once they are programmed with TOPENS swing gate opener.
  • Page 15: Wireless Keypad Programming

    All of TOPENS sliding gate opener have midway mode. Button B is designed to realize midway function (refer to more details in our TOPENS sliding gate opener manual). So it is must program button A with sliding gate opener, while you may program either C button or D button with TOPENS swing gate opener.
  • Page 16 1. Ensure the remote control has been programmed to the control board before operating. 2. The thermal protector is working because the high temperature after long working time. Please wait for 20 minutes to let the motor become cold. The opener does not 3.
  • Page 17: Maintenance

    Maintenance Every six months check the following items for proper operation of the unit. * Lubricate shafts and sprockets. * Keep opener clean at all times. * Check and tighten anchors bolts. * Check for loose or corroded wire * Ensure the opener is well earthed, and correctly terminated. * Always check the Stop/Reverse in case of obstruction function when performing any maintenance.
  • Page 18 TOPENS Website http://www.topenstool.com/ Any question, please do not hesitate to contact us: E-mail: support@topenstool.com Kindly include your Product Model, Purchasing Date & Site, Order #, and your contact information. All your concerns will be replied within 24 hours. Tel: +86 (571) 8908 0213 (China)
