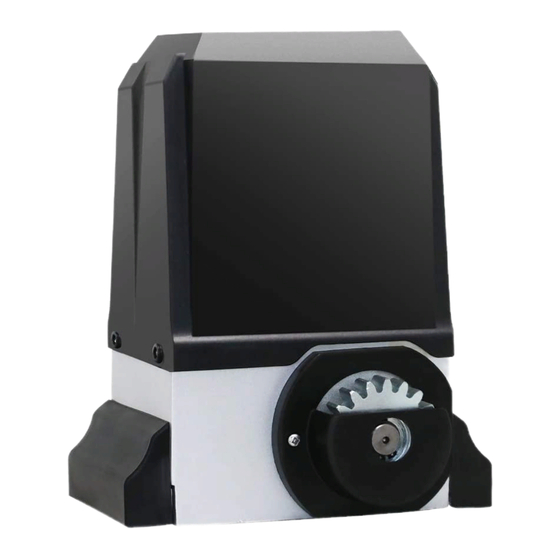

Sliding gate opener
Hide thumbs Also See for RK2600:

Advertisement

Sliding Gate Opener
User's Manual
Model:
RK2600(T)
TOPENS Website
http://www.topenstool.com/
★ Please read and follow all warnings, precautions and instructions before
installation and use.
★ Periodic checks of the opener are required to ensure safe operation.
★ Save this manual.
C030542
VER 20a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK2600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Topens RK2600

  • Page 1 Sliding Gate Opener User’s Manual Model: RK2600(T) TOPENS Website http://www.topenstool.com/ ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Periodic checks of the opener are required to ensure safe operation. ★ Save this manual.
  • Page 2: Table Of Contents

    Preparation for Installation ..........................3 Parts List ............................... 4 Accessories Parts (Included in some models, refers to the actual package) ..........5 Optional Accessories Parts List (Available at TOPENS Store) ..............5 Technical Specifications & Features ......................5 Installation Overview ............................. 6 Installation of the Opener ..........................
  • Page 3: General Safety

    Thank you for purchasing sliding gate opener. We are sure that the products will be greatly satisfying as soon as you start to use it. The product is supplied with a user’s manual which encloses installation and safety precautions. These should be read carefully before installation and operation as they provide important information about safety, installation, operation and maintenance.
  • Page 4: Preparation For Installation

    • Do not allow persons or children to remain in the automation operation area. • Keep radio control or other control devices out of children’s reach, in order to avoid unintentional automation activation. • The user must avoid any attempt to carry out work or repair on the automation system, and always request the assistance of qualified personnel.
  • Page 5: Parts List

    Parts List Extra Parts for RK2600T...
  • Page 6: Accessories Parts (Included In Some Models, Refers To The Actual Package)

    Accessories Parts (Included in some models, refers to the actual package) Optional Accessories Parts List (Available at TOPENS Store) Technical Specifications & Features Specifications RK2600(T) Power supply: 110V~120V/60Hz or 220~240V/50Hz Motor voltage: 120VAC or 230VAC Absorbed power: 1000W Gate moving speed:...
  • Page 7: Installation Overview

    Features: •Easy to install, and minimum maintenance requirement •Midway mode •Quick selection for gate open/close direction •Reliable rolling code technology for remote control •Emergency release key in case of power failure •Stop in case of obstruction during gate opening •Reverse in case of obstruction during gate closing •Built in adjustable auto-closing (0, 30, 60, 90 seconds) •Built in max.
  • Page 8: Manual Operation

    Necessary Tools: The following tools may be necessary to install the Gate opener. You will need screwdrivers, an electric drill, wire cutters and a wire stripper, a socket set, and possibly access to a welder. When install the opener, you should build a concrete pad to support the base plate of opener in order to maintain proper stability.
  • Page 9: Fit The Rack

    Fit the Rack Fit the galvanized steel rack 1. Start with gate in closed position 2. There are four sections of steel rack which is one meter length, each section for standard package. (you can order extra rack from dealer if necessary) 3.
  • Page 10: Connecting Of Power Supply

    desired open position when the open limit switch approaches it. The higher magnet bracket must be installed at left side and lower magnet bracket must be installed at right side from the view inside of property. Finally adjust the magnet to the proper position by moving the gate with the motor.
  • Page 11 pushing the button (open-stop-close-stop-open). 6. Exit Wand (Optional) First insert the Adapter BOARD into the CONTROL BOARD, and then connect the wand to the control board refers to following instruction.
  • Page 12: Setting Of The Control Board

    The BLACK wire of the exit wand should be connected into the “#18” terminal. The BLUE wire of the exit wand should be connected into the “#17” terminal. The RED wire of the exit wand should be connected into the “#12” terminal. The GREEN wire of the exit wand should be connected into the “#13”...
  • Page 13: How To Program Or Erase The Remote

    LED light is off. Now all remote codes have been erased.  NOTE: Max. 8 remotes can be programmed for the opener. An External Receiver (optional) allows up to 250pcs remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is available at TOPENS Store.
  • Page 14: How To Use The Remote To Operate Your Gate Opener

    Each remote has four buttons, from top to bottom are separately A, B, C and D. You may use this remote to operate as many as 4 sets TOPENS swing gate openers or 1 set TOPENS sliding gate opener and 2 sets TOPENS swing gate openers.
  • Page 15: Troubleshooting

    Troubleshooting Have a multi-meter to check voltage and continuity. Use caution when checking high voltage terminals. Symptom Possible Solution(s) 1. Check the input voltage of the control board. It should be local AC electricity. The opener does not 2. The power switch is OFF. Make sure the power switch is ON. run.
  • Page 16: Maintenance

    The motor runs but Ensure the clutch for emergency release is adjusted properly and is not gate doesn’t slipping. move. Maintenance Every six months check the following items for proper operation of the unit. * Lubricate shafts and sprockets. * Keep opener clean at all times. * Check and tighten anchors bolts.
  • Page 17 TOPENS Website http://www.topenstool.com/ Any question, please do not hesitate to contact us: E-mail: support@topenstool.com Kindly include your Product Model, Purchasing Date & Site, Order #, and your contact information. All your concerns will be replied within 24 hours. Tel: +86 (571) 8908 0213 (China)
