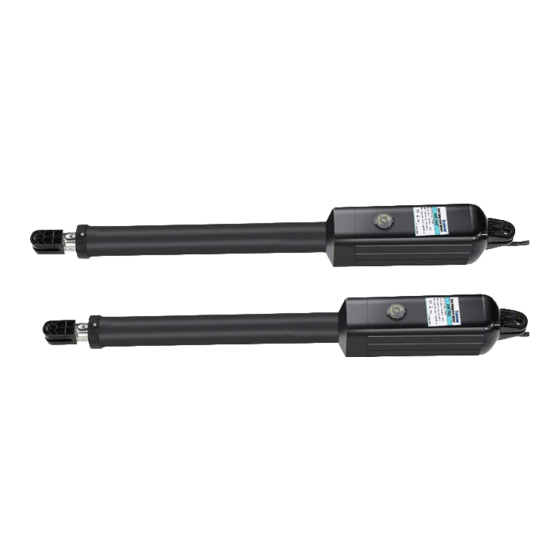

Dual Swing Gate Opener
User's Manual
Model:
KD702
TOPENS Website
http://www.topenstool.com/
★ Please read and follow all warnings, precautions and instructions before
installation and use.
★ Never connect the solar panel to the control board directly to charge the battery.
★ Periodic checks of the opener are required to ensure safe operation.
★ Save this manual.
VER 20a
C030407

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD702 and is the answer not in the manual?

Questions and answers

Related Manuals for Topens KD702

Summary of Contents for Topens KD702

  • Page 1 Dual Swing Gate Opener User’s Manual Model: KD702 TOPENS Website http://www.topenstool.com/ ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Never connect the solar panel to the control board directly to charge the battery.

  • Page 2: Table Of Contents

    Safety Installation Information ........................1 KD702 Parts List ............................2 Accessories Parts (Included in some models, refers to the actual package) ............3 Optional Accessories Parts List (Available at TOPENS Store) ................3 Tools Needed: ............................... 3 Technical Specifications & Features ......................4 Installation Overview .............................

  • Page 3: Safety Installation Information

    use on any pedestrian gate. Pedestrians must be Safety Installation Information supplied with a separate pedestrian access. 1. READ and FOLLOW all instruction. For an installation utilizing non-contact sensors The gate opener is intended for use with Class I (safety sensors), see product manual on the vehicular swing gates.

  • Page 4: Kd702 Parts List

    13. To AVOID damaging gas, power, or other SAVE INSTRUCTION. underground utility lines, contact underground utility 14. Do not permit children to play on or around the locating companies BEFORE digging. gate and keep all controls out of their reach. KD702 Parts List...

  • Page 5: Accessories Parts (Included In Some Models, Refers To The Actual Package)

    Accessories Parts (Included in some models, refers to the actual package) Optional Accessories Parts List (Available at TOPENS Store) Tools Needed: ·Power Drill ·Tape Measure ·Open End Wrenches — 14# &17# or Adjustable Wrenches ·Wire Strippers ·C-Clamps — small, medium, and large ·Level...

  • Page 6: Technical Specifications & Features

    Technical Specifications & Features Specifications Model: KD702 Input: 110V~120V/60Hz or 220~240V/50Hz Motor voltage: 24VDC 2×30W Power: Current: 1.5A Actuator speed: 16mm/s（0.6 in/s） Max. actuator travel: 385mm（15.2 in） -20℃~ +50℃ (-4°F to 122°F) Ambient Temperature: Protection class: IP44 Features: adjustable for multiple safety protection (1-50 ·Soft start and soft stop...

  • Page 7: Installation Overview

    Installation Overview Important: The second gate opener cable should be put into the PVC conduit (not provided) which is buried underground .This protects the cable from lawn mowers and string trimmers. Rev 20a...

  • Page 8: Preparation For Installation

    Preparation for Installation There are two installation types for the gate opener, Pull-to-Open and Push-to-Open. In the Push-to-Open installation, gate opens out from the property. A Push-To-Open Bracket (PSO part) is required to be used for each gate. NOTE: Ensure the gate does not open into public areas. The gate opener is mounted to the gate and to the gate post.
  • Page 9 Push-to-Open Installation — Gate in Closed position (Moving-Rod is retracted) 1. Insert the M10 x 30 bolt through the center hole of the post bracket and post pivot bracket as shown. Place a ￠10 washer , ￠10 lock washer and M10 nut on the bottom of the bolt and hand tighten. 2.
  • Page 10 5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener and the Post Pivot Bracket are not binding in both the gate-open and gate-closed positions. If there is not at least 2.5cm of clearance or if the opener and the Post Pivot Bracket are binding, rotate the Post Pivot Bracket and/or move the Post Bracket Assembly to obtain the minimum clearance and eliminate the binding.
  • Page 11 6. Sign the bolt-hole point on the gate bracket and gate. Do this by placing a punch or a sign in the middle of each bolt slot on the post bracket assemblies and the gate bracket. It allows slight adjustments to the post bracket. Then remove the post bracket and gate bracket by taking off the C-clamps.

  • Page 12: Mounting The Control Box

    12. Open the release hole plug on the top of the gate opener, insert the release key, and turn the key 90° counterclockwise. This restores normal operation. Mounting the Control Box Step 1 To install the control box use the deck screws (not provided). Even though the control box is waterproof designed, for safety reason and a longer service life, it is recommended to install the control box inside a secure surface and at least 100 cm (40 inches)

  • Page 13: Connection Of Power Supply

    sunlight. Step 3 Insert the cable of the second gate opener and Warning Light cables into the control box through middle strain relief. Then repeat step 2. Step 4 Insert the cables of the optional parts into the control box through the right strain relief. Then repeat step 2. Connection of Power Supply WARNING: NEVER connect the gate opener to the power supply before all the installations have been done.

  • Page 15: How To Program Or Erase The Remote

    Motor connection for PUSH-TO-OPEN The motors’ power wires and limit wires connection by “Push to Open” is different from the connection by “Pull to Open”. So motor 1 and motor 2 wires should be connected to the control box as the instruction on the right. Black wire should be inserted into the Motor+ terminal.

  • Page 16: How To Use The Remote To Operate Your Gate Opener

    All of TOPENS sliding gate opener have midway mode. Button B is designed to realize midway function (refer to more details in our TOPENS sliding gate opener manual). So it is must program button A with sliding gate opener, while you may program either C button or D button with TOPENS swing gate opener.

  • Page 17: Setting Of The Control Board

    NOTE: Every step for pressing button during program must be finished within 1 second to ensure successful programming. Setting of the Control Board WARNING: Ensure the gate opener is Power Off when you make any adjustment of the gate opener. Keep away from the path of the gate during you set the gate opener system in case of the unexpected gate moving.
  • Page 18 Press the “FUNC” button to store the data when the open interval is set. The Digital Display will indicate “P4”. Now Open Interval Set is finished. 5. Set the Close Interval between Master and Slave Gate When the Digital Display indicates “P4”, the gate opener is on the Close Interval between Master/Slave Gate Setting.
  • Page 19 even if the limit switch is invalid or the clutch is detached. 7-a. Adjust the MRT of MOTOR1 When the Digital Display indicates “P7”, you can adjust the MRT of MOTOR1. The MRT of MOTOR1 is adjusted by pressing “INC” and “DEC” buttons respectively. The Digital Display will show “01”-“50”...

  • Page 20: Indicate Illustration On The Digital Display When Gate Opener Is Running

    Similarly, the Soft Stop Period (SPP) can be shortened through extending the Fast Running Period (FPP). E.g. When the Soft Start Period (STP) is set at 3 sec, and the GRP is 23 sec, how can we get 4 sec of Soft Stop Period (SPP) to meet the requirement? The answer is clear, i.e.

  • Page 21: Maintenance

    With the gate in its opened position, press and release the remote control, the gate will move to the programmed closing position and stop. While the gate is moving, press and release the remote control, the gate will stop moving immediately. The next command from the remote will reverse the gate direction and the gate will stop at its programmed opening/closing position.
  • Page 22 2. Force set too low. Adjust FORCE setting until gate completes a full open/close cycle without stop. The force setting may need to be adjusted in cold weather, as the gate will not move freely. 3. Check if the MRT period is too short. ◆Gate opens but does not close.

  • Page 23: Quick-Setting Guide

    Quick-Setting Guide...
  • Page 27 TOPENS Website http://www.topenstool.com/ Any question, please do not hesitate to contact us: E-mail: support@topenstool.com Kindly include your Product Model, Purchasing Date & Site, Order #, and your contact information. All your concerns will be replied within 24 hours. Tel: +86 (571) 8908 0213 (China)
