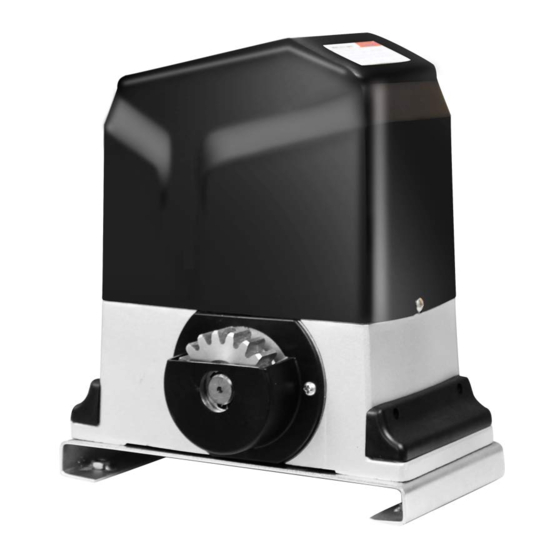

- Page 1 Sliding Gate Opener User’s Manual Model: RK1200(T) TOPENS Website http://www.topenstool.com/ ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Periodic checks of the opener are required to ensure safe operation. ★ Save this manual.
-
Page 2: Table Of Contents
Parts List ………………………………………..…………………………………..…………………………. 4 Extra Parts for RK1200T……………………………………………………………...……………………………4 Accessories Parts (Included in some models, refers to the actual package)……………………………………4 Optional Accessories Parts List (Available at TOPENS Store)…………......………………..… 5 Technical Specifications & Feature ………………………………………..…………………………………..5 Installation Overview ………………………………………..…………………………………..……………. 6 Installation of the Opener ……………………………………..…………………………………..………. 6 Manual Operation ………………………………………..…………………………………..……………….. -
Page 3: General Safety
Thank you for purchasing our sliding gate opener. We are sure that the products will be greatly satisfying as soon as you start to use it. The product is supplied with a user’s manual which encloses installation and safety precautions. These should be read carefully before installation and operation as they provide important information about safety, installation, operation and maintenance. -
Page 4: Preparation For Installation
• Do not allow persons or children to remain in the automation operation area. • Keep radio control or other control devices out of children’s reach, in order to avoid unintentional automation activation. • The user must avoid any attempt to carry out work or repair on the automation system, and always request the assistance of qualified personnel. -
Page 5: Parts List
Parts List Extra Parts for RK1200T Accessories Parts (Included in some models, refers to the actual package) Rev 20a... -
Page 6: Optional Accessories Parts List (Available At Topens Store)
Optional Accessories Parts List (Available at TOPENS Store) Technical Specifications & Features Specifications RK1200(T) Power supply: 110V~120V/60Hz or 220~240V/50Hz Motor voltage: 120VAC or 230VAC Absorbed power: 550W Gate moving speed: 20 cm/s (8 in/s) Max gate weight: 1500kg (3400lbs) Max torque:... -
Page 7: Installation Overview
·Stop in case of obstruction during gate opening ·Reverse in case of obstruction during gate closing Rev 20a ·Built in adjustable auto-closing (0, 30, 60, 90 seconds) ·Built in max. Motor Running Time (MRT) for multiple safety protection (90 seconds) ·Reliable electromagnetism limit for easy adjustment ·Can be equipped with wide range accessories Installation Overview... -
Page 8: Manual Operation
pad to support the base plate of opener in order to maintain proper stability. The installation proceeds are as follows: 1.Dig a hole for a concrete pad which should be approximately 50 x 30 x 35cm (20〞x 12〞x 14〞). It may protrude 10 cm (4”) above ground and 25 cm (10”) in depth underground. - Page 9 B. Fit the galvanized steel rack 1. Start with gate in closed position 2. There are four sections of steel rack which is one meter length, each section for standard package. (you can order extra rack from dealer if necessary) 3.
-
Page 10: Install The Magnets For Limit Switches
Important: * Check that the rack teeth must engage the gear teeth throughout their full thickness. If not, adjust the position of the opener or/and place a few shims between the rack and gate. * Manually slide the gate leaf to ensure the rack is proper on the gear of opener, weld the second nut. * Repeat same steps of first rack section to install the rest rack sections until proper length is reached. -
Page 11: Connecting Of The Control Board
Connecting of the Control Board WARNING：Before making any electrical wire connection or/and setting the control board, make sure that the power switch is OFF. -
Page 12: Setting Of The Control Board
1. Motor The BLACK wire of the motor should be connected into the “6” terminal. The RED wire of the motor should be connected into the “7” terminal. The YELLOW wire of the motor should be connected into the “8” terminal. 2. - Page 13 1. DIP Switches The DIP switches are used to set the running time of the motor in midway mode, auto close time of the gate opener and fast change the open/close direction which is determined by the position of the gate opener installed. DIP Switch #1–#2: Running time of the motor in Midway Mode This mode enables user to drive the vehicle through the gate quickly when the gate opens to certain width.
-
Page 14: How To Program Or Erase The Remote
LED light is off. Now all remote codes have been erased. NOTE: Max. 8 remotes can be programmed for the opener. An External Receiver (optional) allows up to 250pcs remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is available at TOPENS Store. -
Page 15: How To Use The Remote To Operate The Opener
All of TOPENS sliding gate opener have midway mode. Button B is designed to realize midway function (refer to more details in our TOPENS sliding gate opener manual). So it is must program button A with sliding gate opener, while you may program either C button or D button with TOPENS swing gate opener. -
Page 16: Troubleshooting
Troubleshooting Have a multimeter to check voltage and continuity. Use caution when checking high voltage terminals. Symptom Possible Solution(s) 1. Check the input voltage of the control board. It should be local AC electricity. The opener does not 2. The power switch is OFF. Make sure the power switch is ON. run. -
Page 17: Maintenance
then try it again. Replace the limit switch if the motor could run in both directions. 3. Check the control board. Replace the control board if necessary. The motor runs but Ensure the clutch for emergency release is adjusted properly and is not gate doesn’t slipping. - Page 18 TOPENS Website http://www.topenstool.com/ Any question, please do not hesitate to contact us: E-mail: support@topenstool.com Kindly include your Product Model, Purchasing Date & Site, Order #, and your contact information. All your concerns will be replied within 24 hours. Tel: +86 (571) 8908 0213 (China)
