Case Feeder Installation

During the initial assembly leave all screws loose. Wait until the entire assembly is together before doing
the final tightening. Install the Case Feeder Mounting Pole Brackets (2X) to the Evolution Main Unit.
Assemble the Case Feed Pole Lower to the Case Feeder Mounting Pole Brackets with the Screws and
Spacers as shown in Figure 5. Assemble the Case Feed Pole Upper to Case Feed Pole Lower using Case
Feed Pole Connector. Tighten all screws.
Case Feed Pole Connector
Item 32
Item 27
Item 33
MARK 7® RELOADING EVOLUTION USER MANUAL VERSION 2.0, COPYRIGHT 2020
ALL RIGHTS RESERVED
Upper Pole
Item 7 (8X)
Item 6 (8X) Washer (4X)
Item 30 (4X)
Item 28

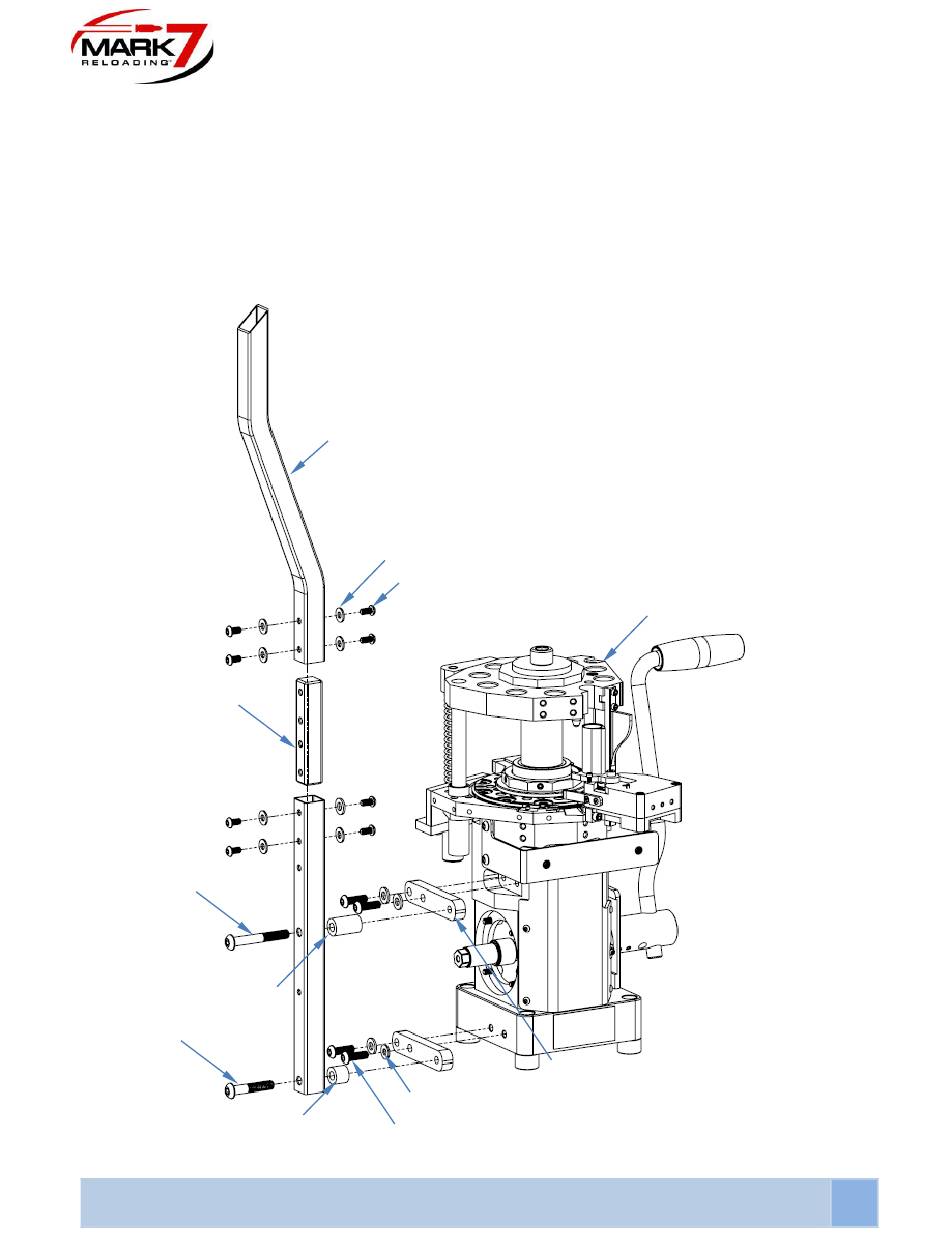

Figure 5: Case Feeder Pole Mounting Hardware
Case Feed Mounting Pole Bracket (2X)
Item 29 (4X)
Evolution Main Unit
