Installing Case Feeder Spring Flipper Assy - Mark 7 Evolution User Manual

Case Feeder Funnel Shim Adjustment: At the opening of the Case Funnel there is a Case Feeder Funnel
Shim that needs to be adjusted to the length of the case to prevent jams in the funnel. For standard
pistol cases keep the opening small (shim to the right.) For tall pistol or rifle move the shim to the left for
a larger opening.
Case Feeder Funnel Shim
)

Installing Case Feeder Spring Flipper Assy

Mount the Case Feeder Spring Flipper Assy maintaining a 30 degrees angle in the approximate position
shown below. This prevents cases from getting picked up on their side and clogging the case funnel or
entering the funnel upside-down. Note: do not over-tighten the case feed flipper mount.
Instead of the Case Feeder Spring Flipper Assy you may need to install the Case Feeder Ramp. It is caliber
dependent and you choose which option works best for you.
MARK 7® RELOADING EVOLUTION USER MANUAL VERSION 2.0, COPYRIGHT 2020
ALL RIGHTS RESERVED

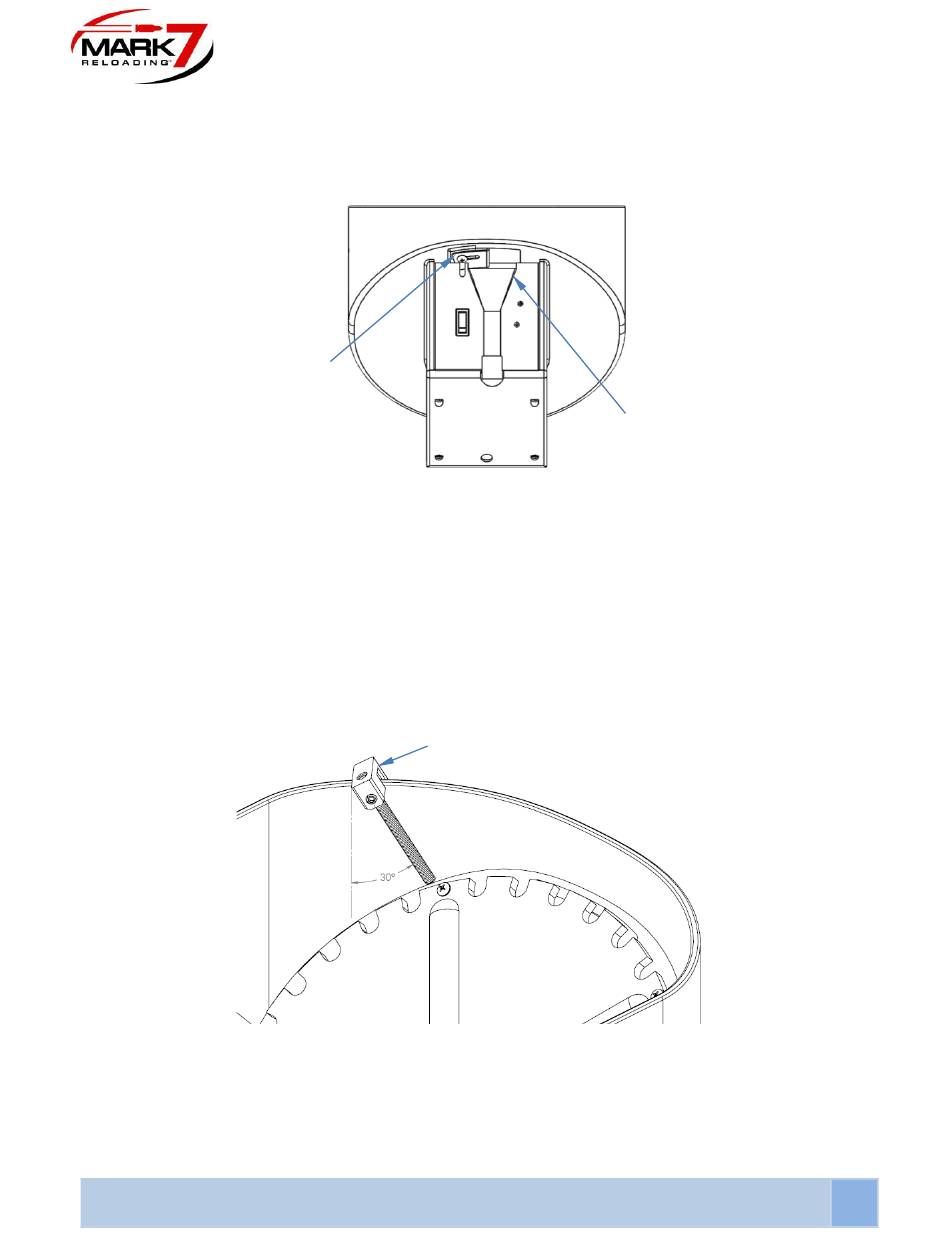

Figure 7: Case Feeder with Spring Case Feeder Flipper Installed
Case Feeder Spring Flipper Assy
Case Funnel
)
